Explore our top-tier CSF and CSG series zero-backlash high-precision gearboxes, designed for rigorous industrial robotic integration.
Founded in Shenzhen, China, Boxtop Electromechanical Equipment (shenzhen) Co., Ltd. has grown into a premier, verified manufacturer integrating R&D, advanced production, and global sales. For over two decades, we have dedicated ourselves to one mission: engineering high-precision, heavy-duty transmission and motor solutions that power modern industrial automation.
Unlike standard component suppliers, Boxtop offers a comprehensive product ecosystem. We specialize in precision planetary gearboxes, worm gear reducers, and helical gear units, perfectly integrated with our high-torque DC motors, AC motors, and brushless alternatives. By optimizing the synergy between motor and speed reducer, we provide global OEM buyers with ready-to-install micro-drives and industrial power systems that maximize efficiency and lifespan.
Operating from our state-of-the-art facility equipped with precision German and Japanese gear-hobbing technology (such as KOEPFER and HAMMI), we enforce rigorous quality control at every stage. From rapid engineering support to mass factory production, Boxtop is the trusted China partner driving reliability for customers in the US, Europe, Russia, Southeast Asia.
Understanding the mechanical engineering differences, materials science, and structural architecture of high-torque strain wave gearing.

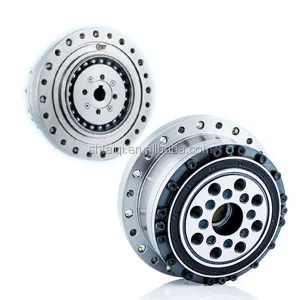

Harmonic drive gearboxes (also known as strain wave gearboxes) rely on a unique elastomeric mechanical principle to achieve large reduction ratios, high torque density, and zero backlash in incredibly small footprints. The system consists of three main components: the Wave Generator (an elliptical ball-bearing assembly), the Flexspline (a thin-walled, flexible steel cup with external teeth), and the Circular Spline (a rigid internal-geared outer ring).
While the CSF Series represents the standard, high-reliability design ideal for general industrial applications, the CSG Series is structurally engineered for high-performance applications. By optimizing the inner tooth profile and employing advanced metallurgical formulas for the flexspline alloy, the CSG series achieves a 30% increase in torque capacity and a 43% extension in fatigue limit compared to standard CSF units of equivalent size.
| Feature / Parameter | CSF Series (Standard) | CSG Series (High Torque) | Engineering Advantage |
|---|---|---|---|
| Backlash Limits | Zero Backlash (elastic pre-load) | Zero Backlash (optimized profile) | Perfect positioning precision for multi-axis CNC & robots. |
| Torque Density | Standard Industrial Rating | +30% Higher Torque Output | Allows smaller, lighter joints in compact robotic elbows. |
| Component Design | Lightweight & ultra-slim versions | Heavy-duty rigid bearings integrated | Handles large external axial and radial overturning moments. |
| Typical Gear Ratios | 30:1, 50:1, 80:1, 100:1, 160:1 | 50:1, 80:1, 100:1, 120:1, 160:1 | High torque reduction ratios in a single mechanical stage. |
| Main Structure Styles | CSF-2UH (Component Unit), CSF-2UH (Integrated) | CSG-2UH (Component Unit), CSG-2XP | Enables custom integrations or plug-and-play flange designs. |
How modern automation OEMs mitigate supply chain vulnerability and optimize Total Cost of Ownership (TCO).
Global automation buyers face long lead times and high premiums for precision mechanical components. Delay in shipping custom gearboxes stalls entire robotic production lines. Boxtop addresses these pain points with shortened custom prototype development cycles and standard CSF/CSG drop-in replacements.
From articulated surgical robots requiring micrometric positional feedback to large 5-axis CNC indexing tables handling dynamic payloads, CSF/CSG reducers provide steady angular transmission. Their low start-up torque and zero backlash make them critical in high-speed pick-and-place packaging systems.
Our processes are strictly audited to conform with ISO 9001 and CE frameworks. We source high-grade vacuum-degassed structural alloys (e.g., 40CrNiMoA) and utilize precision coordinate measuring machine (CMM) systems to guarantee mechanical reliability and predictable fatigue wear cycles.
Inside our advanced manufacturing plant: precision CNC lathing, automated gear-hobbing, heat treatment, and diagnostic labs.
Navigating structural improvements, light alloy materials, and integrated sensor nodes for smart industrial automation.
The field of high-precision motion control is shifting from simple mechanical components towards smart, integrated drive systems. In response, Boxtop has established a roadmap focused on three key areas:
How we support our partners with technical integration and compliant supply chains across global markets.
As an established exporter, Boxtop Electromechanical Equipment supports engineering and procurement teams worldwide. We recognize that mechanical integration requires more than just shipping a component; it requires close collaborative alignment on tolerances, bearing preload levels, and lubrication options for various operating temperatures.
Our components comply with CE, RoHS, and ISO9001:2015 frameworks. This ensures smooth customs clearance and integration into larger, certified automated assemblies. Additionally, we provide comprehensive 2D and 3D CAD modeling support. This helps design engineers run simulation analyses prior to ordering prototypes, ensuring fitment and performance in the field.
Expand your system capability with our specialized planetary gearboxes, multi-axis joints, and custom ratio reducers.
Commonly asked technical questions regarding selection, operation, maintenance, and sourcing of CSF and CSG gearboxes.
