Product Description

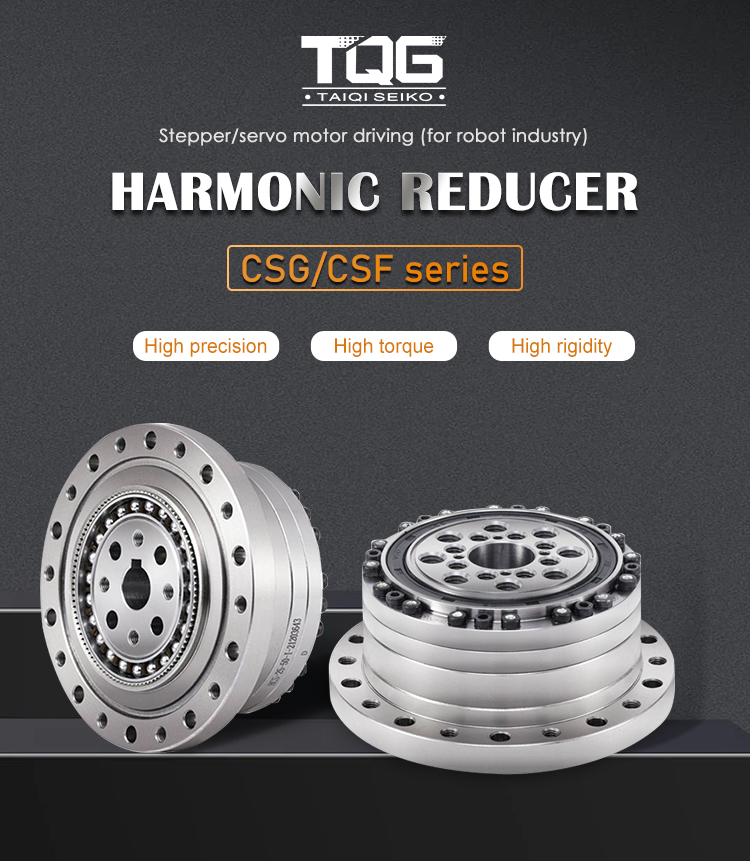

Harmonic Drive

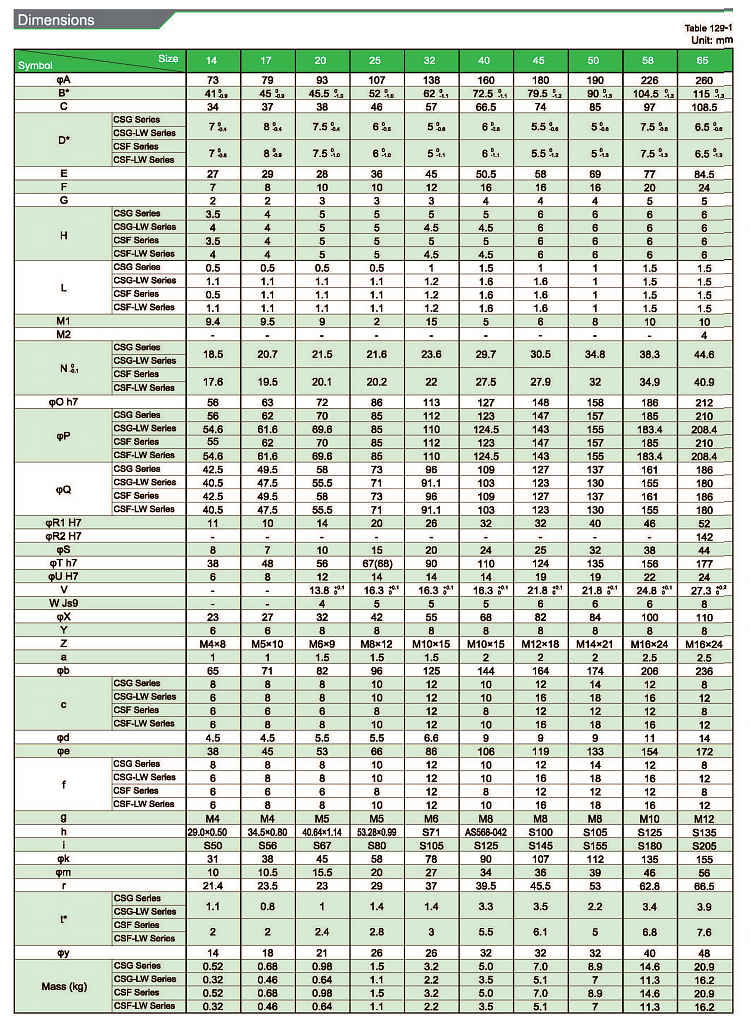

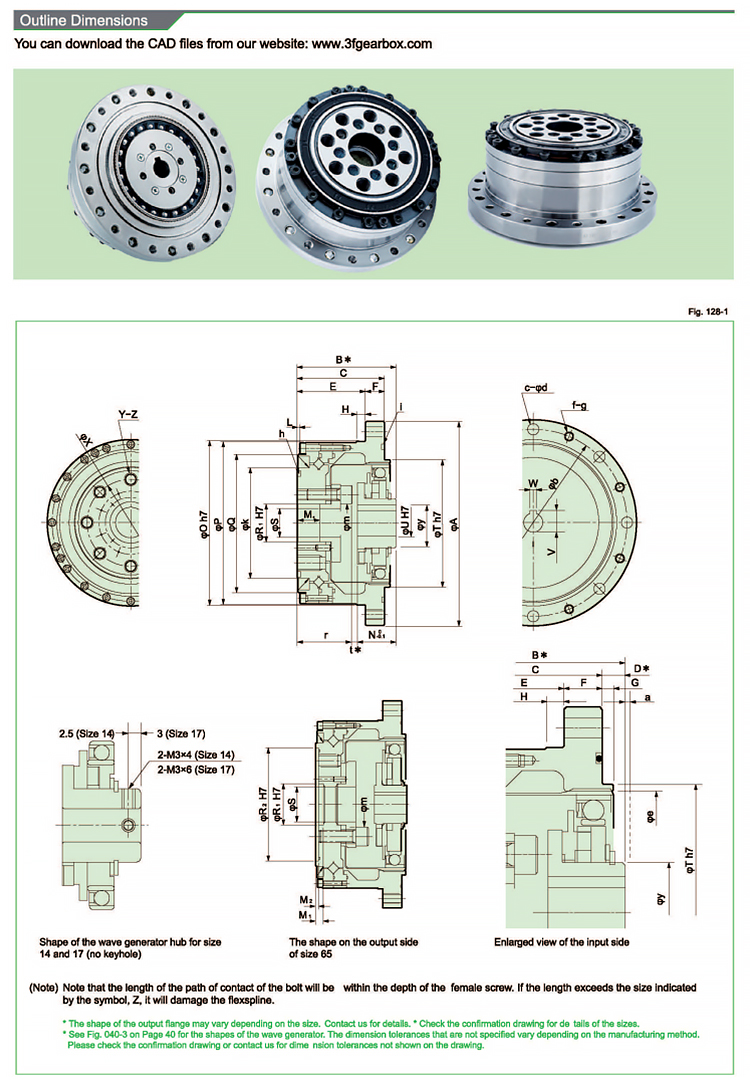

Specification Diagram

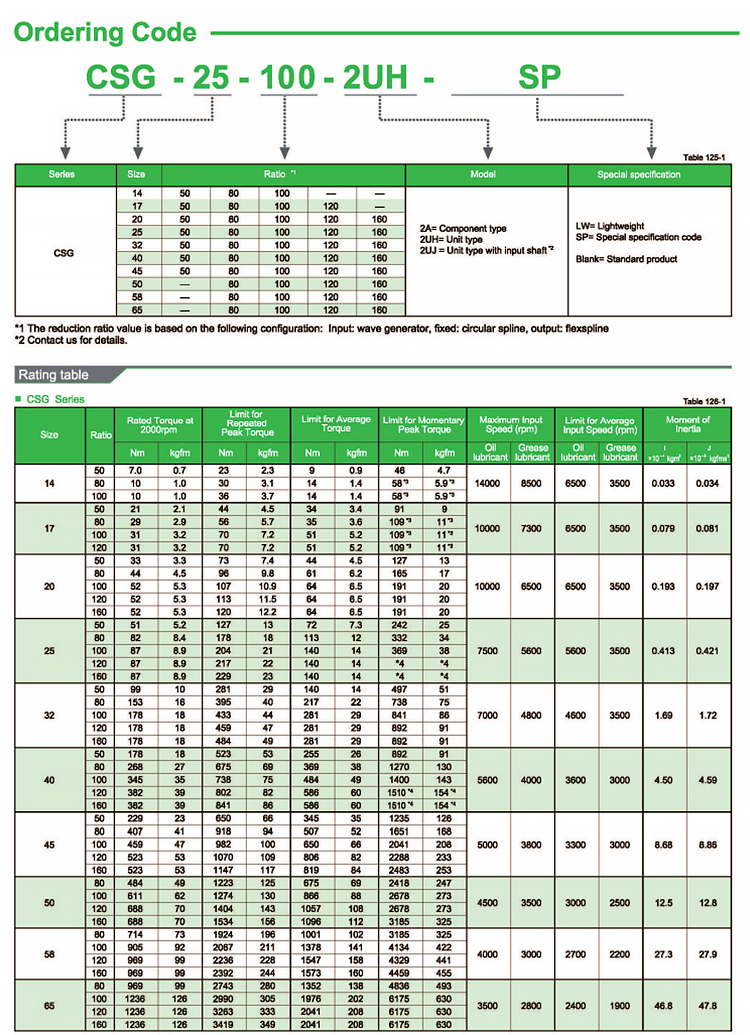

Product Specifications
Model CSG14, CSG17, CSG20, CSG25, CSG32, CSG40, CSG45, CSG50, CSG58, CSG65
Matching Motor Stepper motor, servo motor, BLDC motor
Mounting Position Any Direction
Efficiency ≥95%
Technical Characteristics

Our technical team realized the tooth shape optimization design through big data theory modeling, simulation optimization, and performance verification. We have broken the constraints of experience accumulation and correction in transmission design.

We are constantly seeking innovation in technical performance, product structure, processing technology, and materials for harmonic drive. Through long-term technical accumulation, our harmonic drive has reached international levels in product accuracy, longevity, stability, and noise control.

⚙️ High Efficiency Model 30-120, efficiency 75~90% at 100~3000 rpm
🔇 Low Noise Less than 50dB at rated speed and load
⏳ Long Life Service life up to 10,000 hours
🎯 High Precision Accuracy less than 20 arc seconds
Core Advantages
  • 🔹 Small size and light weight: Optimized for compact industrial designs.
  • 🔹 High precision: Positioning accuracy <1 arcmin, gap <10 seconds.
  • 🔹 Large transmission ratio: Level 1 transmission ratio ranges from 30-120:1.
  • 🔹 High load capacity: Stable performance under significant stress.

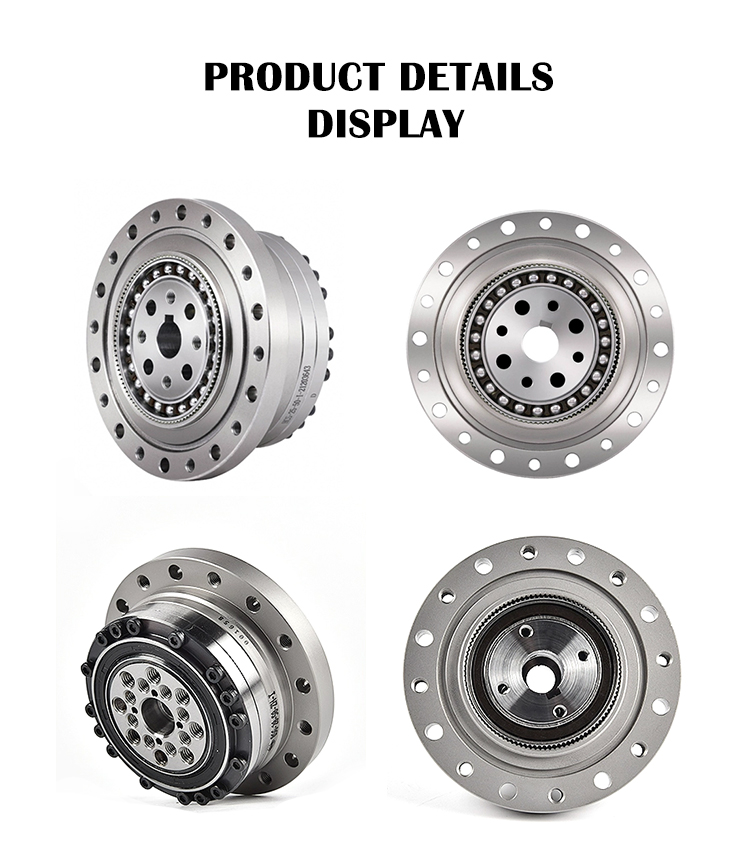

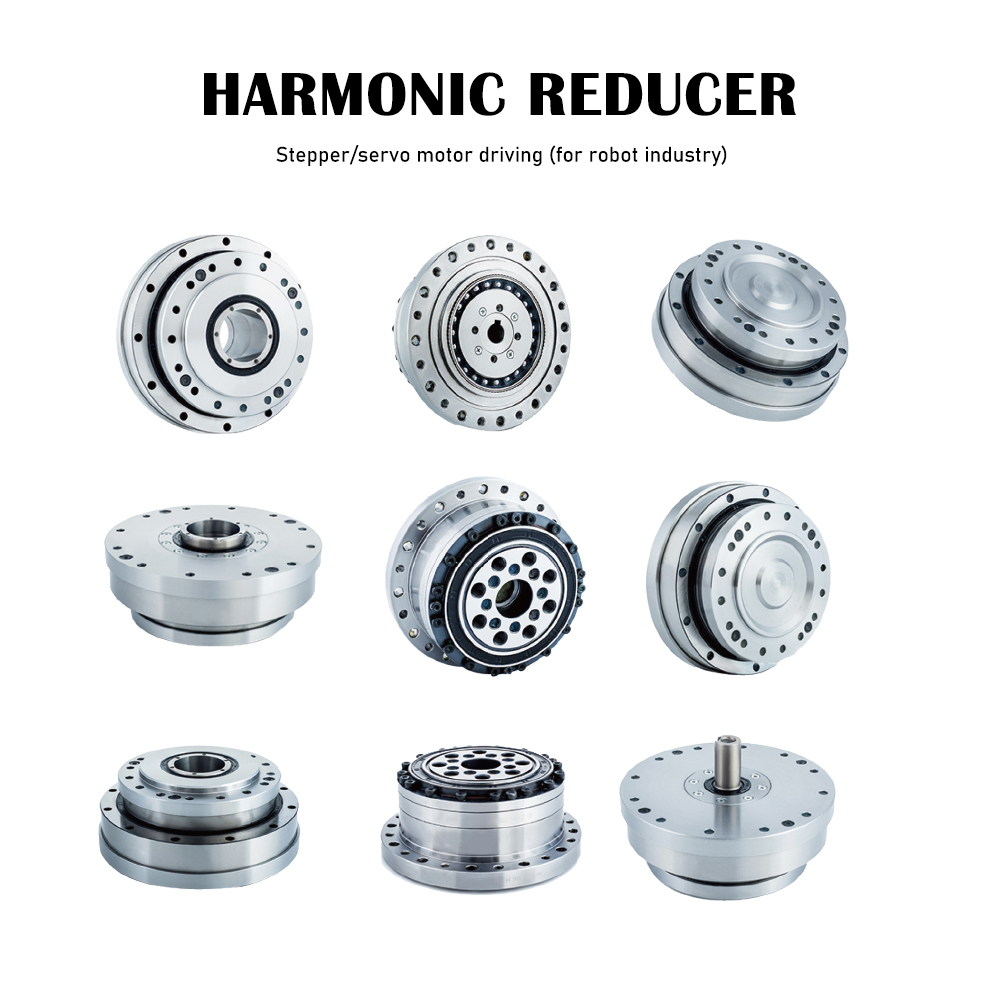

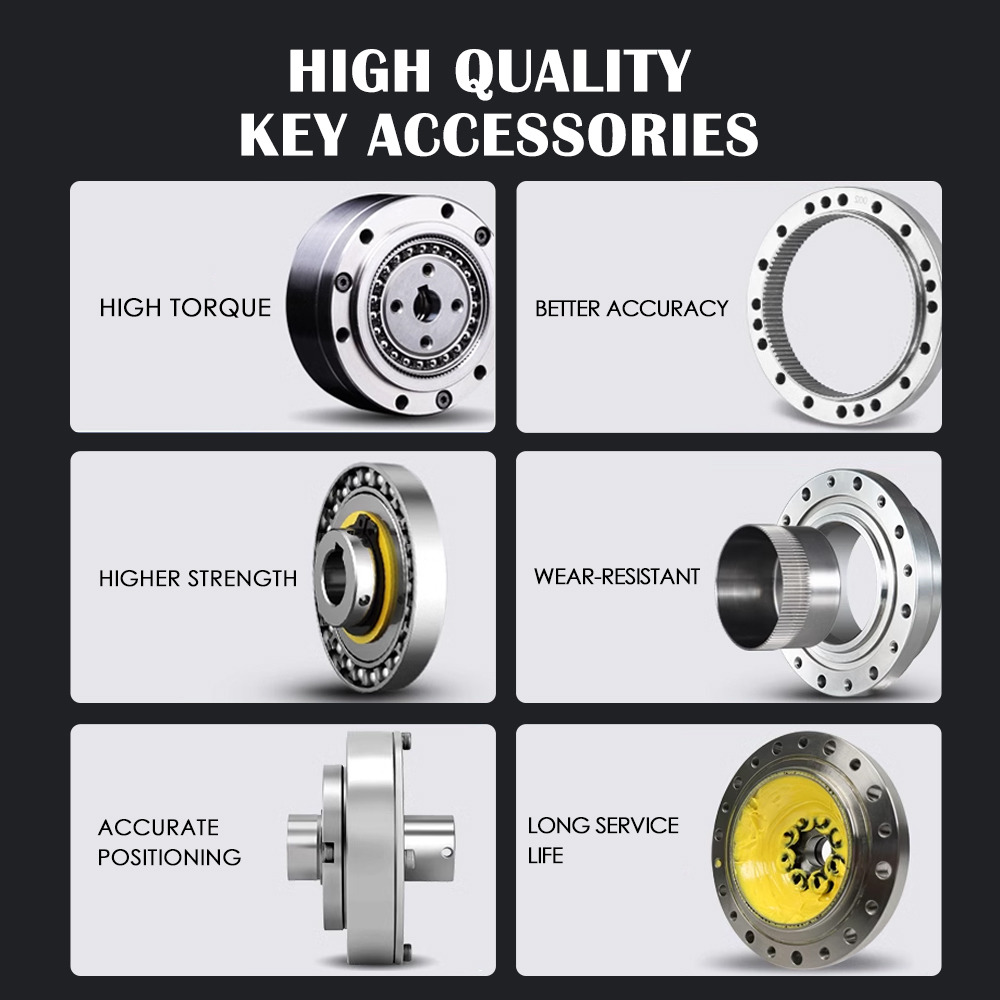

Product Display
Frequently Asked Questions
Q: Are you a manufacturer or trader? A: We are a manufacturer. Sincerely welcome to visit our facilities, and we can conduct video conferences for your convenience.
Q: What are your main products? A: We currently supply planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo and stepper motors, electric cylinders, and couplings.
Q: How to select a suitable gearbox? A: Please provide motor details or drawings along with working conditions, load, output torque, speed, and backlash requirements. We will guide you through the selection process step by step.
Q: Can I get 3D and 2D drawings? A: Sure, we provide standard drawings. The input size of the gearbox can also be customized according to different motor specifications.
Q: Do you offer individual design services? A: Yes, we can design products individually for our customers, though this may involve mold development costs and design charges.
Q: What is your lead time? A: We maintain stock for regular standard products. If out of stock, it typically takes 15-20 days. Customized products may require a slightly longer timeframe.
