An authoritative analysis on 90-degree right angle transmission systems and synchronized multi-jack lift design for high-load industrial installations.

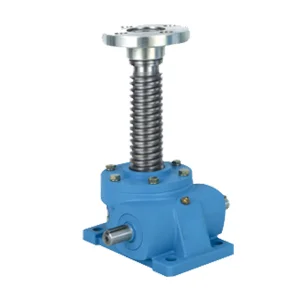

In modern precision heavy-duty mechanical engineering, the transmission of torque through orthogonal planes is a crucial design challenge. The 90 Degree Right Angle Gearbox RB Synchronous Screw Jack represents the peak of integration between bevel/worm gear speed reduction and linear translation. The RB series screw jacks employ high-strength trapezoidal or ball screw spindles, paired with precision-cut internal gear teeth. This layout redirects input torque by exactly 90 degrees while converting rotary speed into controlled axial push or pull movements.
These synchronous units are manufactured using custom alloy materials, high-density spheroidal graphite cast iron housings, and premium grade thrust bearings. They are built to prevent system deflection even under maximum load scenarios. By leveraging either worm gear pairings (for self-locking and slow-speed capabilities) or bevel helical gears (for high-efficiency continuous runs), the RB system achieves steady mechanical movement across multi-jack systems.
The core advantage of the RB series is its ability to operate in highly synchronized multi-unit systems (such as H-type, U-type, or T-type configurations). When a large surface, such as an industrial drying platform, steel plate lifting table, or solar tracker assembly, needs to be lifted, even a slight variation in leveling can lead to mechanical binding.
By routing the drive shafts through central 90-degree bevel gearboxes (T-gearboxes) and connecting them to multiple RB synchronous screw jacks via torsionally rigid coupling shafts, mechanical synchronization is perfectly maintained. Because the system is locked mechanically, it is unaffected by variables that cause issues in hydraulic circuits, such as thermal viscosity drift, valve delay, or pressure fluctuations.
| Feature / Parameter | Worm Gear Design (RB-W) | Bevel Gear Design (RB-B) | Key Engineering Benefit |
|---|---|---|---|
| Mechanical Efficiency | 25% - 40% (Self-Locking) | 85% - 95% (High Efficiency) | Determines motor power rating requirements and system thermal profile. |
| Backlash Profile | < 0.15mm (Standard) | < 0.05mm (Precision Ground) | Crucial for precision positioning loops and reversing loads. |
| Maximum Duty Cycle | 20% - 30% per hour | Up to 100% (Continuous run) | Prevents overheating and keeps wear rates within target specs. |
| Synchronization Limit | Up to 12 Jacks mechanically linked | Up to 32 Jacks mechanical link | Allows broad distribution of structural lifting weight without PLC correction. |
Global B2B procurement teams from North America, Germany, South Korea, and Southeast Asia are increasingly standardizing their specifications to include 90-degree right angle screw jacks with built-in planetary or helical reducers. Sourcing these heavy mechanical assemblies requires a thorough review of the exporter's manufacturing capabilities.
Quality control at the raw material stage is essential. Exporters must provide chemical composition analyses for all gear alloys, certified heat treatment profiles, and coordinate measuring machine (CMM) certificates for gear geometry. Relying on simple visual inspections is no longer sufficient. Precision exporters like Boxtop Electromechanical Equipment rely on advanced German gear hobbing machinery to maintain tolerances down to the micron level. This ensures that every exported unit is highly reliable, has low backlash, and operates quietly.
Deep dive into our 20+ years of high-precision motion control engineering, factory processing lines, and quality assurance testing based in Shenzhen, China.
About Boxtop: 20+ Years of Excellence in Precision Motion Control
Founded in Shenzhen, China, Boxtop Electromechanical Equipment (shenzhen) Co., Ltd. has grown into a premier, verified manufacturer integrating R&D, advanced production, and global sales. For over two decades, we have dedicated ourselves to one mission: engineering high-precision, heavy-duty transmission and motor solutions that power modern industrial automation.
Unlike standard component suppliers, Boxtop offers a comprehensive product ecosystem. We specialize in precision planetary gearboxes, worm gear reducers, and helical gear units, perfectly integrated with our high-torque DC motors, AC motors, and brushless alternatives. By optimizing the synergy between motor and speed reducer, we provide global OEM buyers with ready-to-install micro-drives and industrial power systems that maximize efficiency and lifespan.
Operating from our state-of-the-art facility equipped with precision German and Japanese gear-hobbing technology (such as KOEPFER and HAMMI), we enforce rigorous quality control at every stage. From rapid engineering support to mass factory production, Boxtop is the trusted China partner driving reliability for customers in the US, Europe, Russia, Southeast Asia,
The integration of 90-degree right angle gearboxes within linear lifters requires precise control of angular backlash and shaft alignment. Helical-bevel gears are preferred over simple worm gear pairings for highly dynamic systems due to their superior thermal performance and lower friction losses.
For applications in hazardous environments, such as chemical plants or paint-spraying booths, the drive motors must meet ATEX or explosion-proof certifications. In these setups, synchronous screw jacks are equipped with stainless steel protective sleeves, dynamic seals, and custom bellows to keep out dust, moisture, and chemical vapor.
Additionally, using multi-jack mechanical links reduces the load on the drive motor, extending the system's operational lifespan. By distributing the load across multiple lift points, structural stresses are minimized, reducing the risk of fatigue failures in high-load setups.
Industrial mechanical systems are evolving rapidly with the introduction of smart factory concepts and Industry 4.0. The integration of electronic sensors into mechanical screw jacks is the next major phase of development. These smart sensors allow real-time monitoring of operational parameters:
By combining mechanical synchronization with smart sensors, industrial systems can shift from scheduled maintenance to predictive maintenance, minimizing unplanned downtime.
Detailed engineering answers regarding the installation, capacity calculations, and synchronization setups of RB Screw Jacks and Right Angle Gearboxes.
To calculate the total torque required at the main input shaft, you must sum the required lifting torque of each individual RB screw jack and divide it by the efficiency of the connecting 90-degree right-angle bevel gearboxes. The formula is: T_total = ( (W * p) / (2 * pi * eta_jack) ) * (1 / eta_gearboxes), where W represents the load on each jack, p is the pitch of the screw, eta_jack is the mechanical efficiency of the screw jack (typically 30% for worm gear and trapezoidal screw setups), and eta_gearboxes is the efficiency of the intermediate gearboxes and couplings.
In a translating screw jack design, the screw spindle moves linearly through the gearbox housing. The housing must be rigidly mounted, and the screw is prevented from rotating. In a rotating screw design, the screw remains fixed axially but rotates. A traveling bronze nut runs up and down the screw spindle to move the load. Translating designs are easier to seal and protect, while rotating designs are often preferred for long strokes to reduce the risk of structural buckling.
Worm gear designs generate friction heat because of the sliding contact between the worm shaft and the worm wheel. This heat must dissipate through the housing. If the unit runs continuously, the internal oil temperature can exceed 95°C, causing lubricant breakdown and rapid wear. For high-duty cycle applications (above 30% per hour), we recommend using bevel-gear-driven screw jacks or integrating active external cooling systems and synthetic polyalphaolefin (PAO) lubricants.
Backlash can be minimized by using preloaded ball screw designs (which reduce axial play to less than 0.02mm) and choosing precision-ground spiral bevel gearboxes. We also offer mechanical anti-backlash mechanisms that compress the internal worm wheel teeth against the screw threads. This ensures stable positioning when reversing loads.
