Robot Arm 5-Axis Zero Backlash 1:80 Ratio Gear Reducer Harmonic Drive Gearbox CSG Series
Product Overview

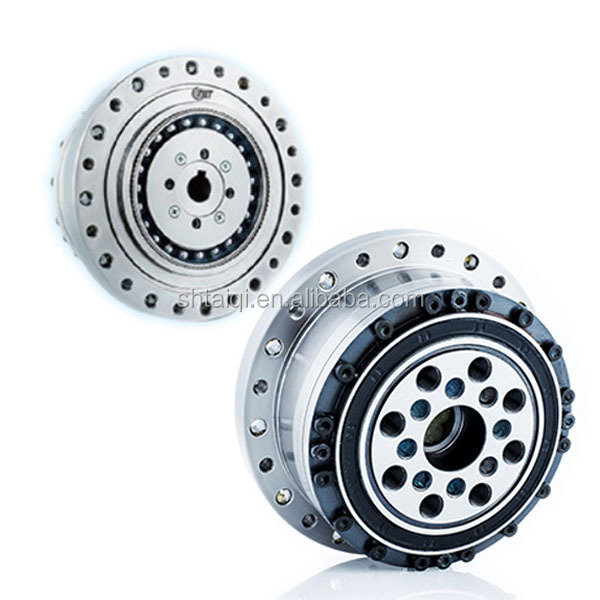

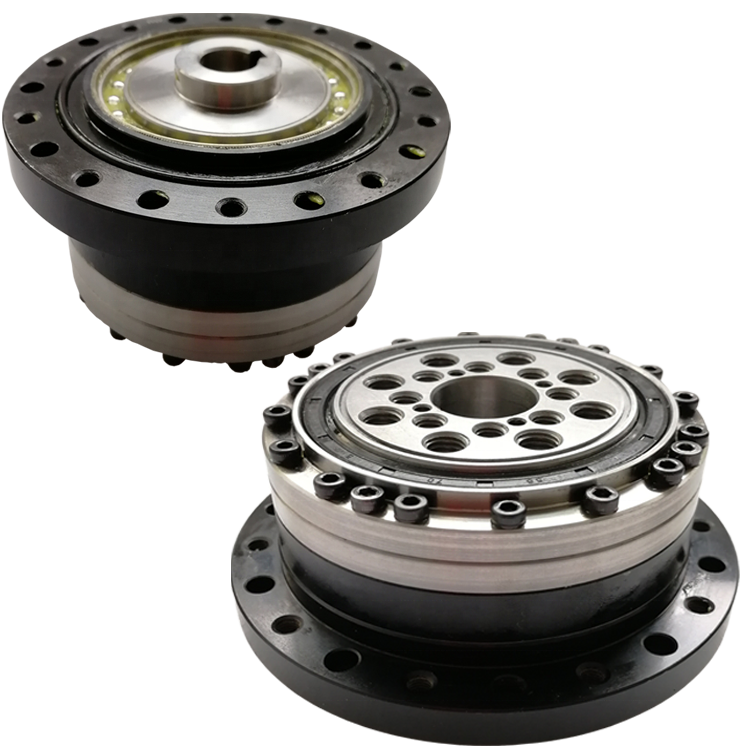

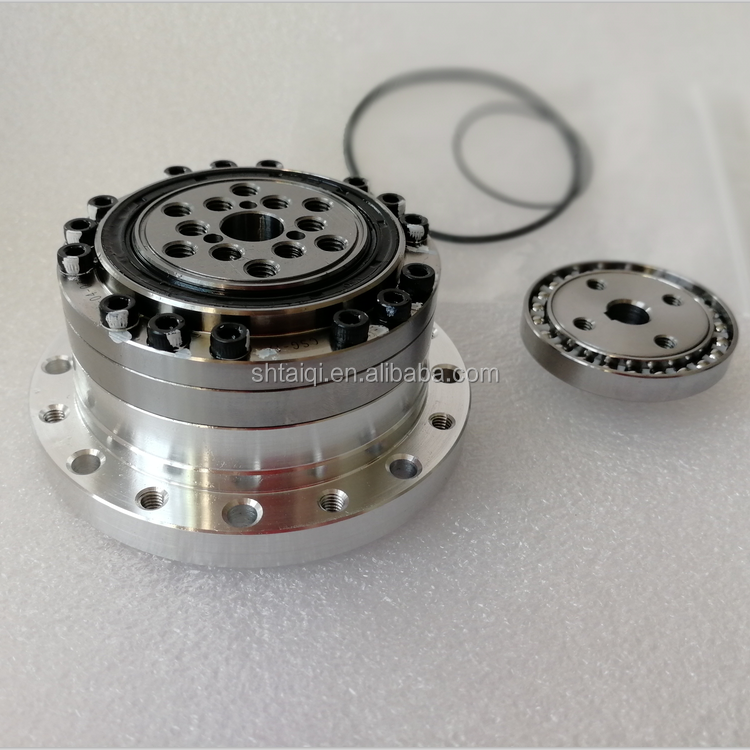

CSG/CSF-2UH series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm. The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space-saving designs.
Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life, confirmed by many years of successful service. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the units positioning accuracy, stable machine characteristics with short cycle times are guaranteed.
CSG & CSF series combination harmonic gearboxes can meet the request of high function, high speed, high load capacity, and high density. The difference is that CSF series is standard torque, while CSG series provides higher torque and longer service time.
Frequently Asked Questions
❓ Are you a manufacturer or trader?

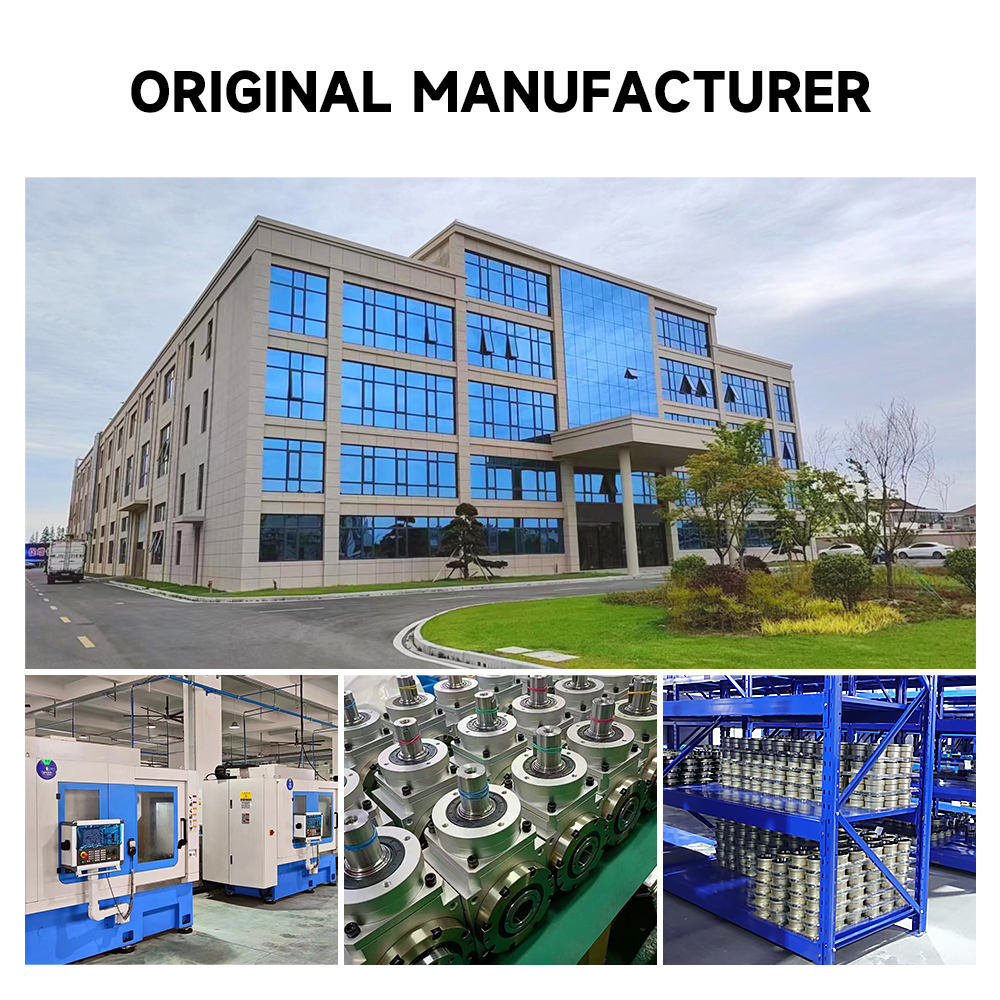

We are a manufacturer. Sincerely welcome to visit our company or arrange a video conference for a virtual tour.
❓ What are your main products?
We supply planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo motors, stepper motors, electric cylinders, and couplings.
❓ How do I select a suitable gearbox?
Please provide motor details, drawings, working conditions, load, output torque, speed, and reduction ratio. We will guide you step-by-step to the best model.
❓ Can I get 3D and 2D drawings?
Sure, we have standard drawings available. Input sizes can also be customized according to your specific motor requirements.
❓ Do you offer individual design services?
Yes, we design products individually for customers. Note that this may involve mold development costs and design charges.
❓ What is your typical lead time?
We stock many standard products. If out of stock, it takes 15-20 days; customized products may take slightly longer depending on the specific order.
