Product Description

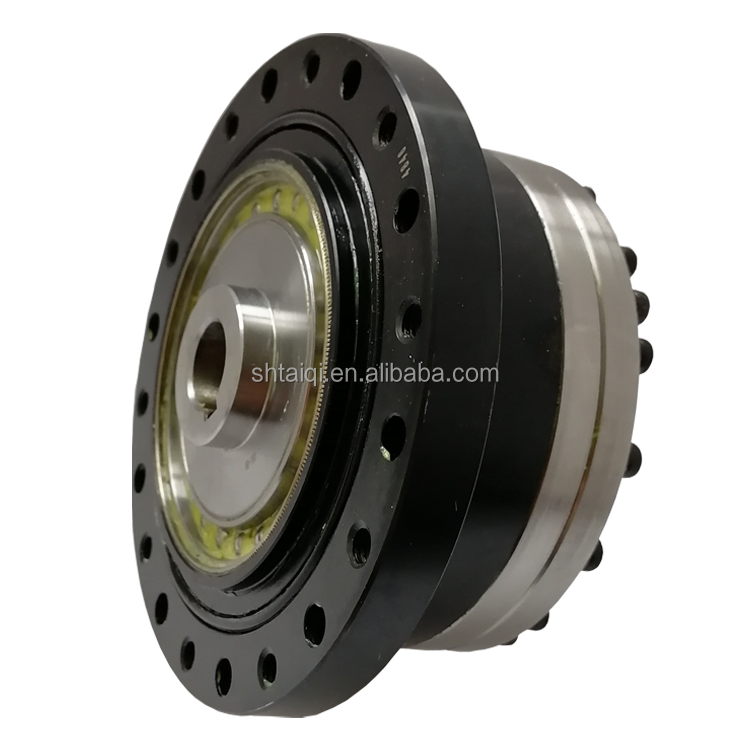

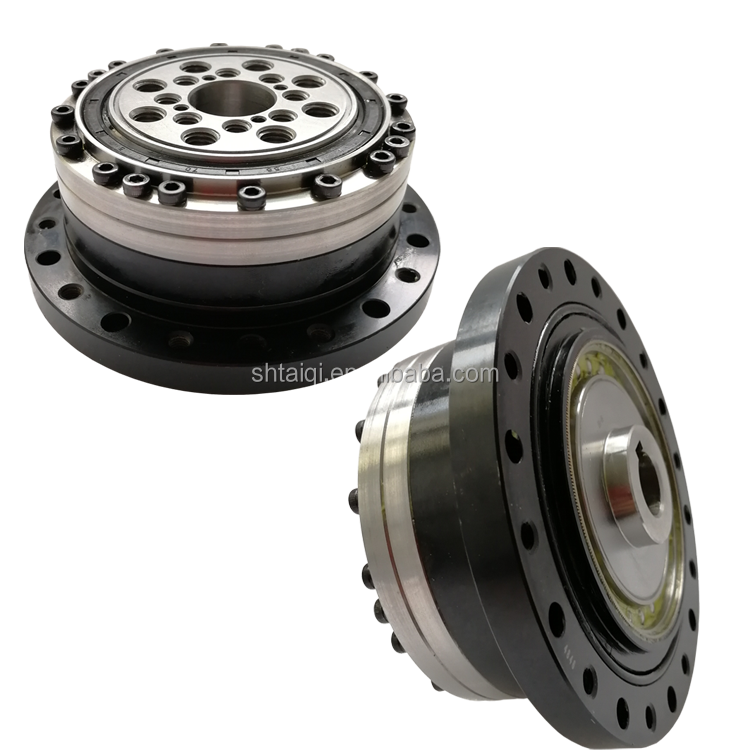

Robot arm 5-Axis zero backlash 1:80 ratio gear reducer harmonic drive gearbox CSG series
⚙️ Compact design
⚡ High torque capacity
🎯 Zero backlash
📍 Excellent positioning & rotation accuracy
🔄 Coaxial input and output
📈 30% Higher torque & 43% Longer life
CSG/CSF-2UH series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm. The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space saving designs.
Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the Units positioning accuracy, stable machine characteristics with short cycle times are guaranteed.
CSG & CSF combination harmonic gearboxes are mainly structured by component sets. The cross roller bearing inside the harmonic drive is with high precision and high rigidity, it is used for holding external loading. The series can meet the request of high function, high speed, high load capacity, and high density.
| Type | CSG harmonic drive gearbox |
| Color | Silver |
| Packing | Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty | 1 Year |
| Input Power | 0.05kw to 15kw range |
| Usages | Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass, New energy, Industrial automation |
| Lubricant | Special gear oil |
