Product Description

Harmonic Drive Showcase
Harmonic Reducer Overview
Product Description
Zero Backlash SHD Harmonic Drive Reducer
TQG harmonic drive reducer is composed of three components: wave generator, flexspline and circular spline. It utilizes the transmission mode of metal winding deformation. Through the breakthrough in tooth meshing & material, and processing accuracy, we successfully developed CSG, CSF, SHG, SHF, CSD and SHD series harmonic drive gearboxes.

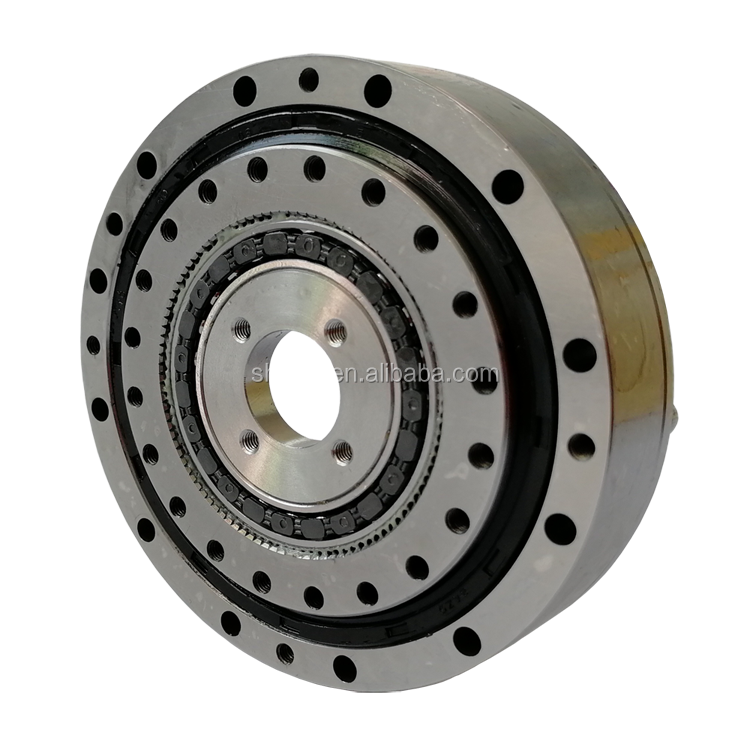

SHD-2SH Structure
SHD-2SH harmonic gearboxes are featured by highly compact dimensions and light weight, consisting of the component set with shortened flex spline and the high capacity output bearing. The absence of input and output flanges makes maximum flexibility in design integration. The integrated hollow shaft can be used to feed through supply lines or services for further axes. The high capacity, integrated output bearing ensures that the unit can quickly and easily withstand heavy payloads.
Details Images

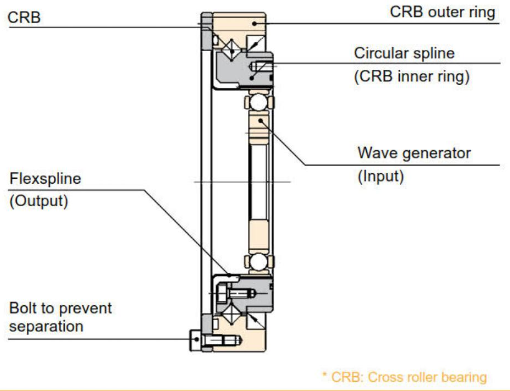

Structure of SHD
Structure of SHD

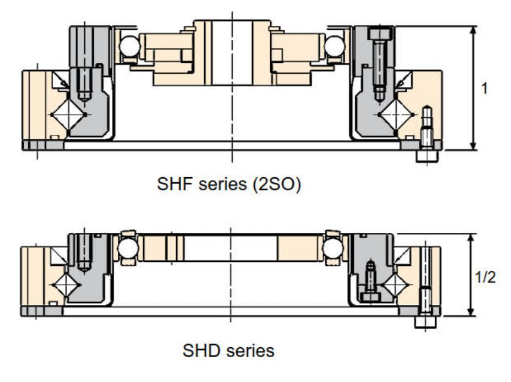

Axial length comparison
Axial length comparison

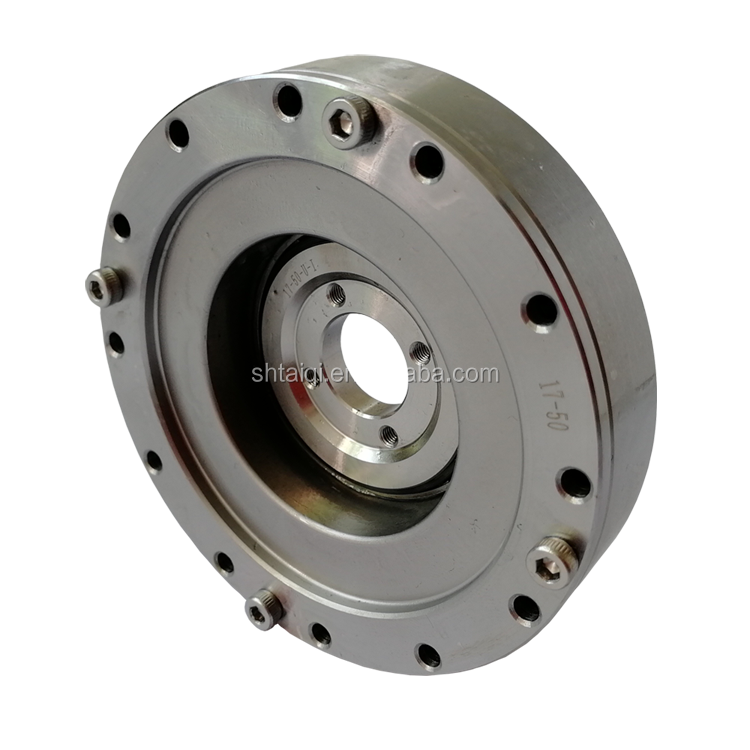

Product detail view 1

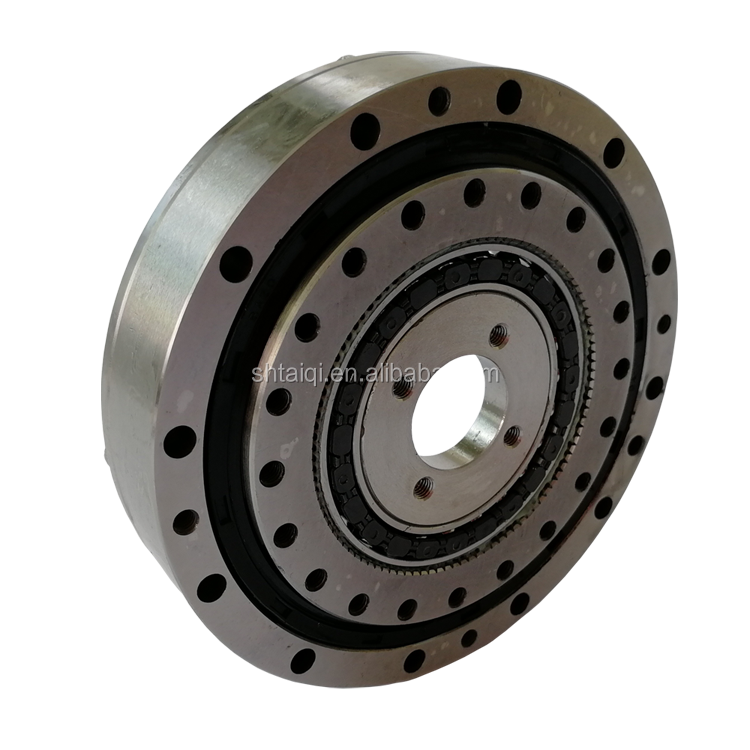

Product detail view 2

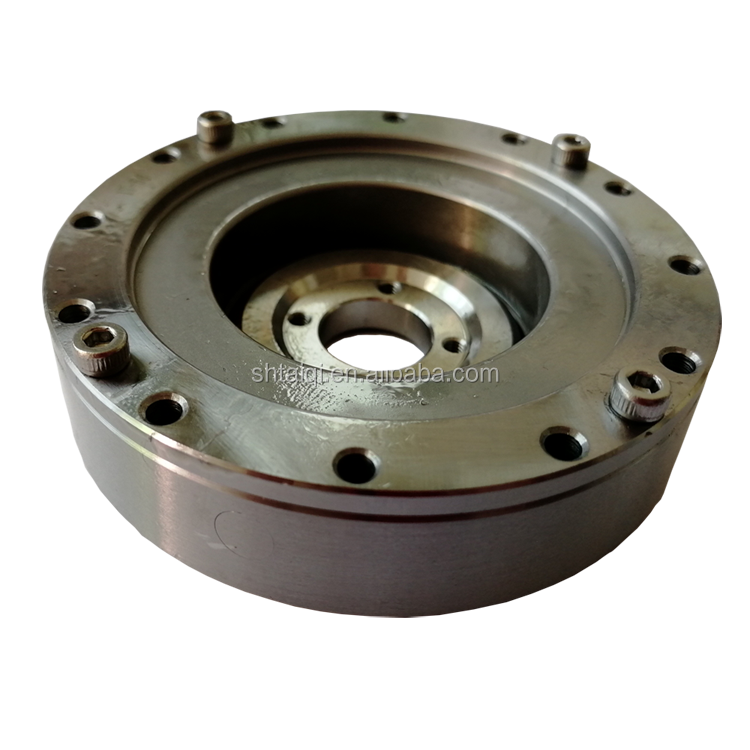

Product detail view 3

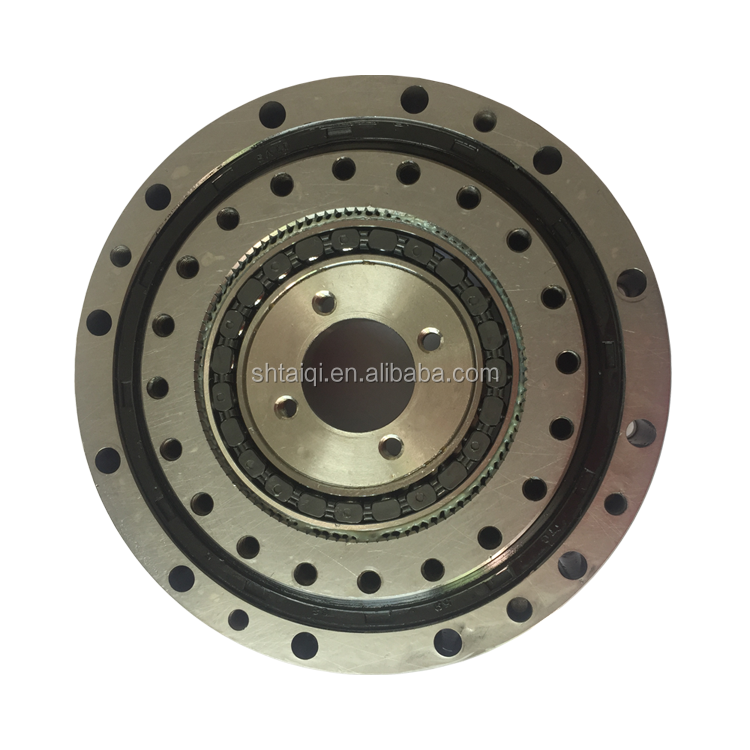

Product detail view 4
Product detail view 5

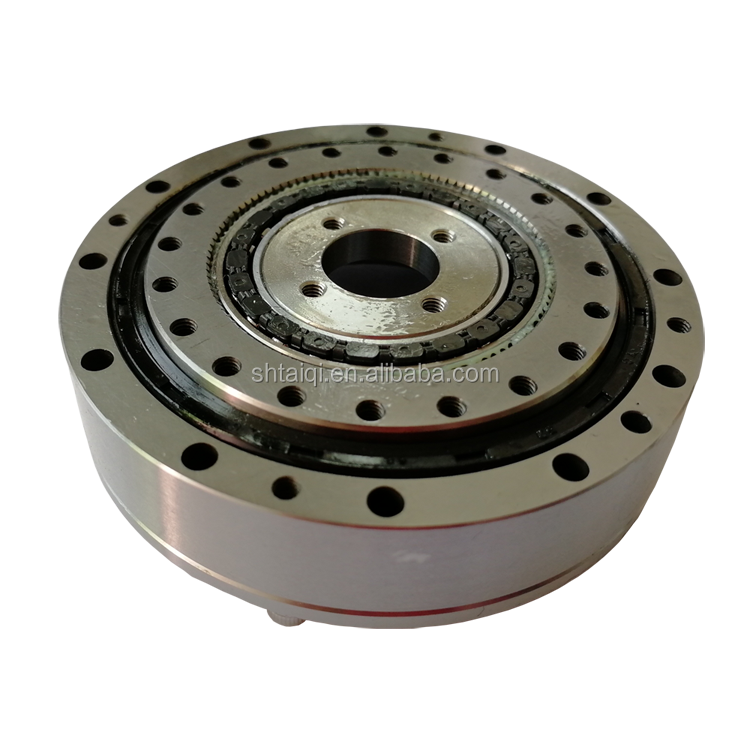

Product detail view 6
Type Zero Backlash SHD Harmonic Drive Reducer
Color Silver and Black
Packing Carton, Honey Comb Carton, Wooden Case with wooden pallet
Warranty 1 Year
Input Power 0.05kw, 0.1kw, 0.2kw, 0.4kw, 0.75kw, 2kw, 2.5kw, 5kw, 11kw, 15kw
Usages Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass, New energy, mine, machine, Heavy industry equipment, Industrial automation

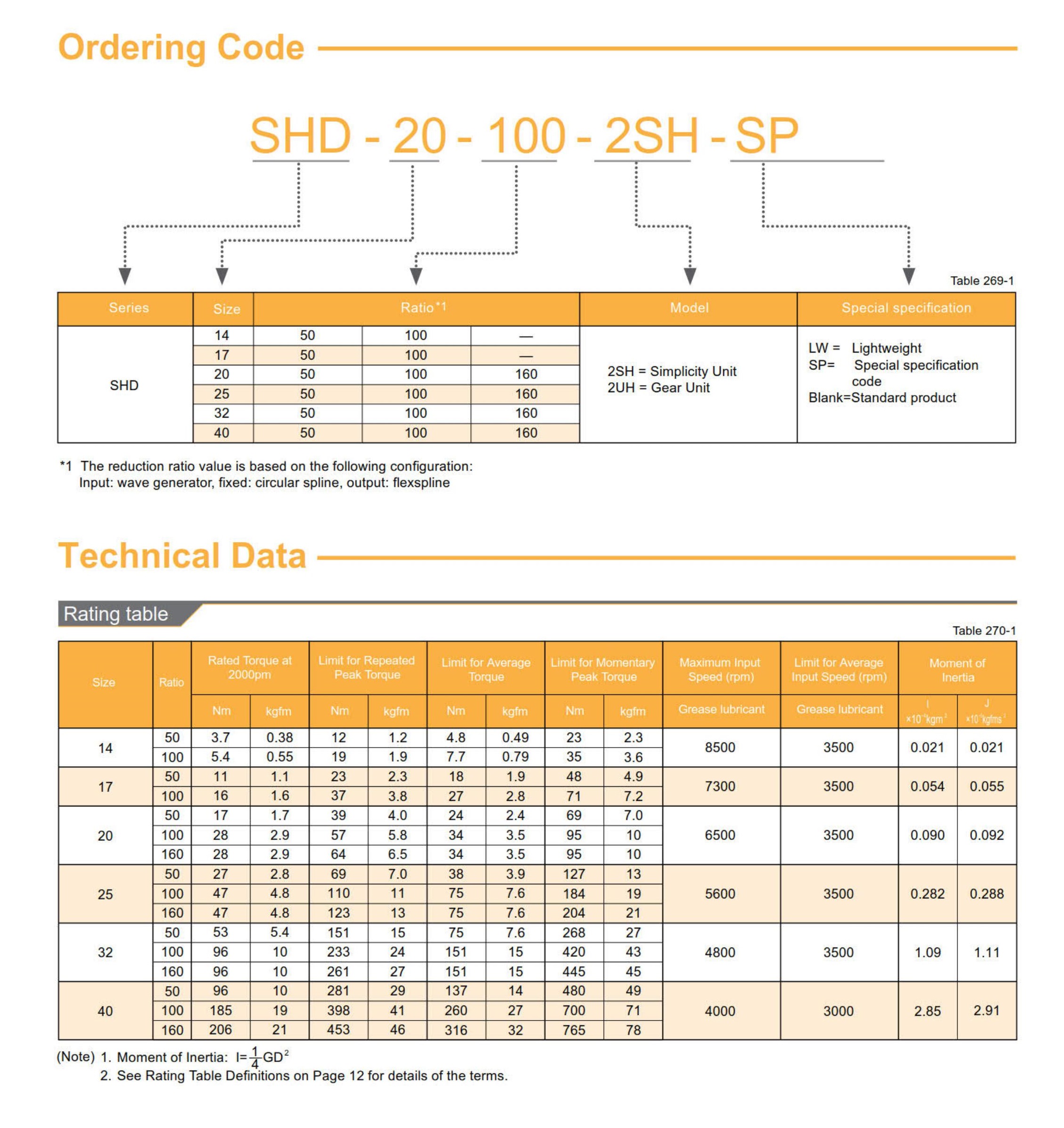

Application 1

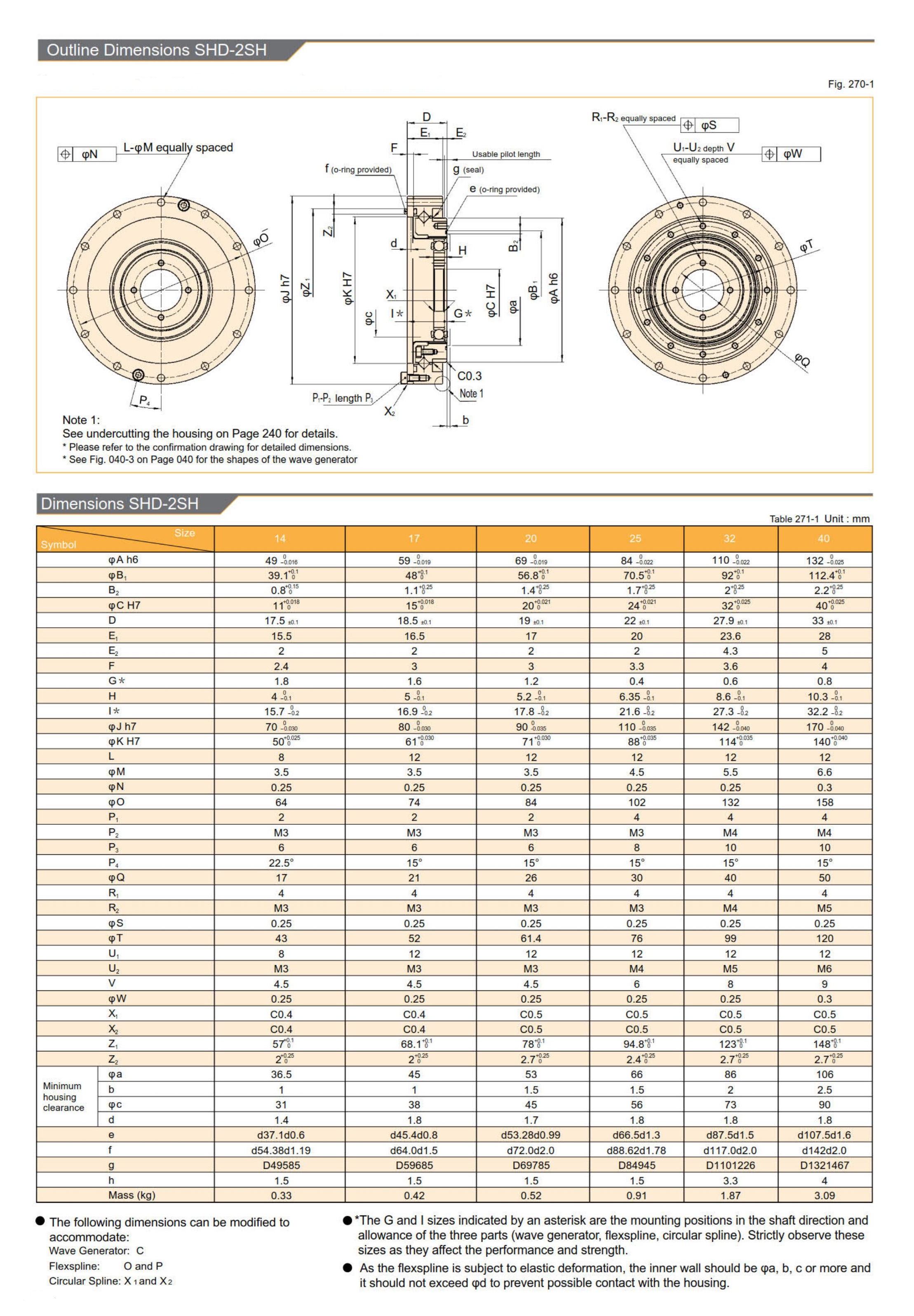

Application 2
Company Profile
Facility Showcase 1
Facility Showcase 2
Our Factory
Factory Machine Room
Certificate
Quality Certificates
Customer Feedback
Reviews and Feedback
Logistics and Payment
Logistics Flow and Supported Payments
Frequently Asked Questions
Are you manufacturer or trader?
We are manufacturer. Sincerely welcome to visit us. And we can have a video conference first if you are convenient.
What're your main products?
We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
How to select a suitable gearbox?
Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Can I get the 3D and 2D drawings?
Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Do you have an individual design service?
Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
What's your lead time?
Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
