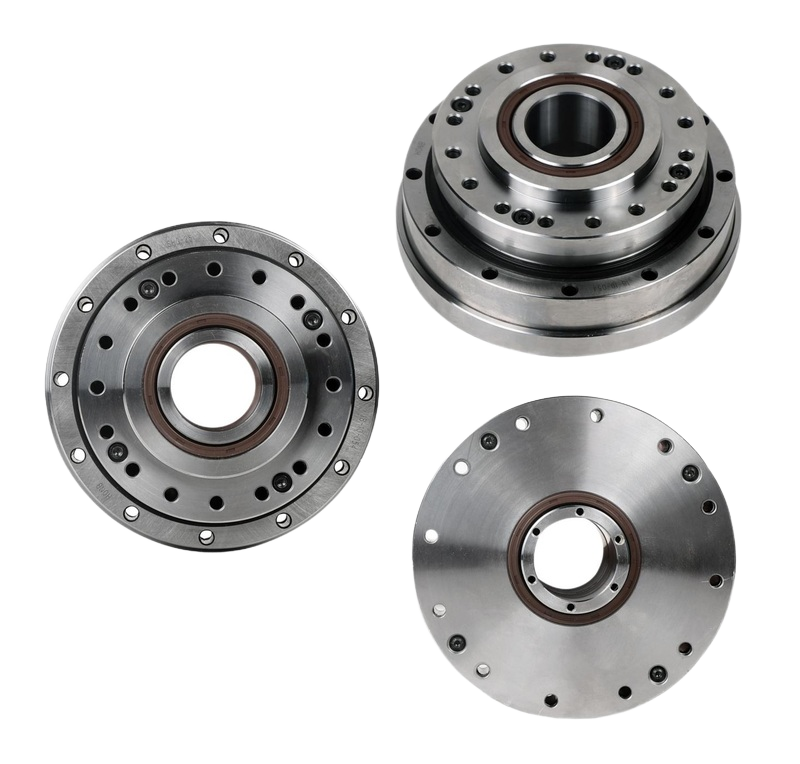

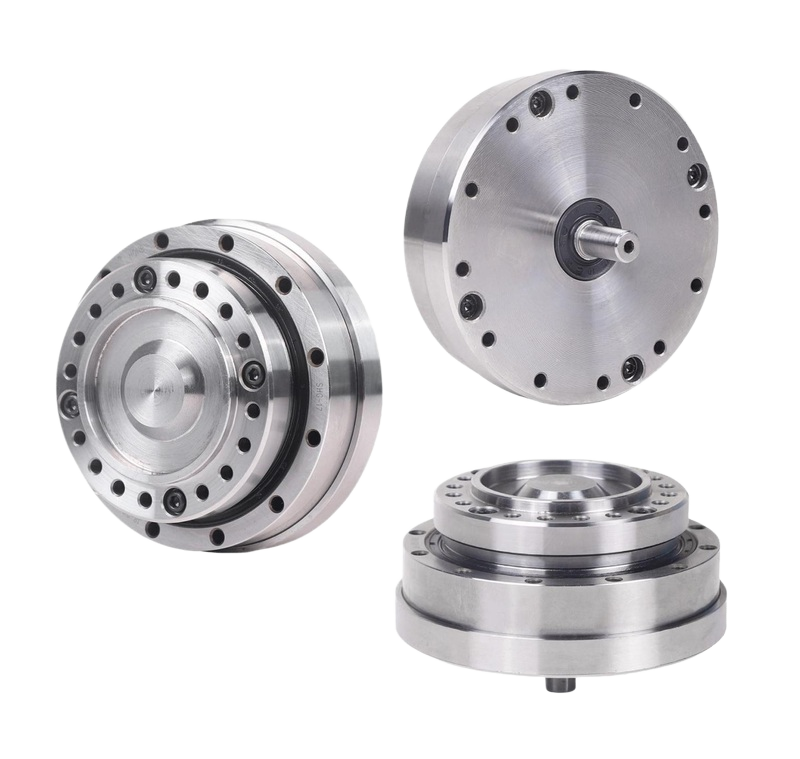

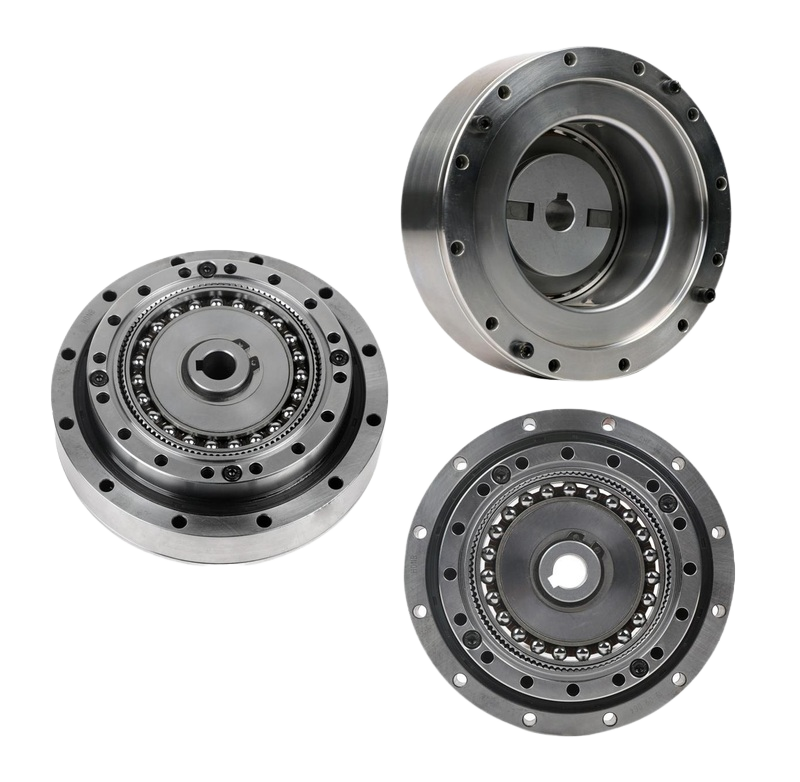

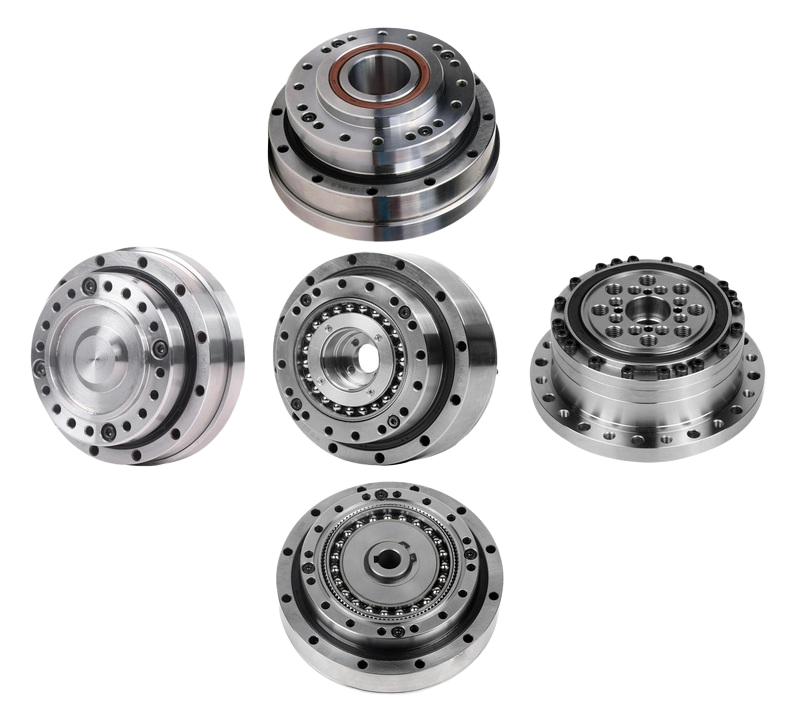

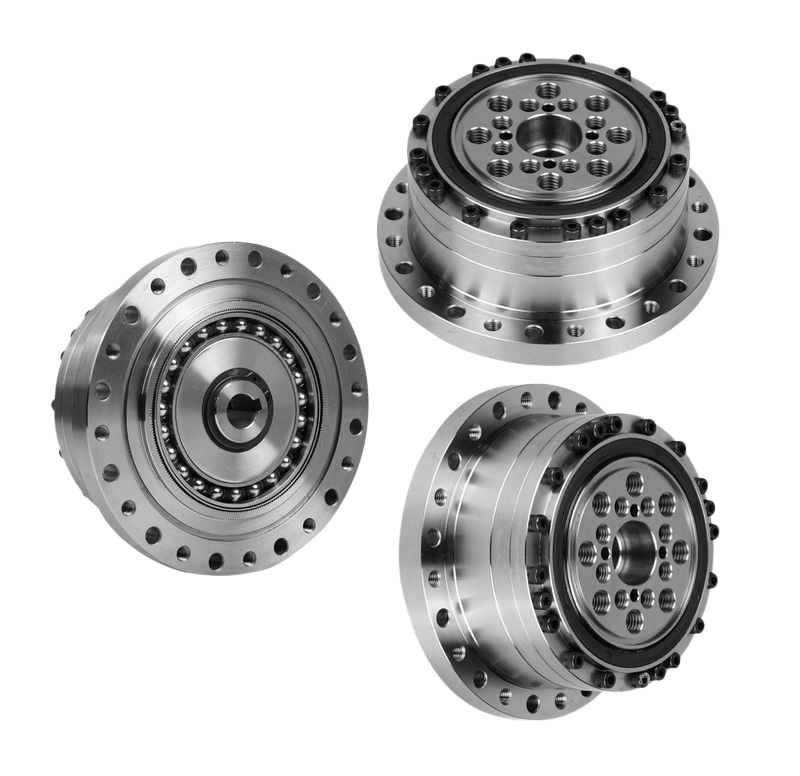

The CSG series harmonic drive gearbox is a high-performance 1:80 ratio gear reducer designed specifically for 5-axis robotic arms. Featuring zero backlash and exceptional positioning accuracy, it is the ideal solution for precision industrial automation.
CSG/CSF-2UH series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm. The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space-saving designs.
Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life, confirmed by many years of successful service. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the Units positioning accuracy, stable machine characteristics with short cycle times are guaranteed.
| Type | CSG Harmonic Drive Gearbox |
|---|---|
| Color | Silver |
| Packing | Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty | 1 Year |
| Input Power | 0.05kw - 15kw (Various ranges available) |
| Usages | Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood working, Glass, New energy, Mine, Industrial automation |
| Lubricant | Special gear oil |
