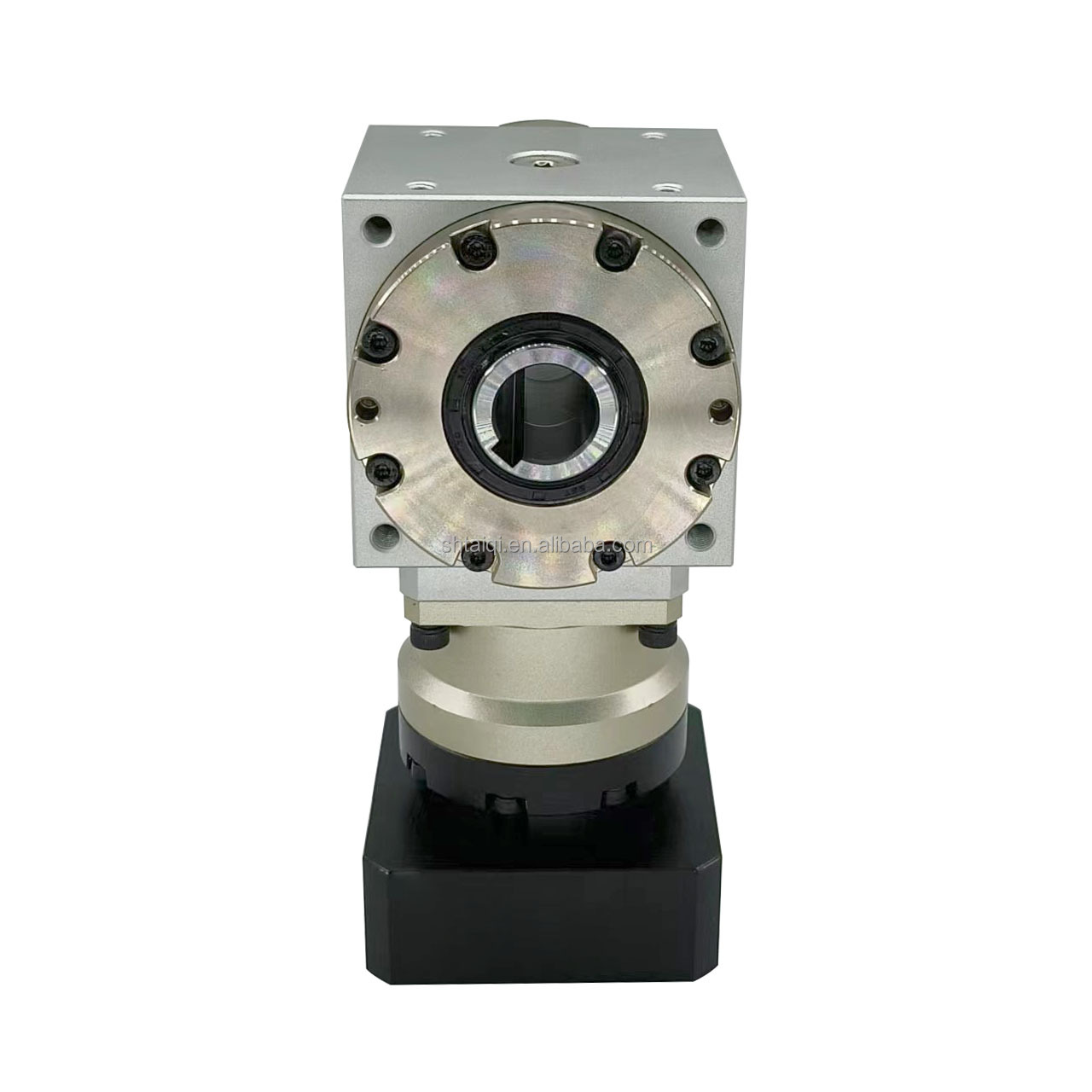

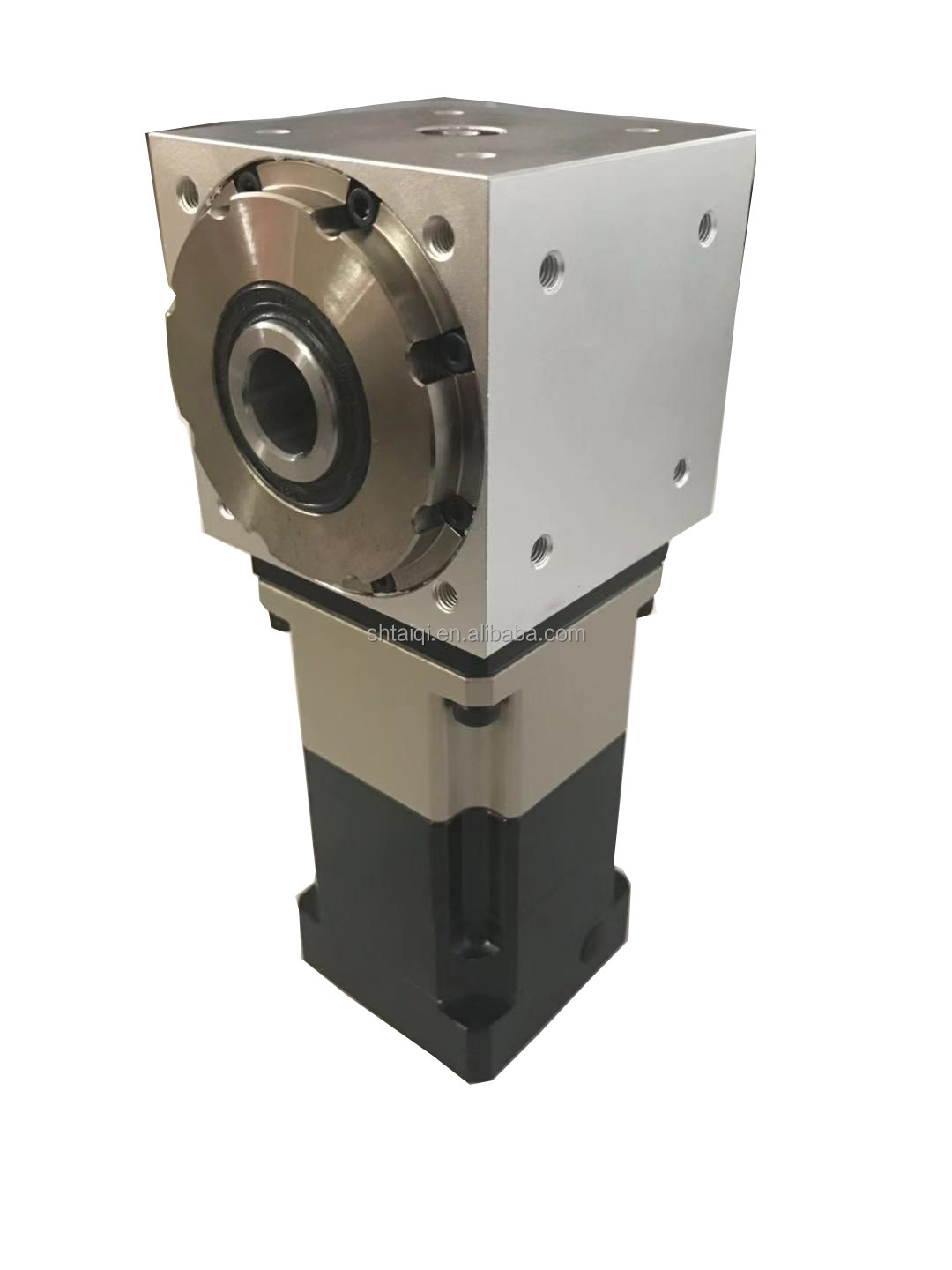

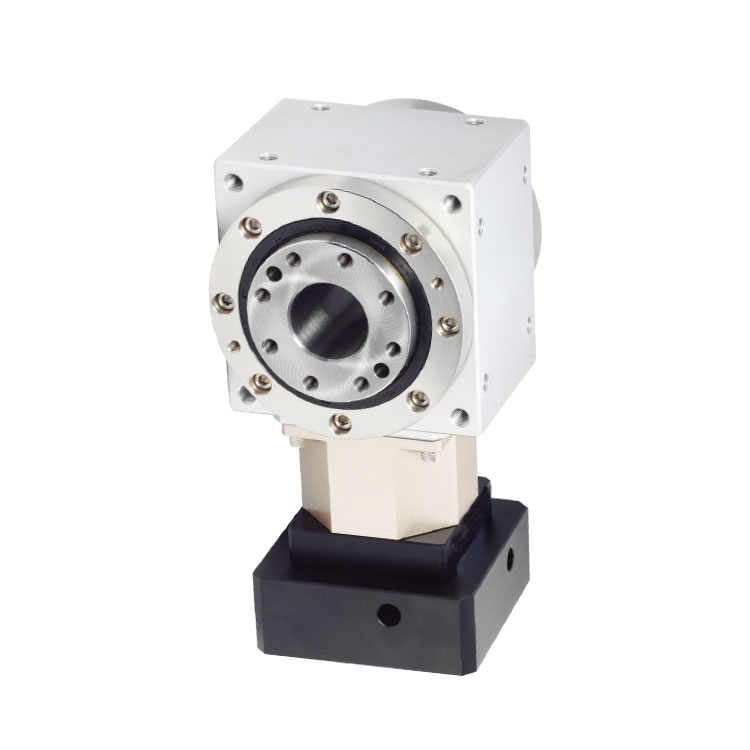

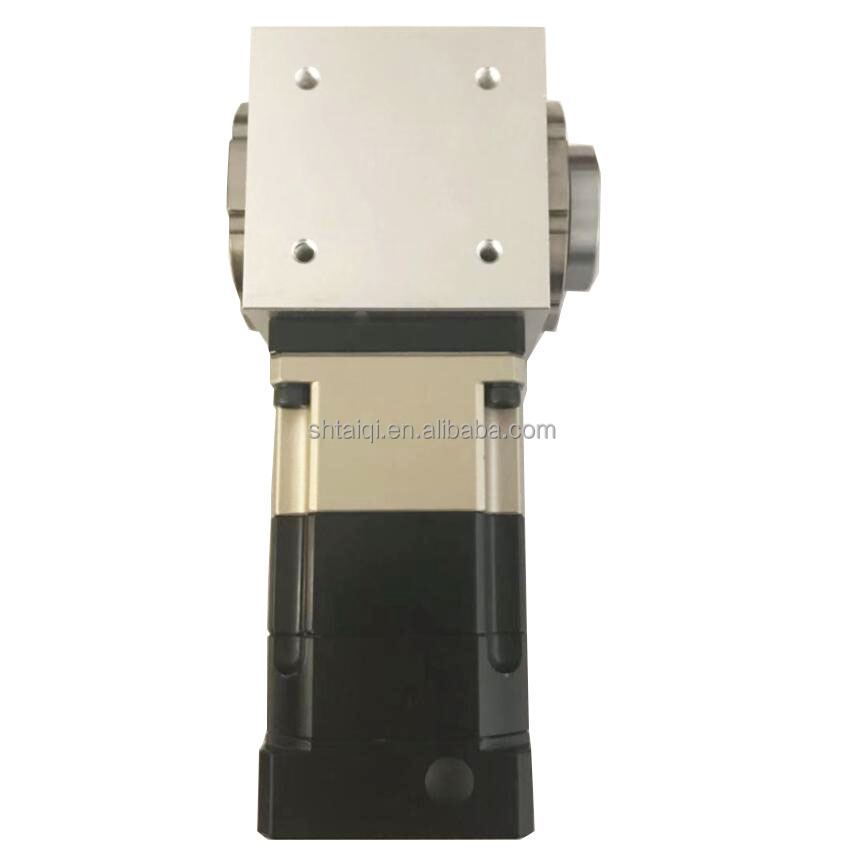

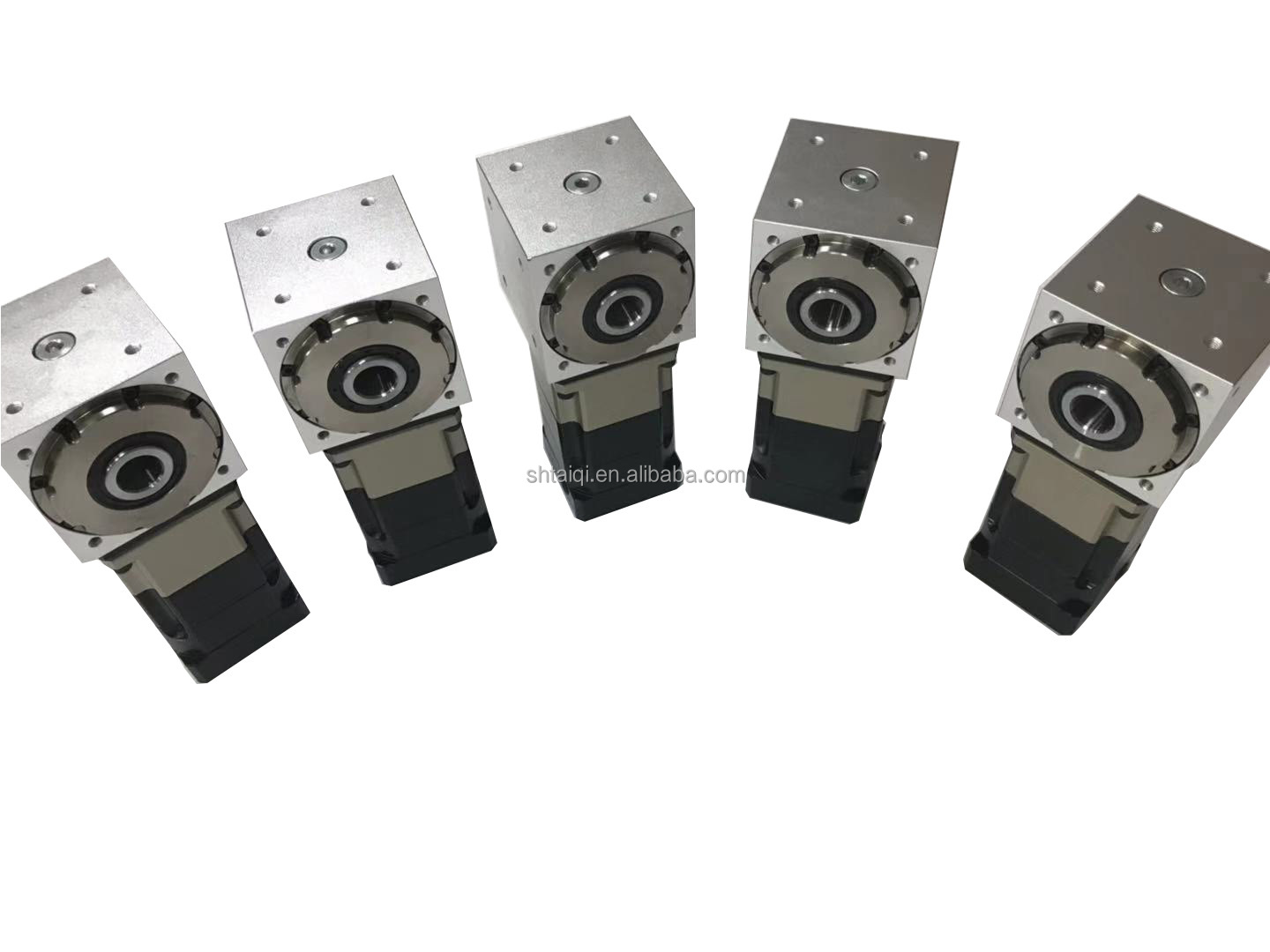

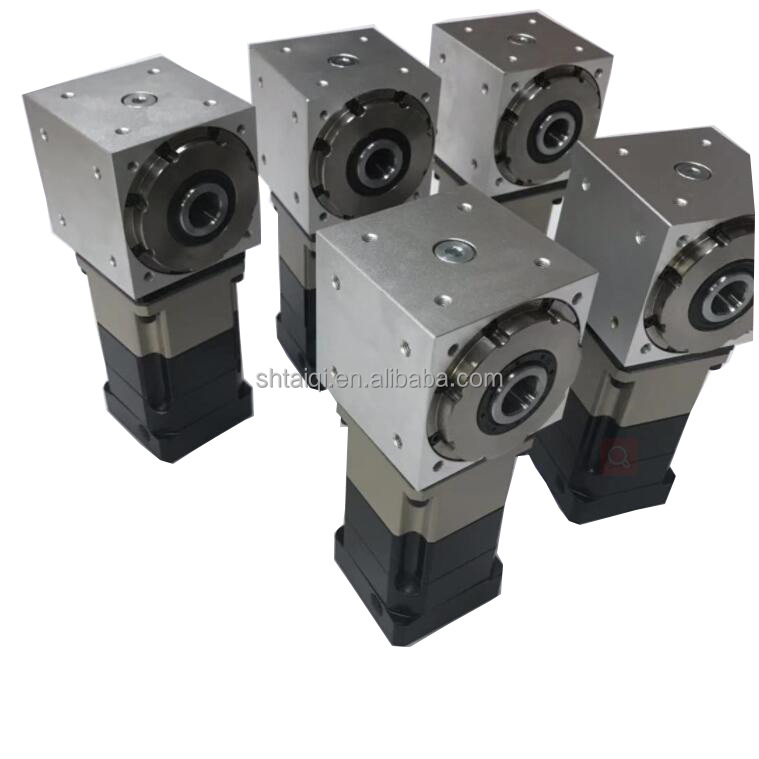

TQG Right Angle 10:1 Gearbox 90 Degree Spiral Bevel Speed Reducers Compact Flange Mounted for Machine Tools Model

Send Inquiry

Product Description

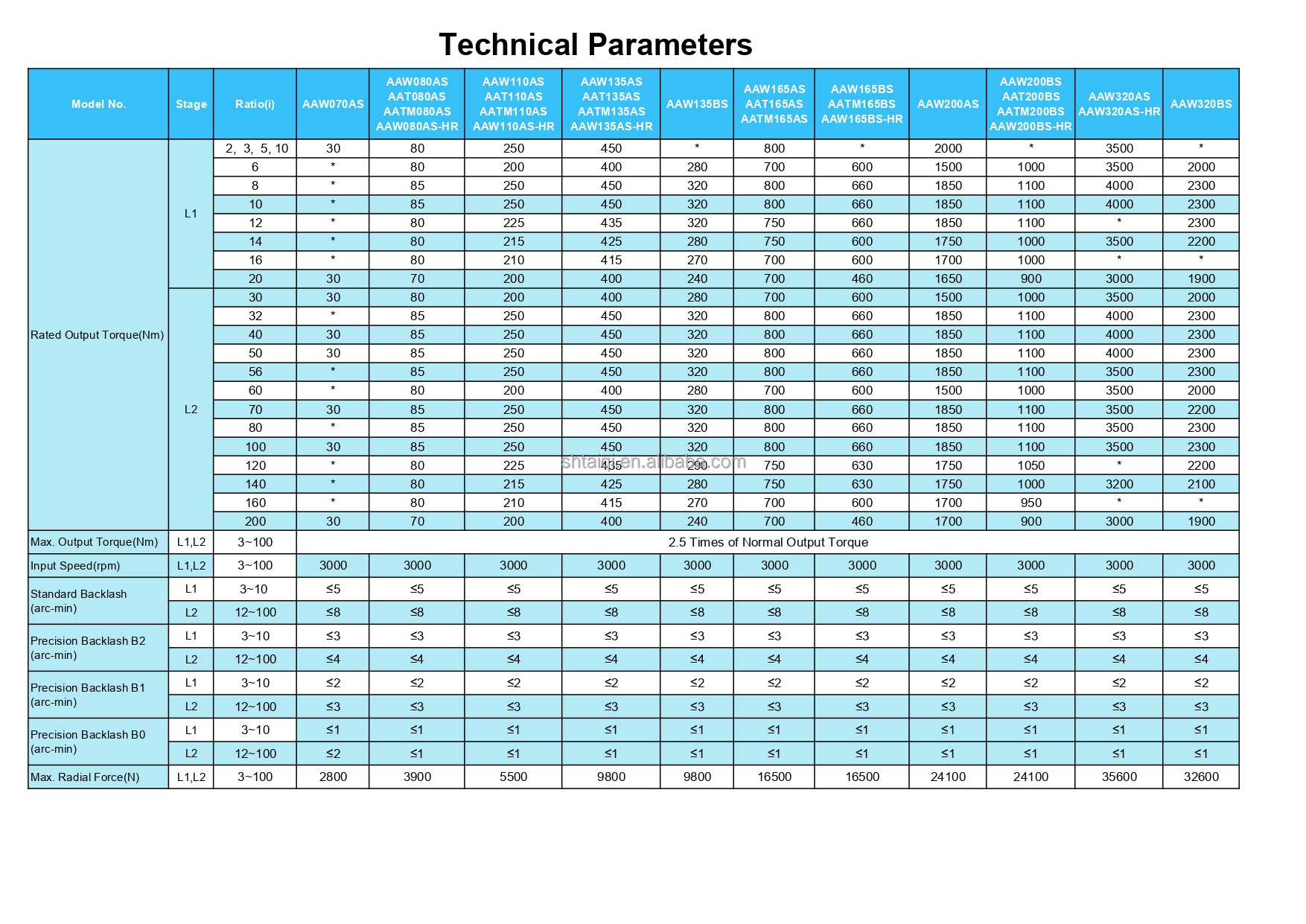

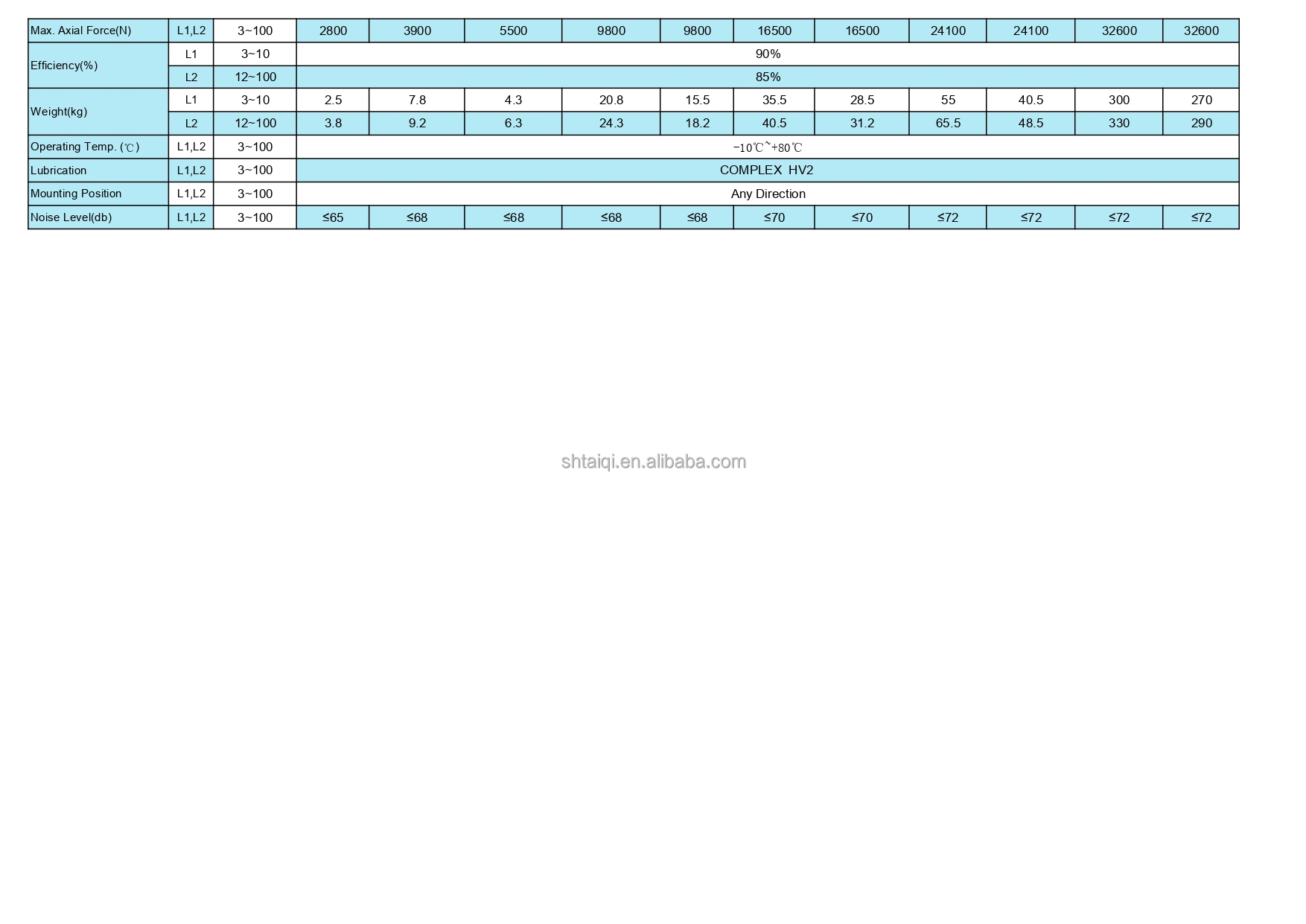

Technical Specifications

Model	AAW070AS/BS-RF-K, AAW080AS/BS-RF-K, AAW110AS/BS-RF-K, AAW135AS/BS-RF-K, AAW165AS/BS-RF-K, AAW200AS/BS-RF-K, AAW320AS/BS-RF-K
Ratio	2, 3, 4, 5, 6, 8, 9, 10, 12, 15, 16, 18, 20, 21, 24, 30, 34, 36, 40, 42, 45, 48, 50, 56, 60, 63, 70, 75, 80, 84, 90, 100, 105, 120, 140, 150, 160, 180, 200, 210, 240, 300
Backlash	[1, 8] arcmin
Torque	30Nm - 4000Nm
Weight	2.5kg - 330kg
Package	Carton or wood gearbox

Product Features

Factory & Manufacturing

Customer Reviews

Frequently Asked Questions

1. What gear ratios are available for these gearboxes?

We offer a wide range of ratios from 2 up to 300, providing flexible options for various speed and torque requirements.

2. What is the precision or backlash level?

The backlash for this series is maintained between 1 to 8 arcmin, ensuring high precision for demanding applications.

3. What is the maximum torque capacity?

The output torque ranges from 30Nm for smaller models up to 4000Nm for heavy-duty industrial requirements.

4. Can these be used with both stepper and servo motors?

Yes, our planetary and right-angle gearboxes are designed to be compatible with a wide range of stepper and servo motor systems.

5. How are the products protected during shipping?

Depending on the weight and size, units are packed in high-strength cartons or reinforced wooden cases to ensure safe delivery.

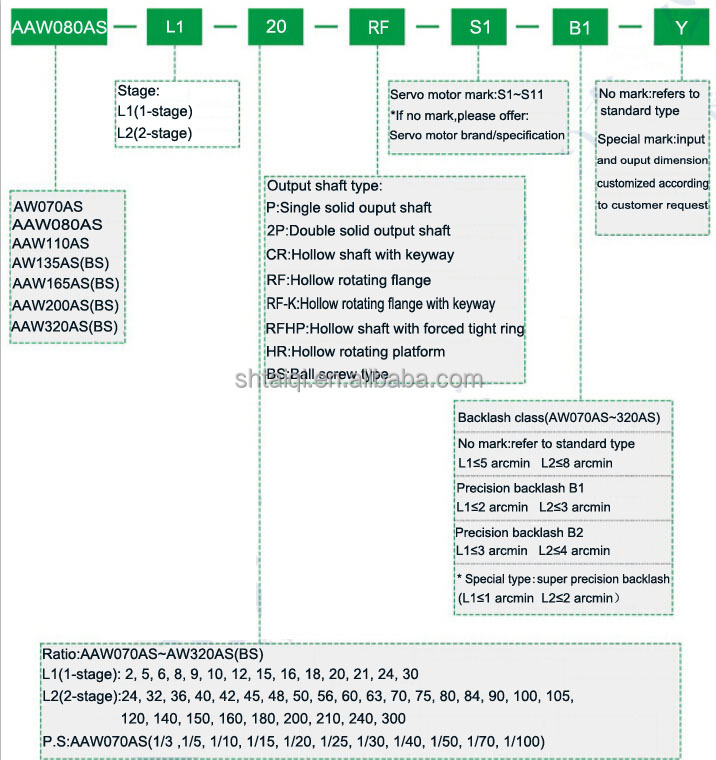

6. What models are included in the AAW series?

The series includes models such as AAW070, AAW080, AAW110, AAW135, AAW165, AAW200, and AAW320 in both AS and BS configurations.
