Product Description
- Compact design
- High torque capacity
- Zero backlash
- Excellent positioning accuracy and rotation accuracy
- Input and output are coaxial
- CSD harmonic reducer is used for high torque case, its torque is 30% higher than CSD reducer’s, also the life time is 43% longer (10000 hours).

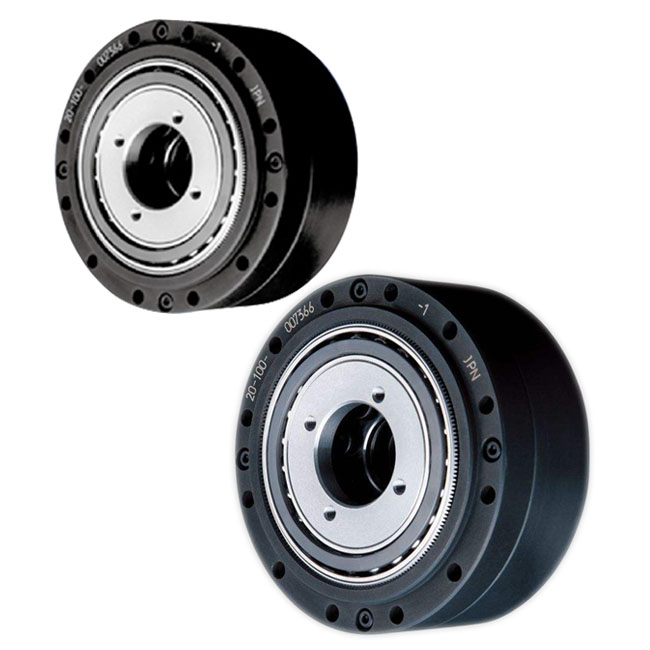

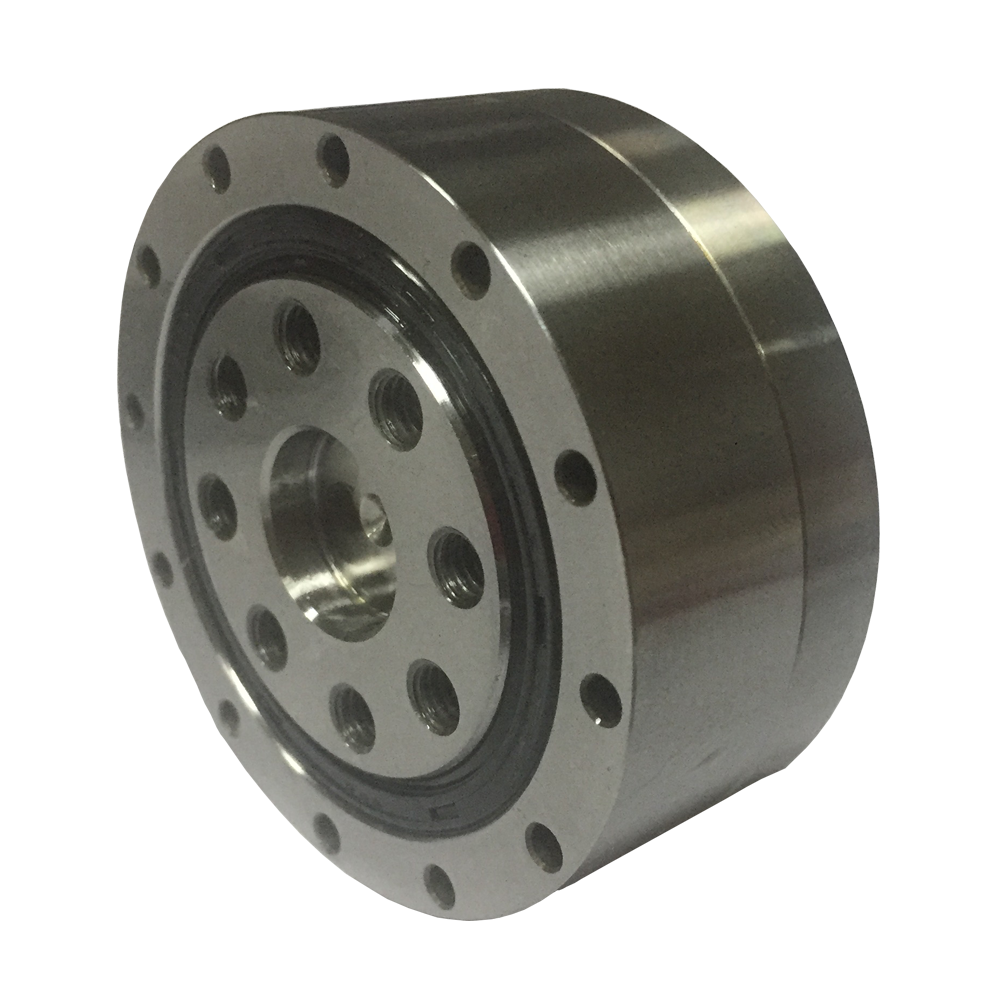

CSD series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm. The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space saving designs. Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life, confirmed by many years of successful service. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the Units positioning accuracy, stable machine characteristics with short cycle times are guaranteed. CSD combination harmonic gearboxes are mainly structured by component sets. The cross roller bearing inside the harmonic drive is with high precision and high rigidity, it is used for holding (main bearing) external loading. CSD series combination harmonic gearbox can meet the request of high function, high speed, high load capacity, high density, subtle and accelerate the demand of the technical innovation.
Frequently Asked Questions
Are you a manufacturer or trader?

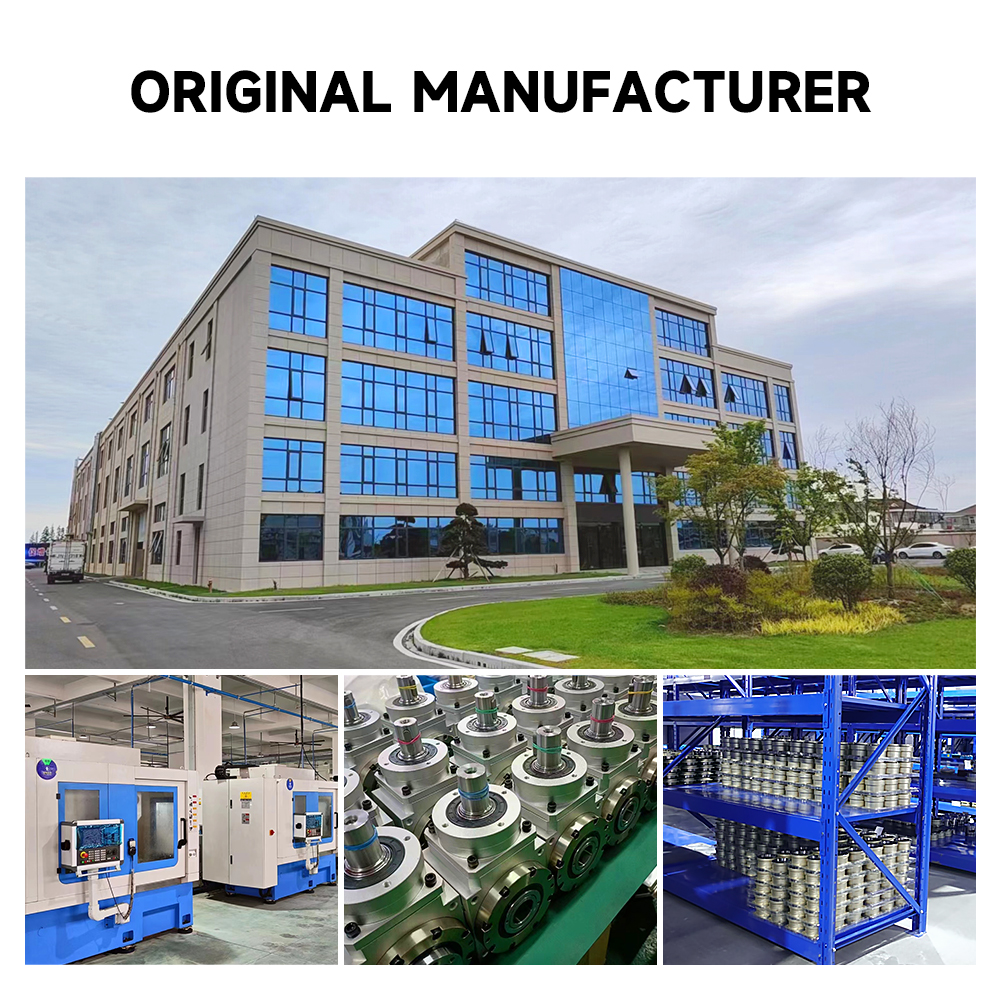

We are a manufacturer. You are sincerely welcome to visit our facility. We can also arrange a video conference to show you our production line at your convenience.
What are your main products?
We currently supply planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo motors, stepper motors, electric cylinders, slides, and couplings.
How do I select a suitable gearbox?
Please provide your motor details or drawings along with working conditions, load, output torque, output speed or reduction ratio, and backlash. Our technical team will recommend the most suitable model for your application.
Can I obtain 3D and 2D drawings?
Yes, we provide standard technical drawings. Additionally, the input size of the gearbox can be customized to match your specific motor requirements.
Do you offer individual design services?
Yes, we can design products tailored to individual customer needs. Please note that this may involve mold development costs and specific design charges.
What is your typical lead time?
We maintain stock for many regular standard products. If items are out of stock, production typically takes 15-20 days. Customized products may require a longer duration depending on specific order requirements.
