Technical team realized the tooth shape optimization design through the big data theory modeling simulation optimization and performance verification broke the constraint of experience accumulation and correction in the transmission design.
We are seeking improvement and innovation been constantly in technical performance product structure processing technology materials and features of harmonic drive. Through long-term technical accumulation the key technologies of our harmonic drive has reached international level of similar products in the product accuracy, longevity, stability, noise control and the technical indicators are in the forefront.
Harmonic Reducer Features

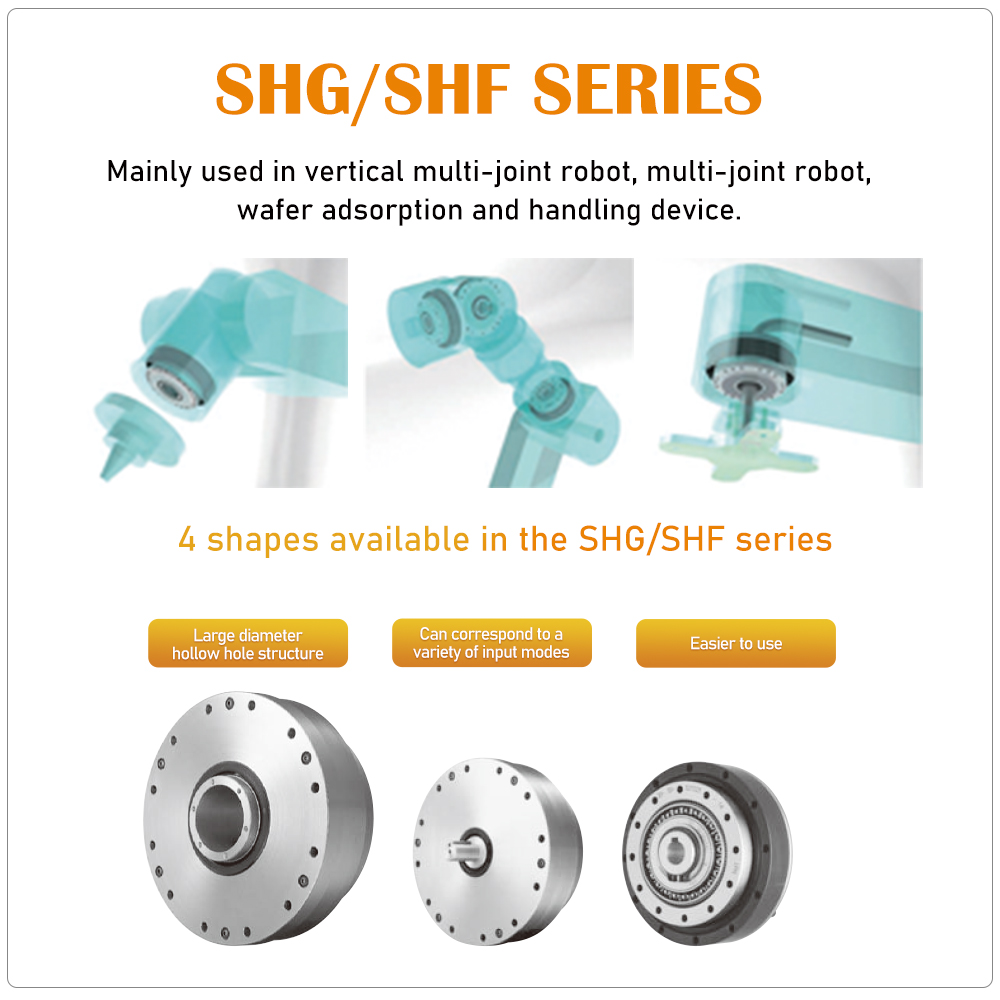

Widely used in industrial robots, medical equipment, precision instruments harmonic reducer.
1
High efficiency: Model 30-120, speed 100~3000 rpm, efficiency 75~90% when ratio 30~120; efficiency 70~85% when ratio 160.
2
Low noise: At rated speed and load, the noise is less than 50dB.
3
Long life: The life of the harmonic reducer is 10000h.
4
High precision: less than 20 arc seconds.
5
High transmission ratio: the transmission ratio of level 1 can reach i = 50 ~ 160.

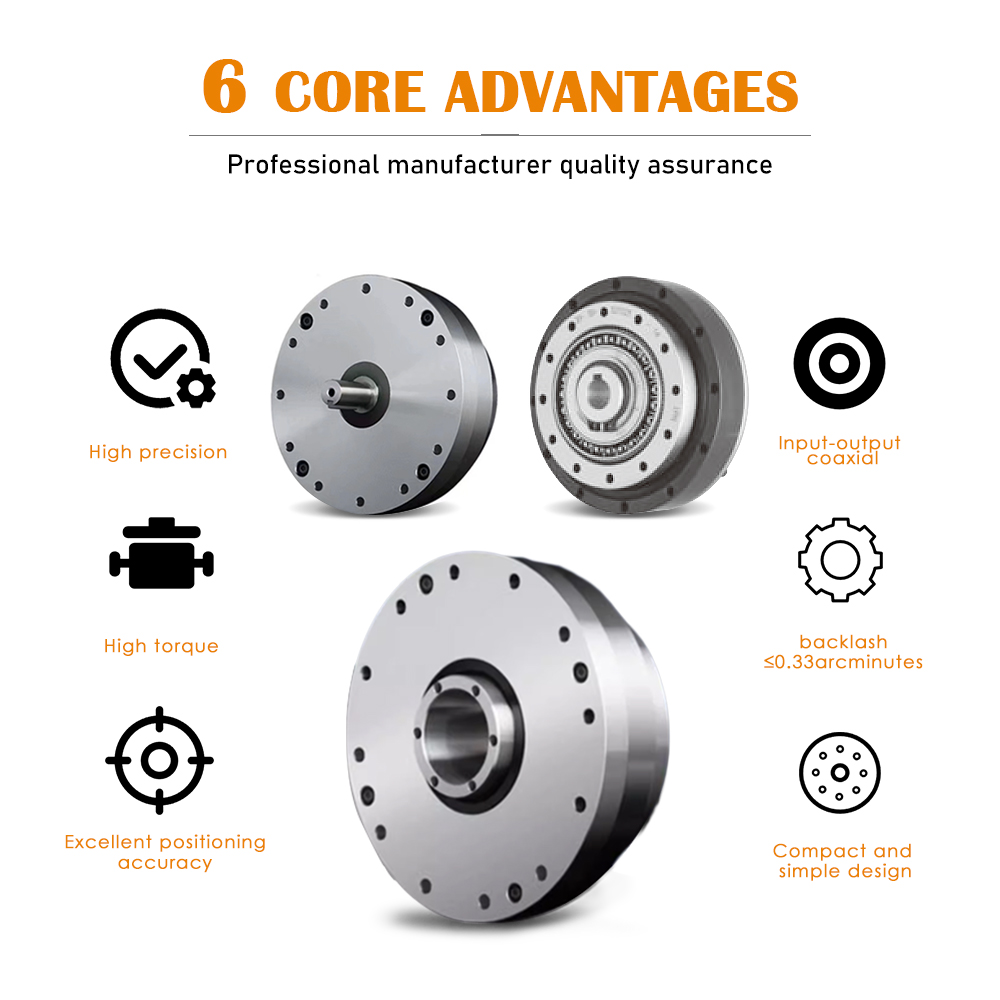

Advantages
Small size and light weight
High precision: positioning accuracy < 1 arcmin, gap < 10 seconds;
High transmission efficiency and long service life: efficiency: 70%-90%, life > 10000h
Large transmission ratio: L1 transmission ratio is 30-120:1
Stable performance and low noise: below 50dB
High load capacity
Frequently Asked Questions
Are you manufacturer or trader?
We are manufacturer. Sincerely welcome to visit us. And we can have a video conference first if you are convenient.
What're your main products?
We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
How to select a suitable gearbox?
Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Can I get the 3D and 2D drawings?
Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Do you have an individual design service?
Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
What's your lead time?
Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
