AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
1 / 5
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier
AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier

AATM-AS Series 90 Degree Right Angle Spiral Bevel Gear Box Speed Reducer Custom CE Supported Chinese Supplier

Send Inquiry

Product Description

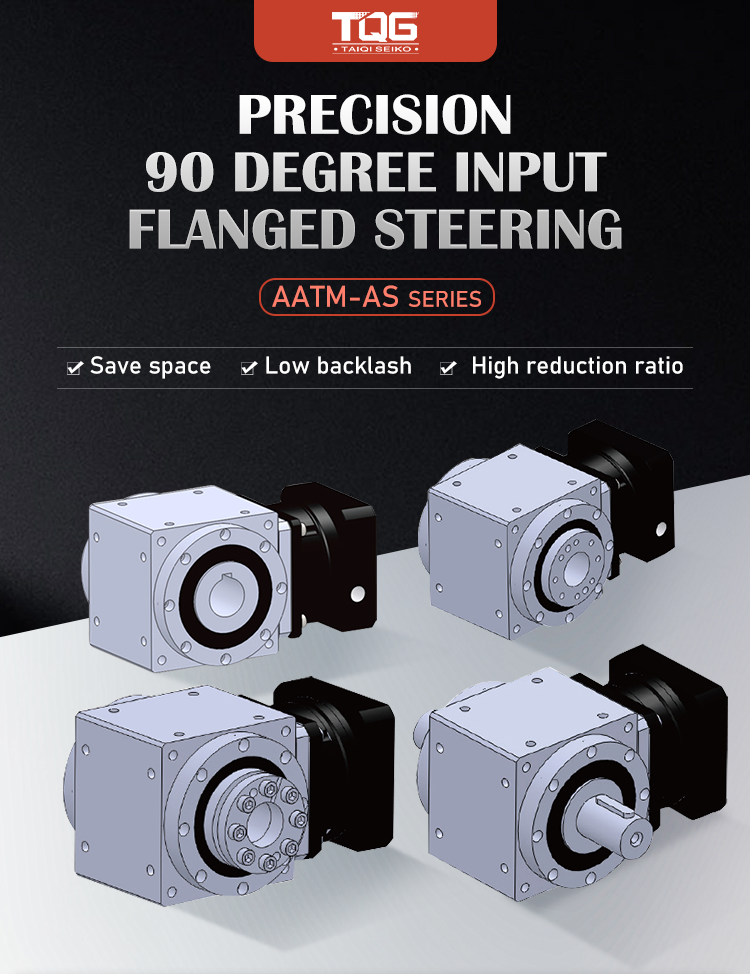

Product Presentation

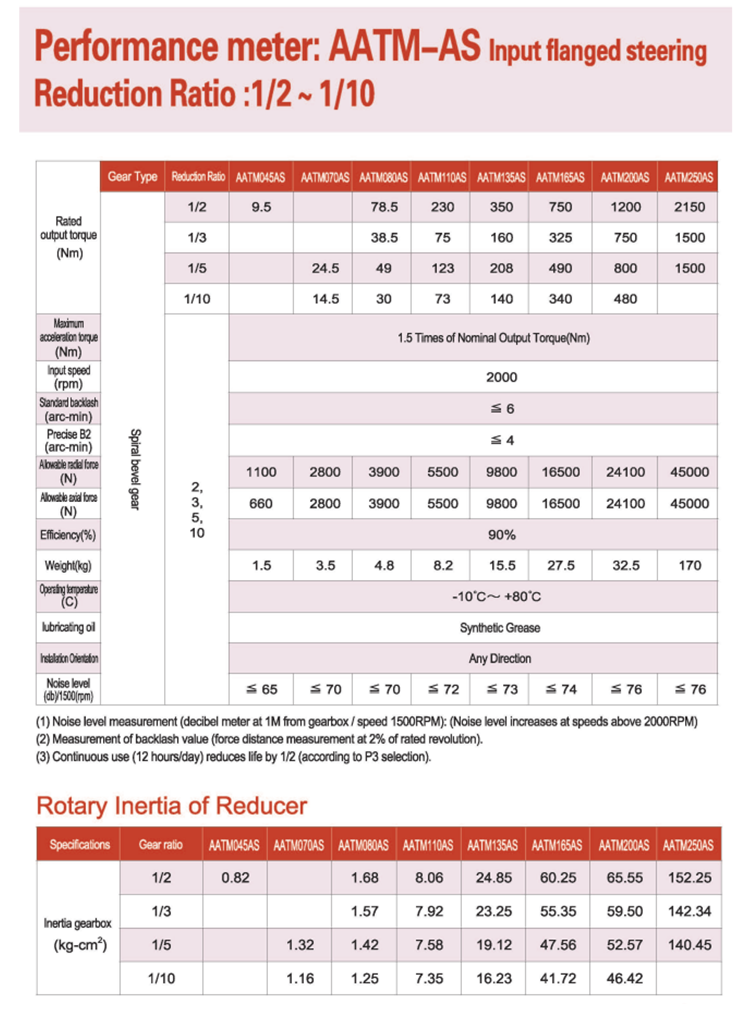

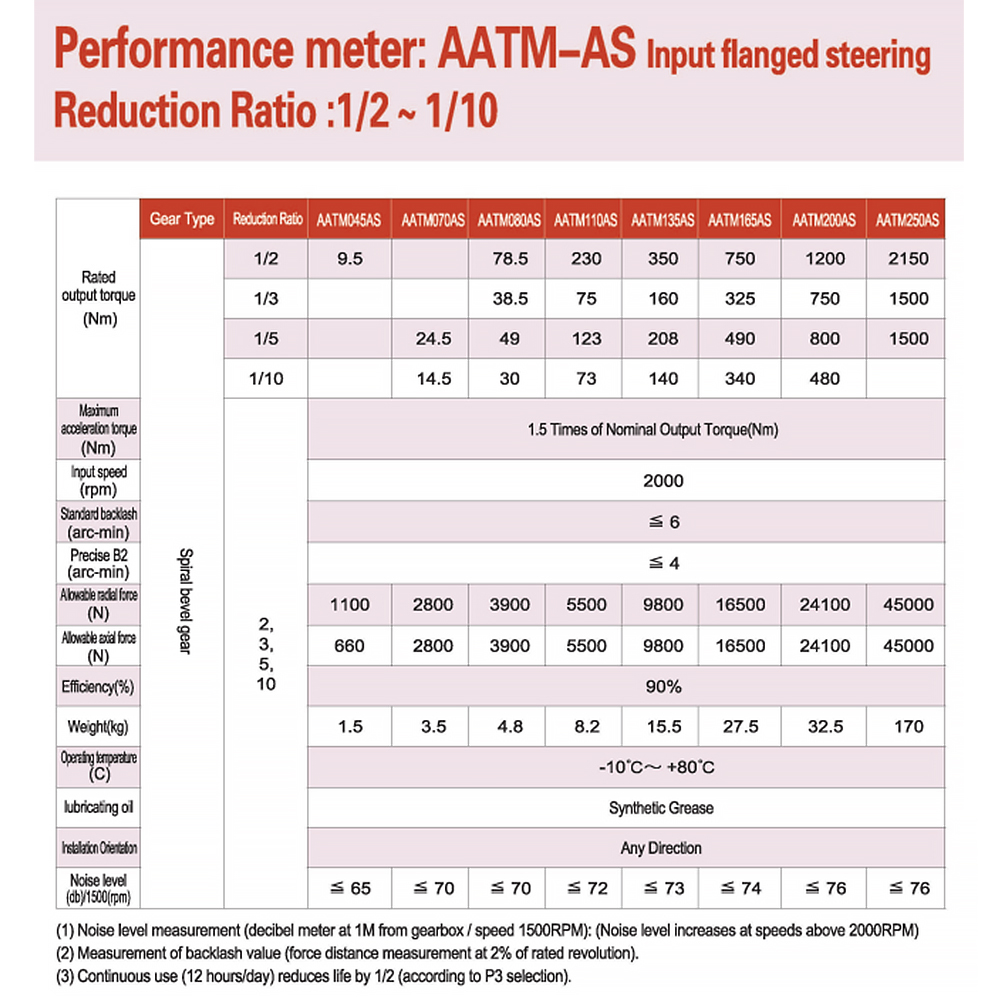

Technical Specifications
Model AATM-AS Classic planetary input steering gear
Matching Motor Stepper motor, servo motor, BLDC motor
Mounting Position Any Direction
Packing Carton or wooden pallet

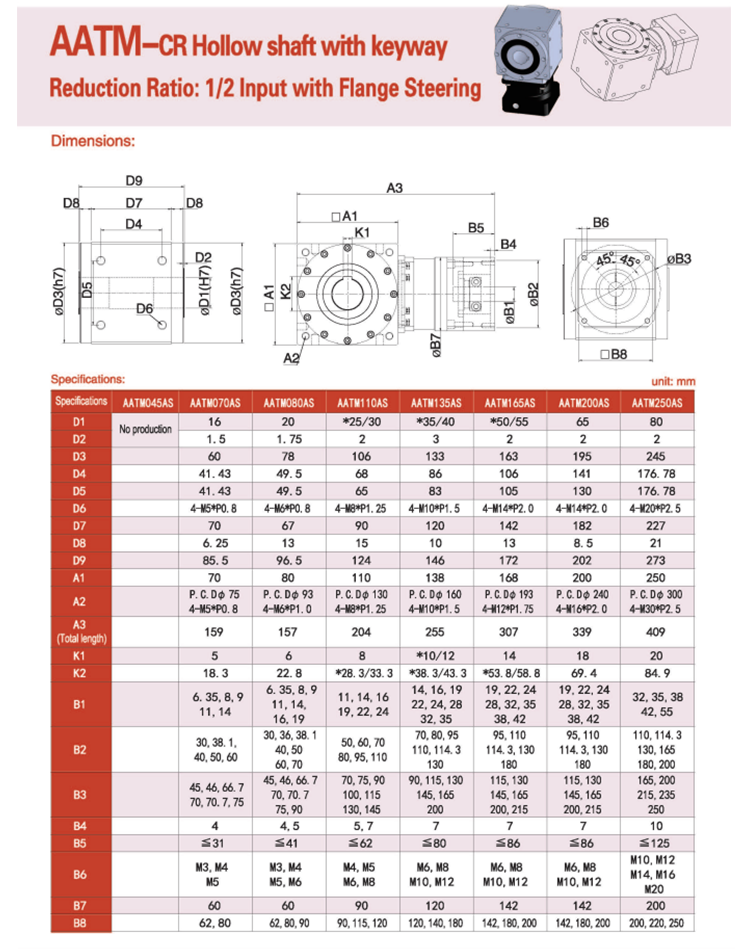

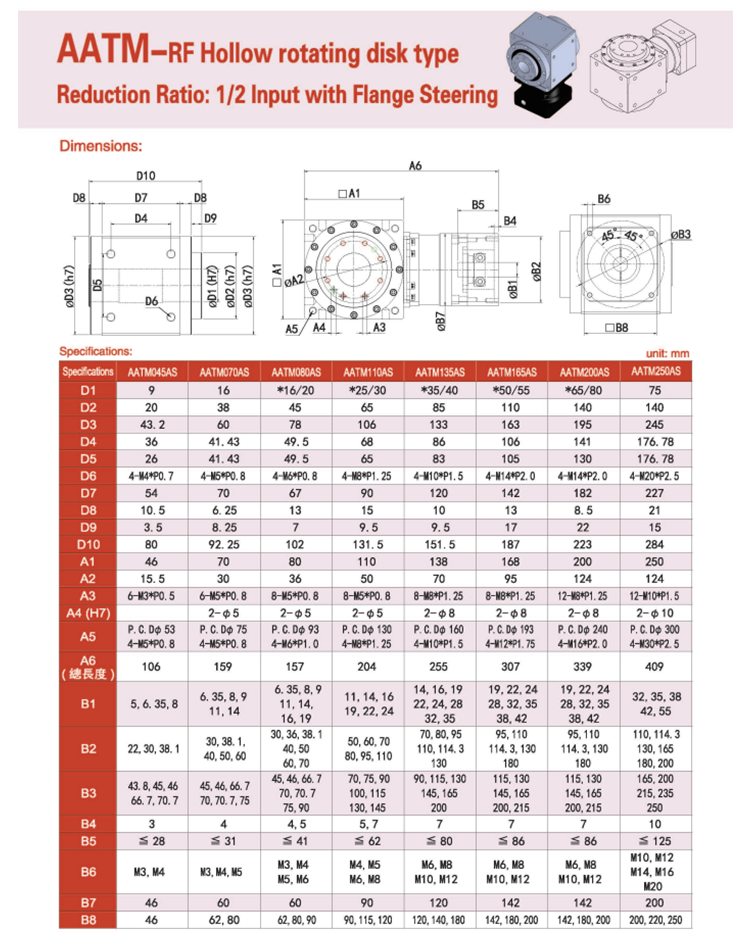

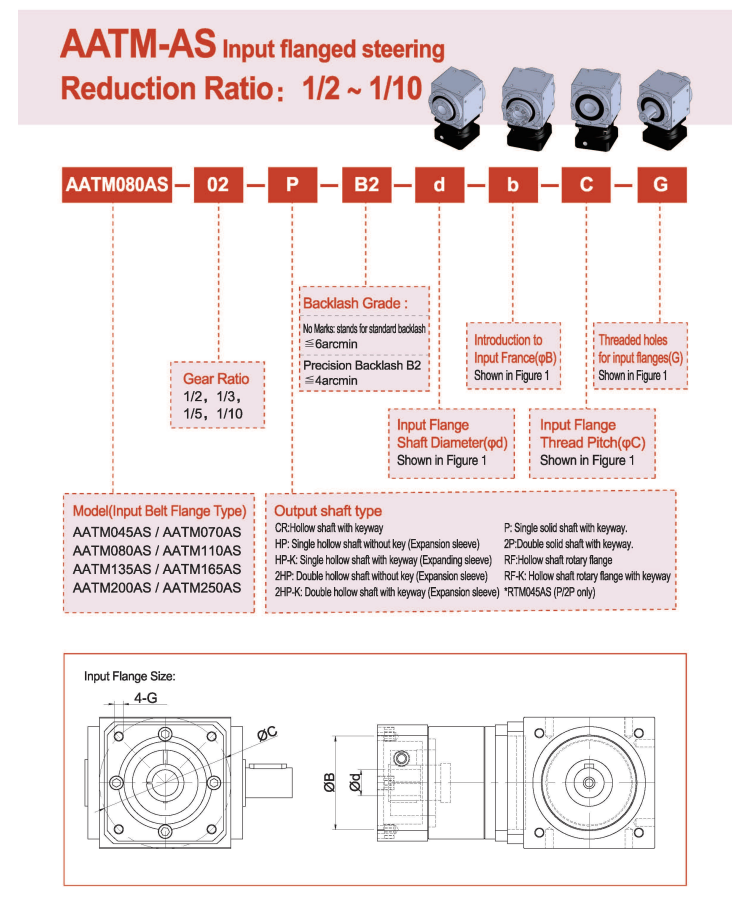

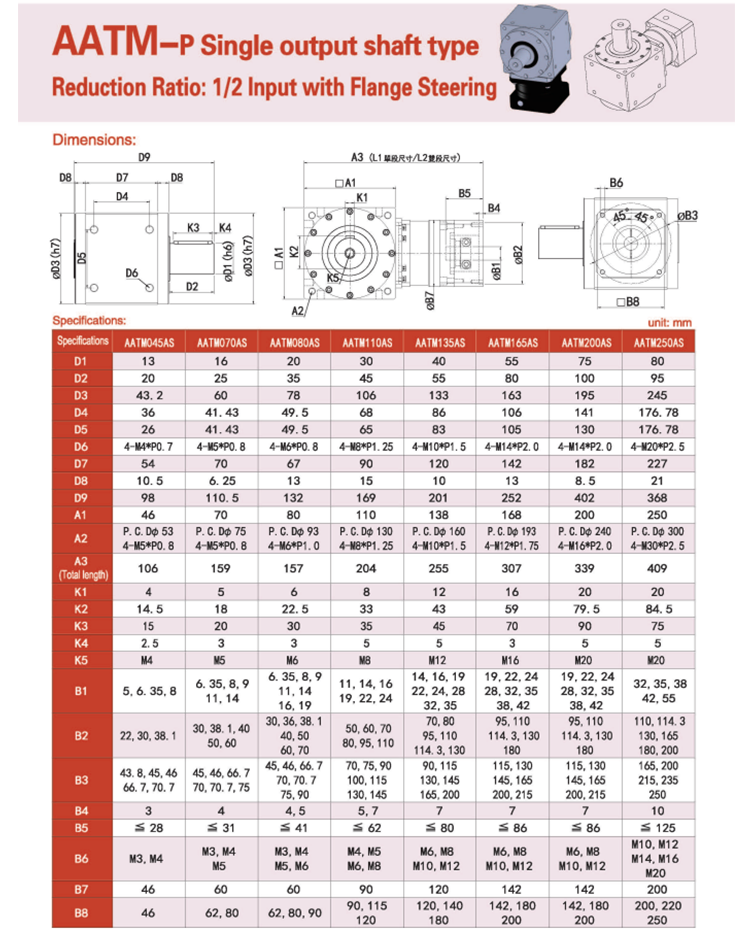

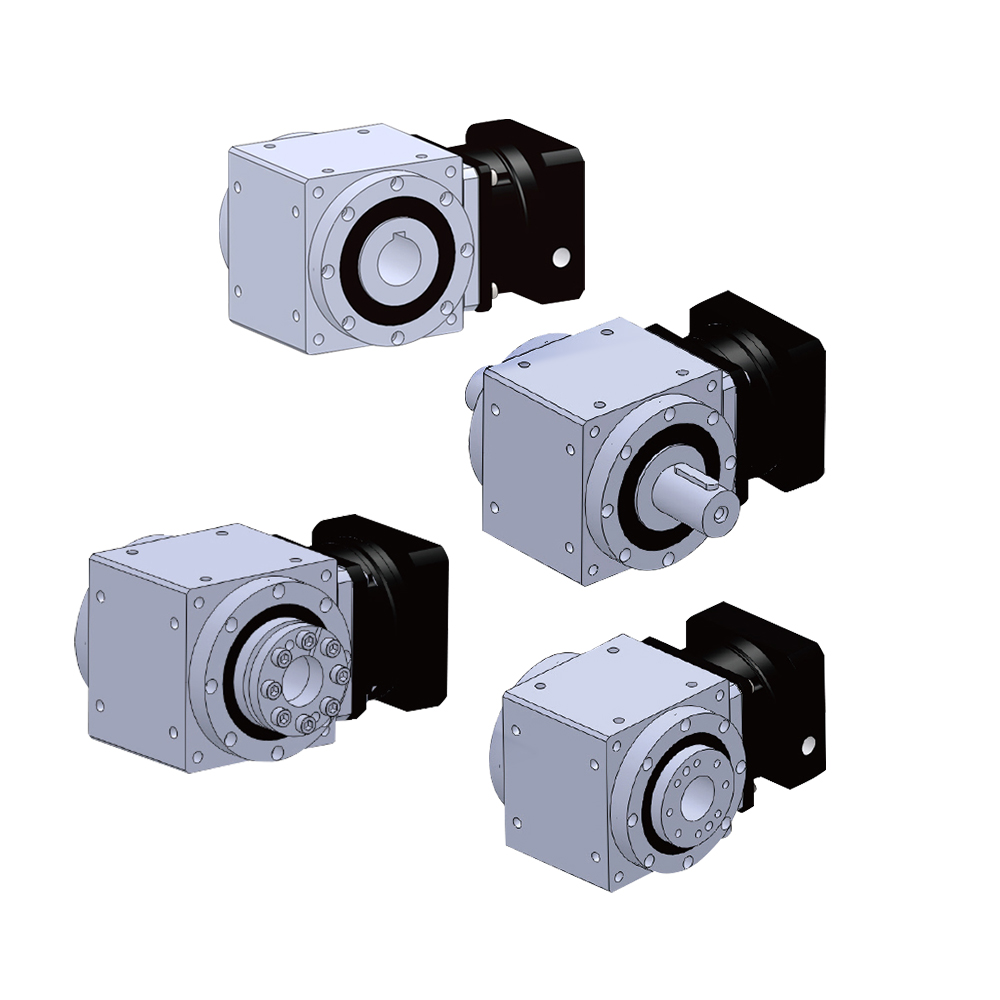

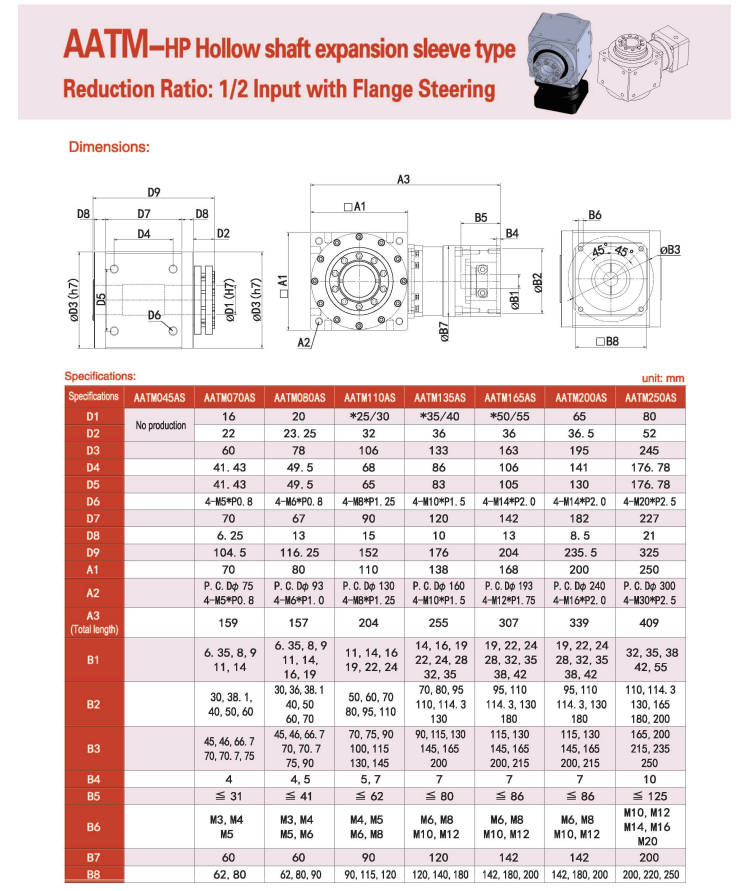

Technical Drawing

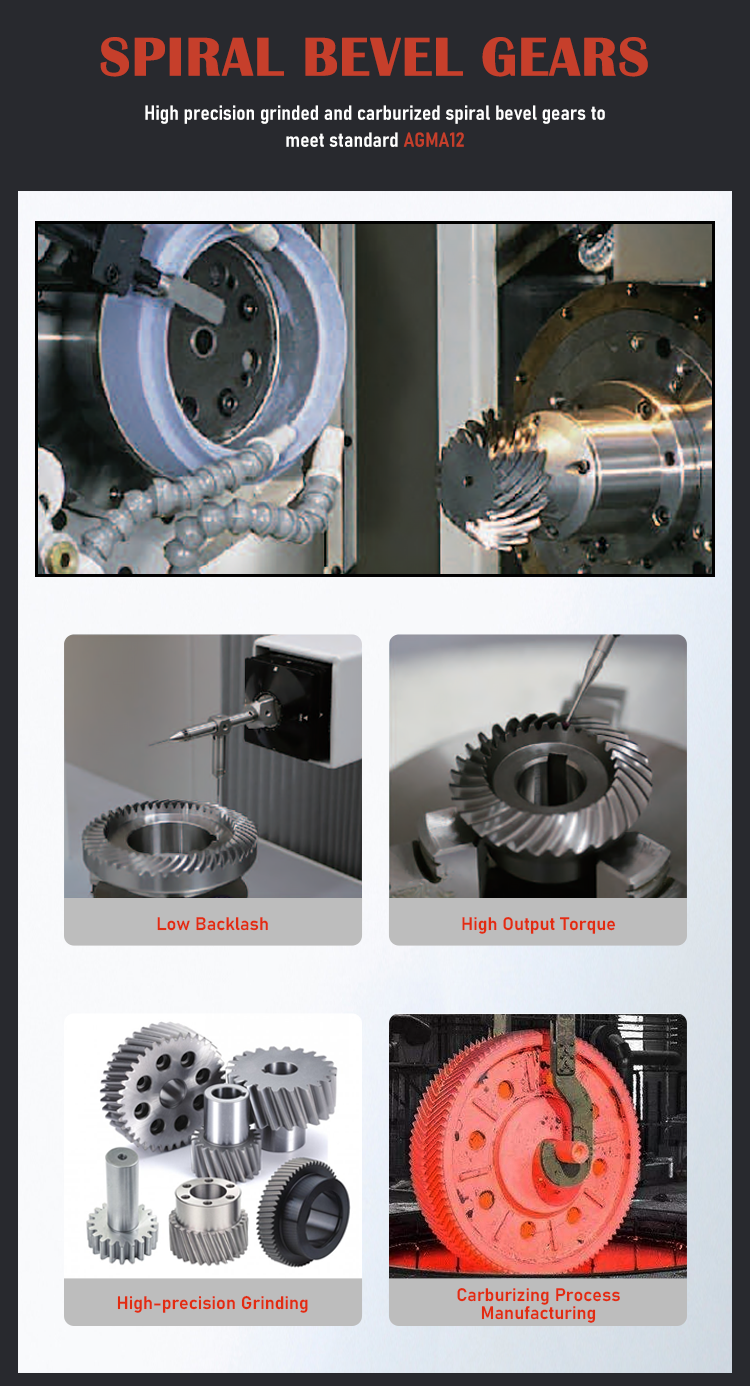

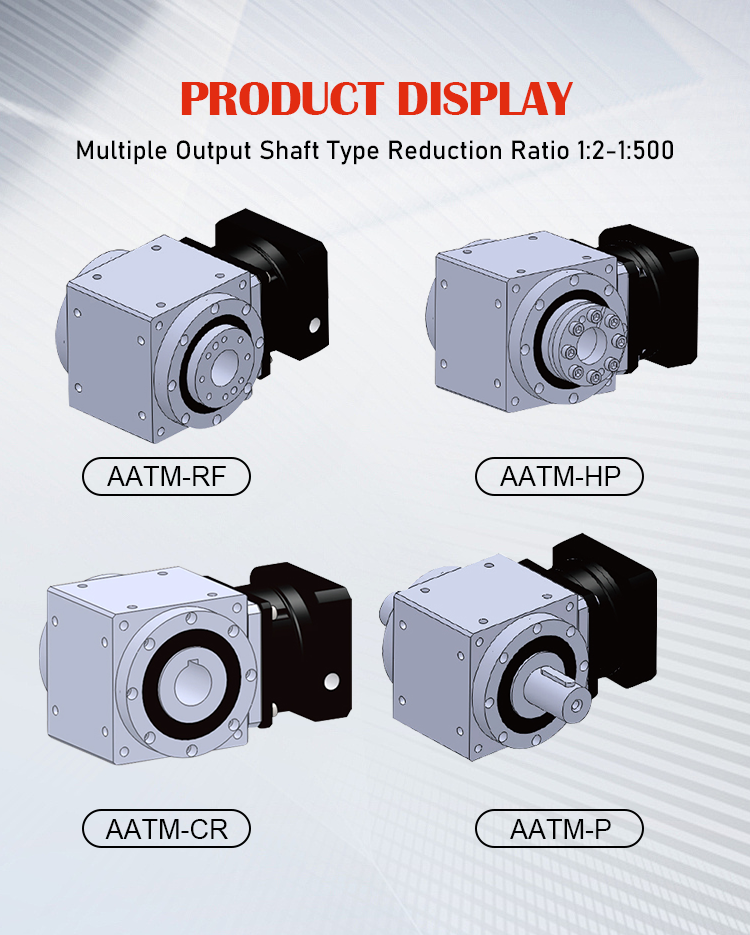

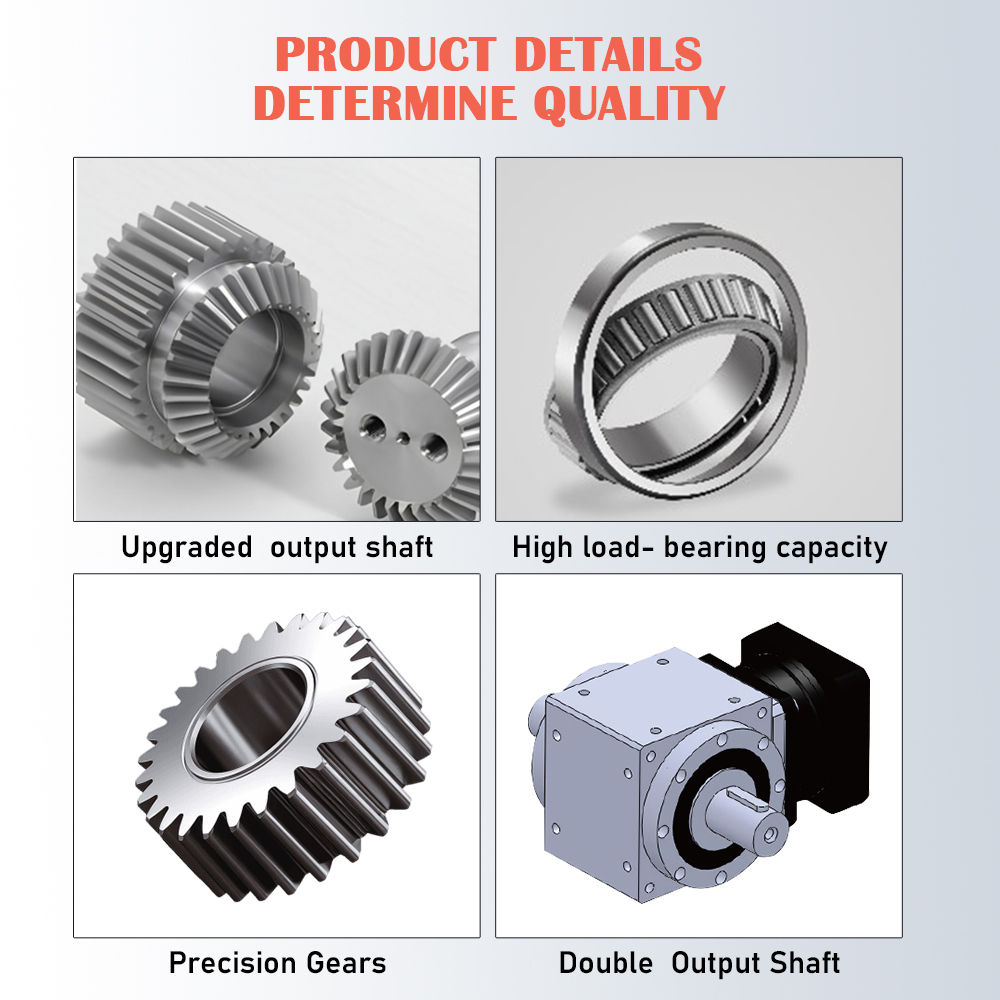

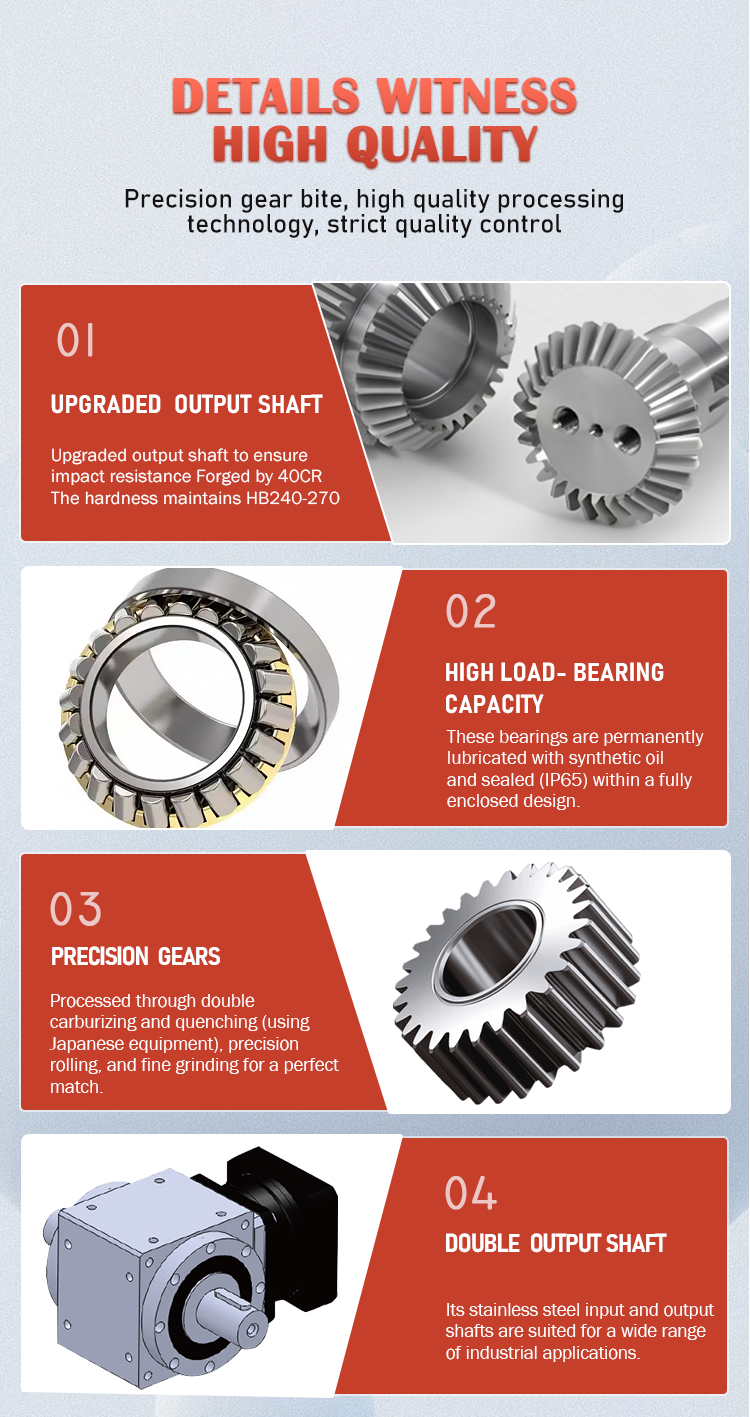

Product Components Showcase
Frequently Asked Questions
Are you a manufacturer or trader?
We are a manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
What are your main products?
We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
How to select a suitable gearbox?
Please show us your motor details or drawings. Also, please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of the above parameters, please contact us, then we will guide you step by step.
Can I get the 3D and 2D drawings?
Sure, we have the standard drawings. Also, the input size of the gearbox can be customized according to different motors.
Do you have an individual design service?
Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
What is your lead time?
Generally speaking, we keep many stocks of regular standard products. If there's a shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time; it will depend on the specific orders.
