Product Description

Robot Controller Banner Product Series
6 Axis Robot Controller Cycloidal Pin Wheel RV Gear Reducer

RV-EM gearbox is developed specifically for robotic industries. The compact size, lightweight design, and short dimensions of the RV-E gearbox eliminate the inertia of robot swings, achieving high-precision positioning.

The structure of the cycloidal pin gear speed reducer RV-EM series consists of a main bearing internal mechanism, double reduction gear, double column support mechanism, rolling contact mechanism, and pin gear mechanism.

Key Features & Advantages

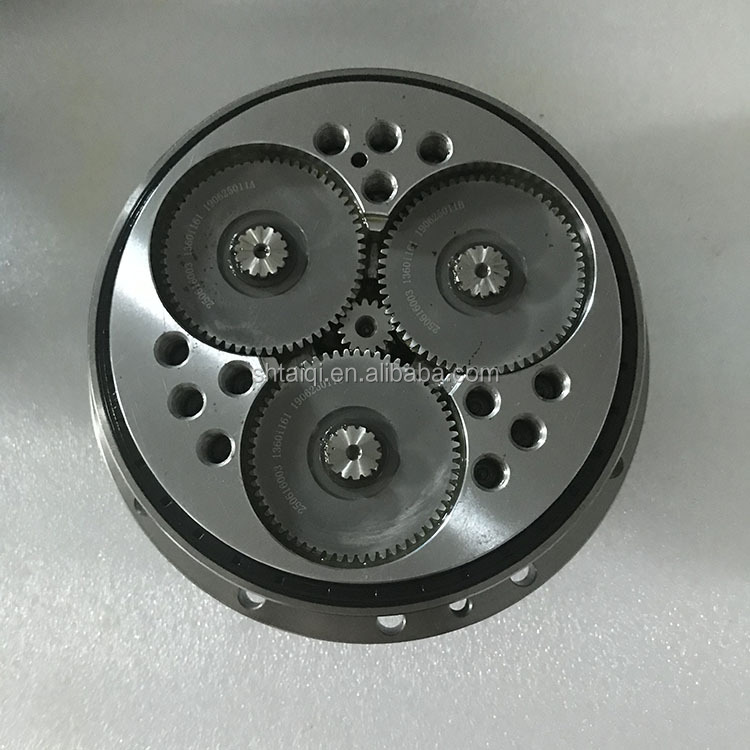

Technical Structure
✓
Low wear and long service life
✓
High torsional rigidity
✓
Strong impact resistance
✓
Internal main bearing included
✓
Lost motion < 1 arc. min.
✓
Small vibration & High efficiency
Product Specifications & Details Technical Data

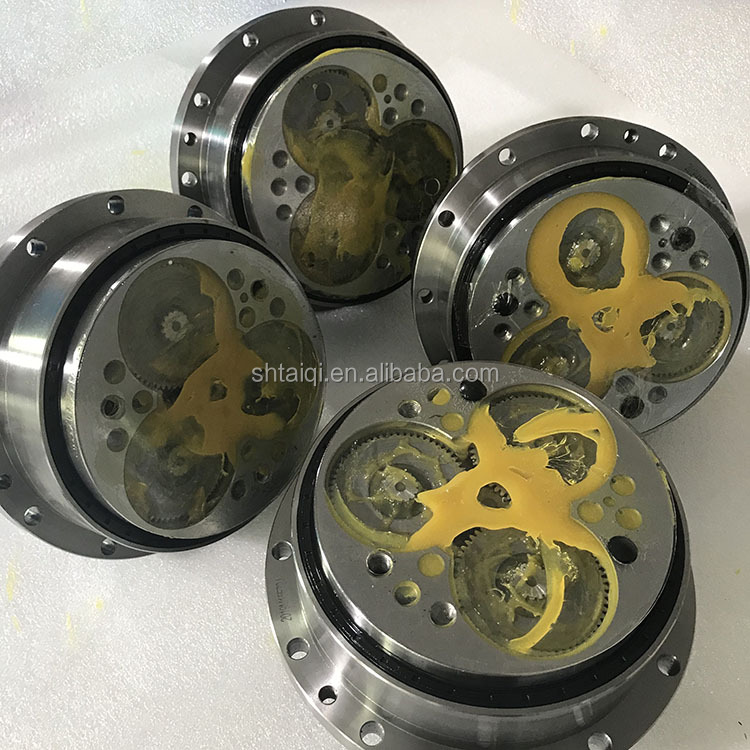

Detail 1

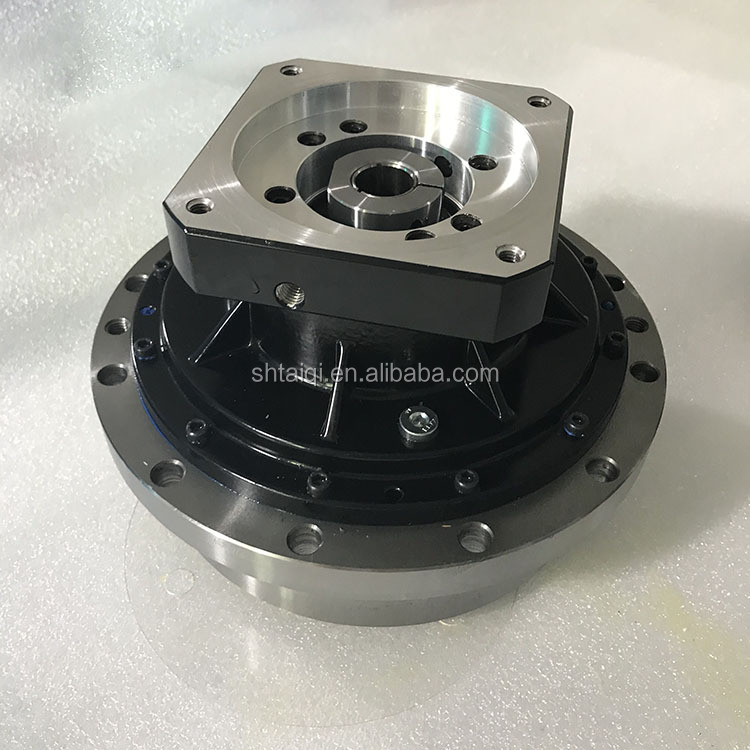

Detail 2

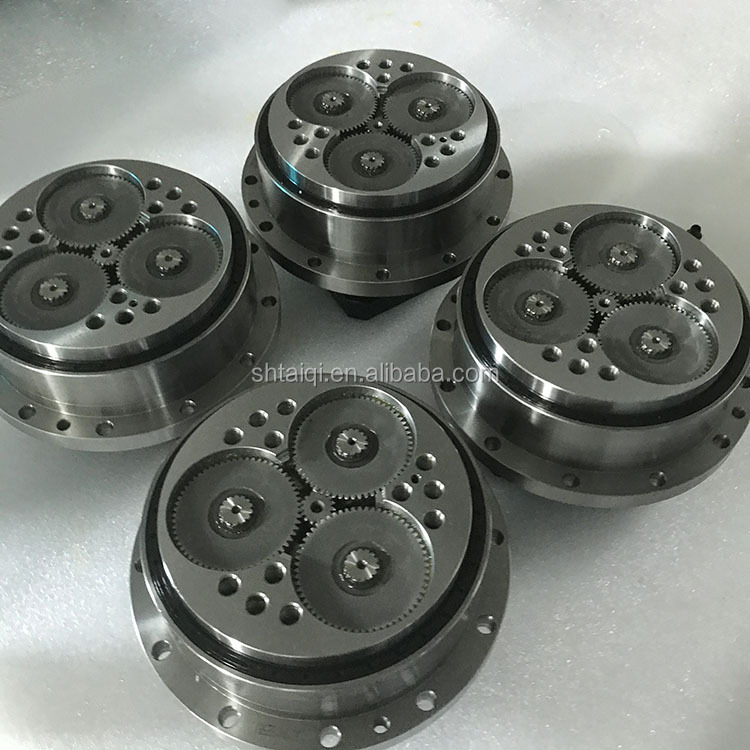

Detail 3

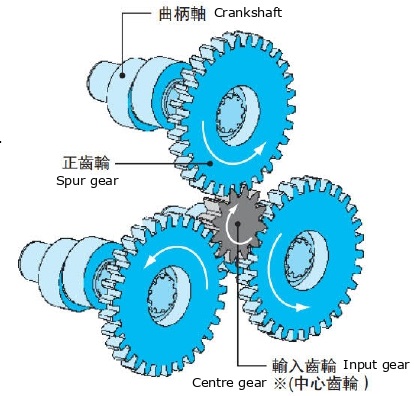

Drawing 1

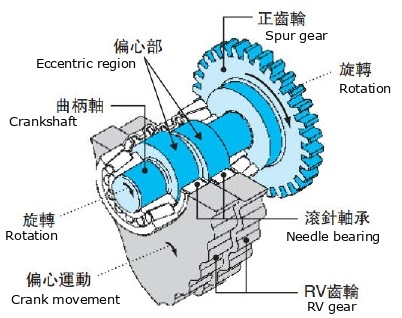

Drawing 2

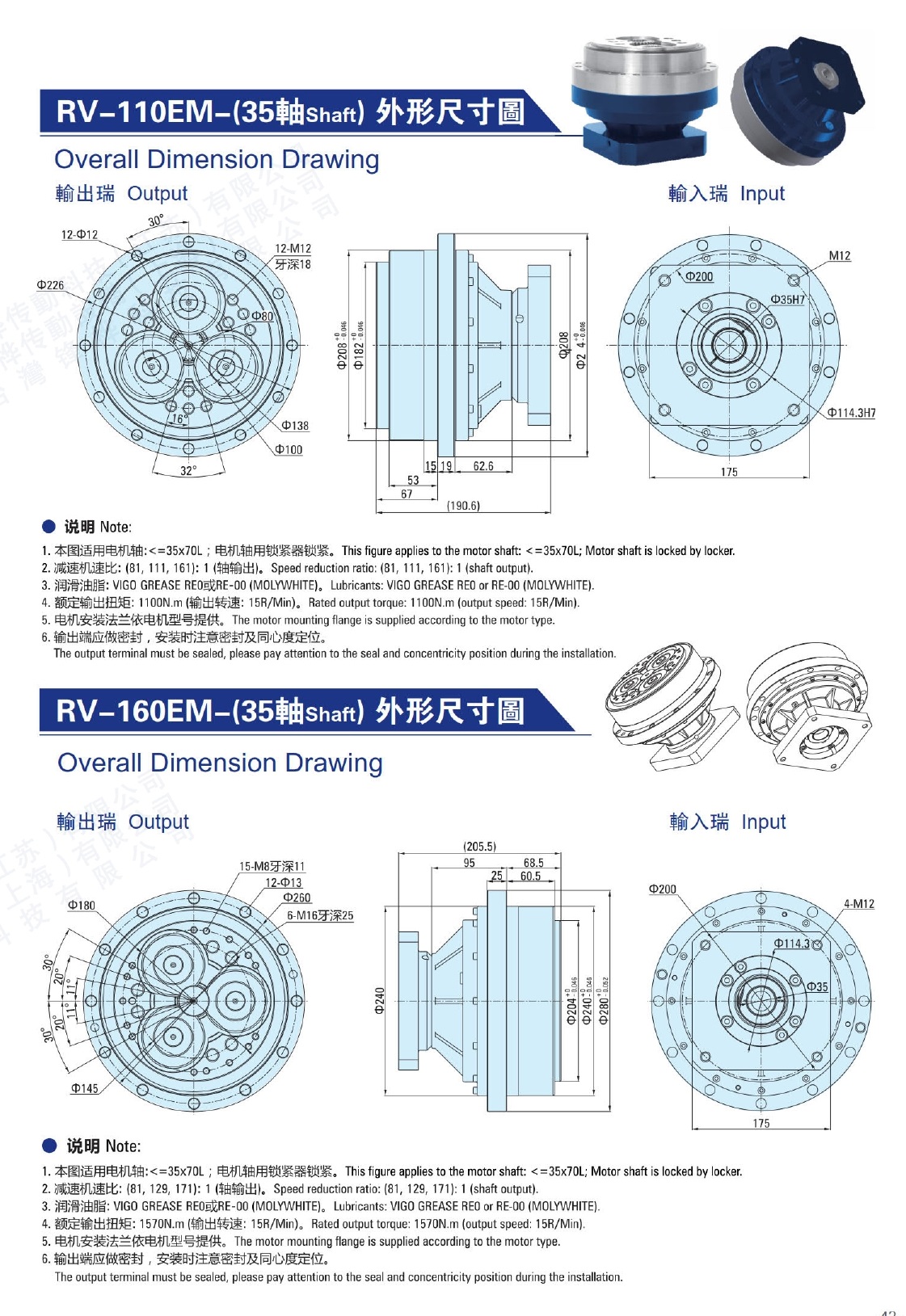

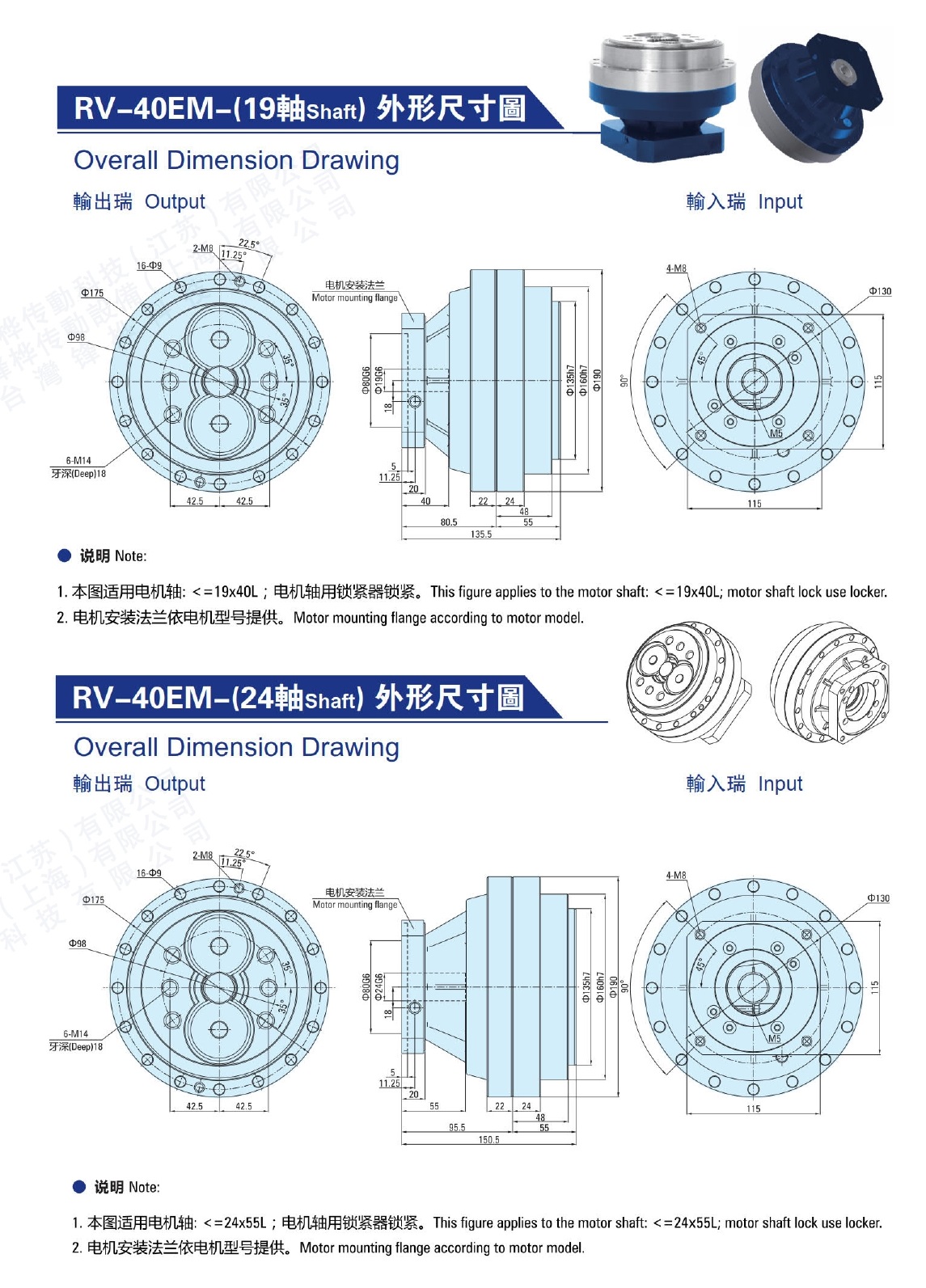

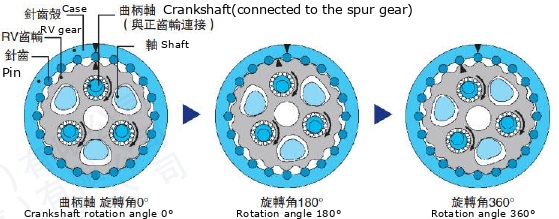

Component View Dimensions Model Chart
Factory & Quality Assurance Workshop Production Line Equipment Certificates
Customer Feedback & Logistics Feedback Shipping FAQ Preview
Frequently Asked Questions
1. What is the precision level of the RV-EM gearbox? The RV-EM series offers extremely high precision with lost motion and backlash levels of less than 1 arc-minute, ensuring accurate positioning for robotic arms.
2. Is the RV-EM reducer suitable for high-speed robot joints? Yes, its compact and lightweight design effectively eliminates inertia during high-speed swings, making it ideal for 6-axis robot joints.
3. Does the gearbox include motor coupling parts? Yes, major motor coupling parts are included to ensure seamless integration with various industrial motors.
4. How does the cycloidal pin wheel design benefit the user? The cycloidal design provides high torsional rigidity and strong impact resistance, which results in low wear and an extended service life.
5. What is the typical maintenance requirement? Due to the rolling contact mechanism and internal main bearing design, these reducers exhibit excellent starting efficiency and require minimal maintenance under standard operating conditions.
6. Can it handle heavy vibrations? The RV-EM series is specifically engineered for small vibration output, maintaining stability even in demanding industrial environments.
