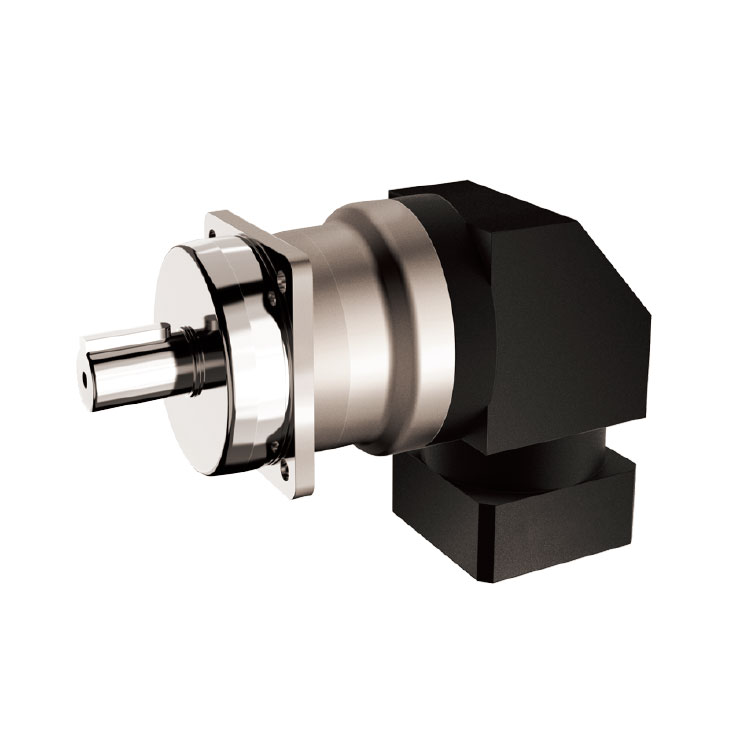

TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
1 / 5
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color
TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color

TQG 90 Degree Right Angle EVS Series Nema 34 Planetary Gearbox Reducer with Bevel Gears Speed Reducers in Red Color

Send Inquiry

Product Description

Product Image 1
Product Image 2
Product Description
Product Detail Image 1

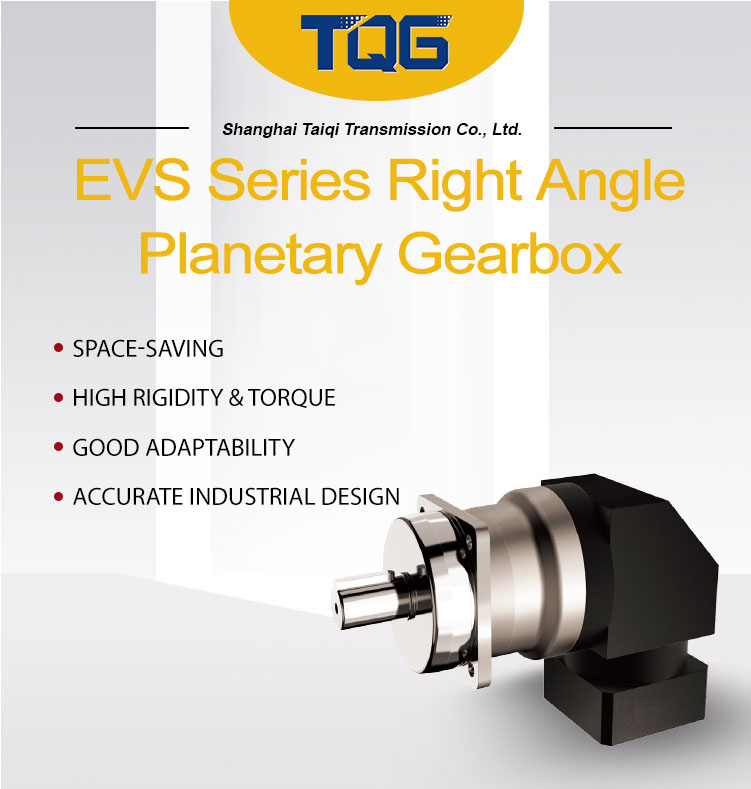

Product Detail Image 2
Technical Specifications
Model EVS 062, EVS075, EVS100, EVS142, EVS180
Ratio 3 ~ 20
Backlash P0: ≤ 4
P1: ≤ 6
P2: ≤ 8
Matching Motor Stepper motor, servo motor, BLDC motor
Mounting Position Any Direction
Efficiency ≥95%

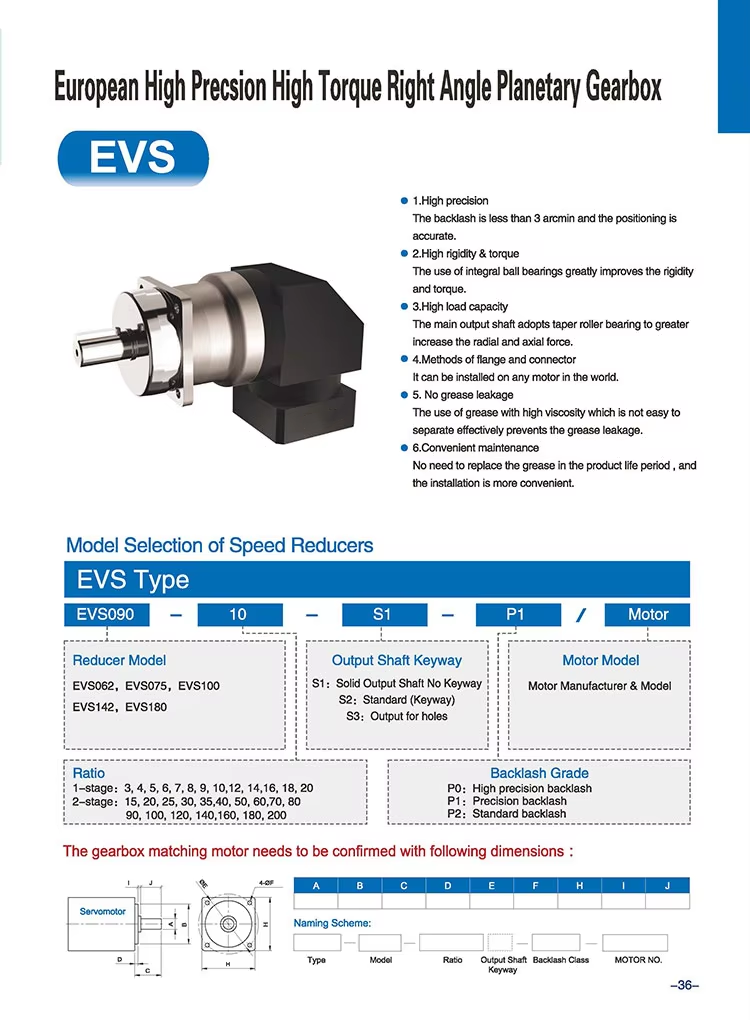

Product Options 1

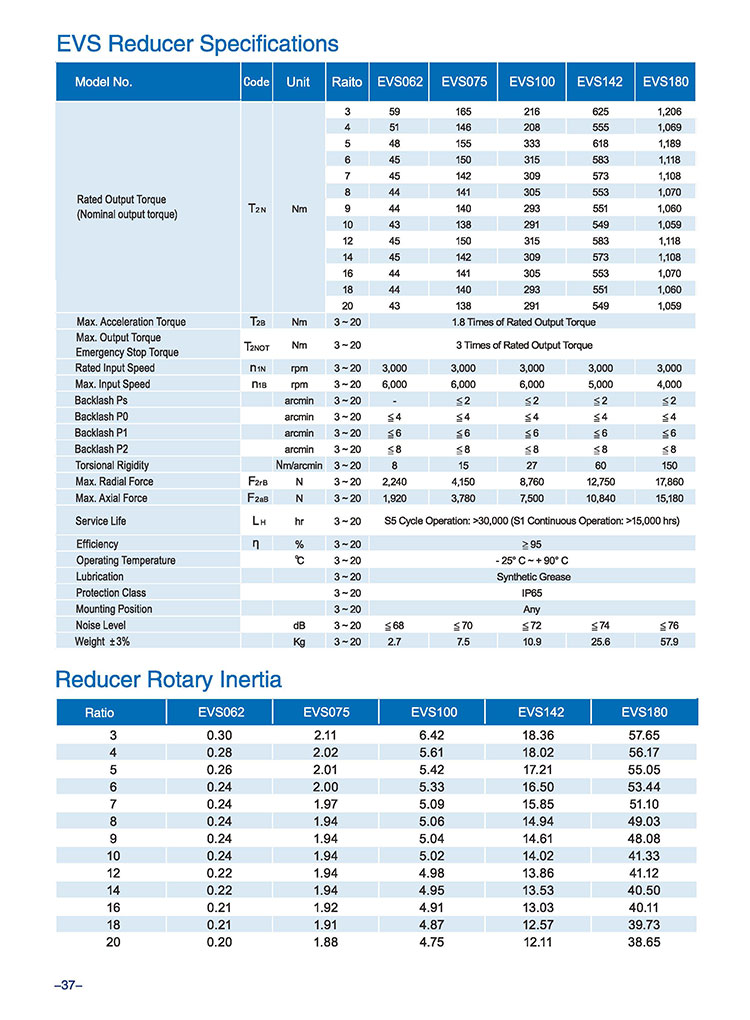

Product Options 2
Product Category Map
Company Profile
Company Overview 1
Company Overview 2
Our Factory
Factory Environment
Certificate
Qualification Certificate
Customer Feedback
Customer Feedback
Logistics and Payment
Logistics and Payment Methods
FAQ
FAQ Overview
What is the backlash specification of the EVS series planetary gearbox?
The EVS series planetary gearbox offers high-precision backlash levels tailored for different needs: P0 ≤ 4 arcmin, P1 ≤ 6 arcmin, and P2 ≤ 8 arcmin, ensuring accurate and stable transmission performance.
What types of motors are compatible with these gearboxes?
Our EVS planetary gearboxes are highly compatible and can be easily configured to match stepper motors, servo motors, and brushless DC (BLDC) motors from various brands.
What are the available reduction ratios for the EVS series?
The standard reduction ratios range from 3 to 20, which covers most automation speed reduction and torque enhancement needs. Custom ratios can also be evaluated.
Can the gearbox be mounted in any orientation?
Yes. The planetary gearbox is designed to support any mounting position, allowing you to install it in any direction according to your mechanical design.
What is the typical transmission efficiency of the EVS series?
Thanks to its high-quality internal gearing and assembly precision, the EVS series planetary gearbox reaches a high transmission efficiency of ≥95%, minimizing energy loss.
