Product Description

Planetary Gearbox Banner 1 Planetary Gearbox Banner 2

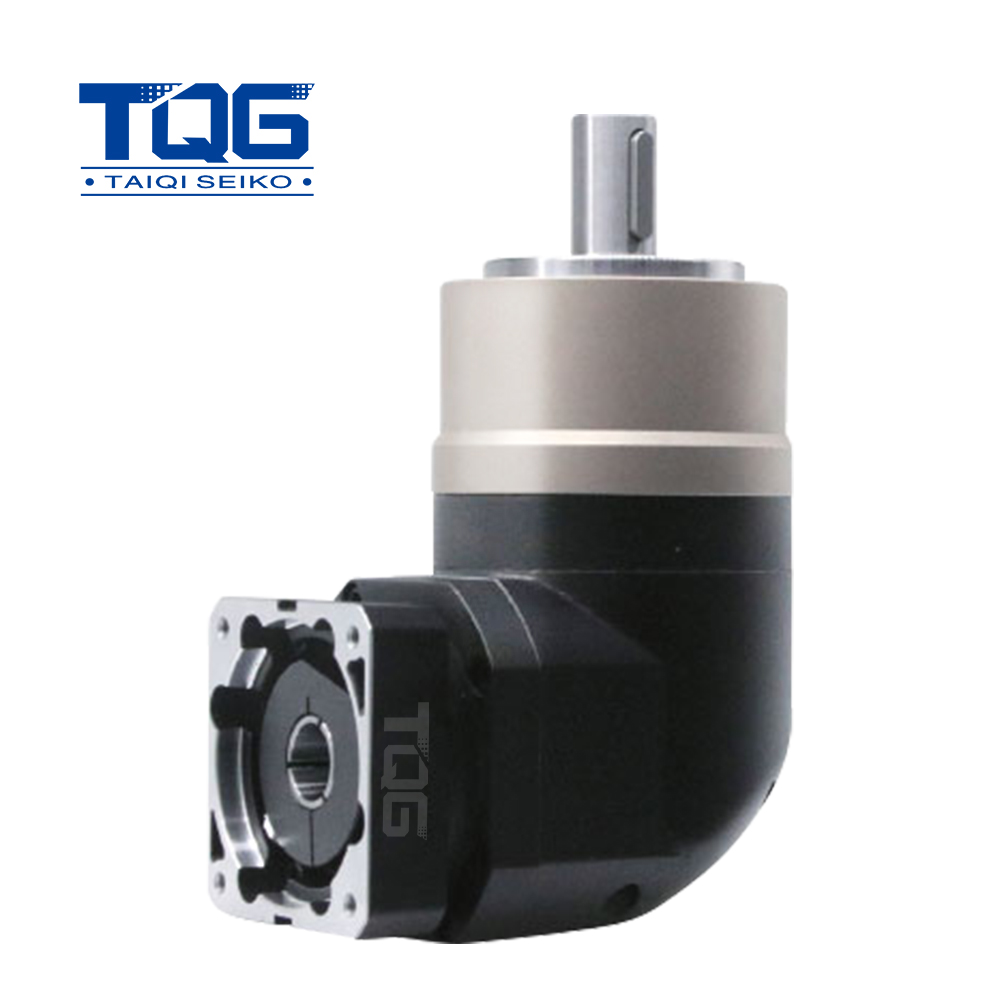

Planetary Gearbox EVL Series Showcase

Planetary Gearbox EVL Series

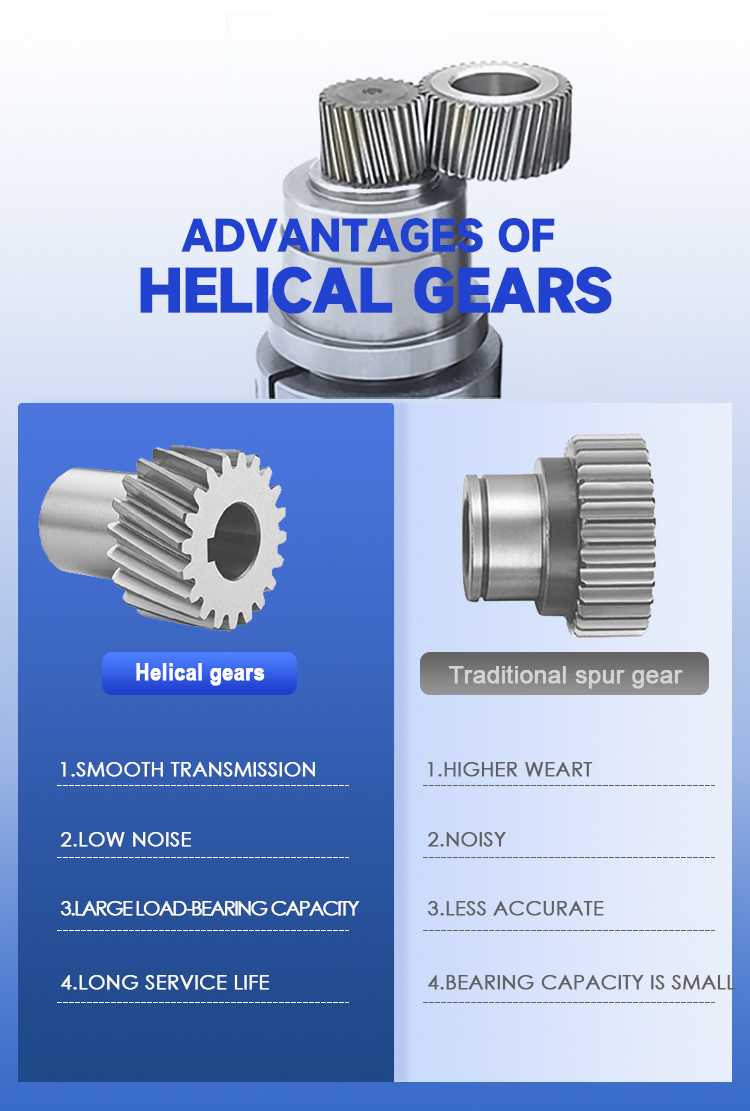

  • 1. Quiet operation Helical gears are used to achieve smooth and quiet operation.
  • 2. High precision The backlash is less than 3 arcmin and the positioning is accurate.
  • 3. High rigidity & torque The use of integral ball bearings greatly improves the rigidity and torque.
  • 4. Methods of flange and connector It can be installed on any motor in the world.
  • 5. No grease leakage The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
  • 6. Convenient maintenance No need to replace the grease in the product life period , and the installation is more convenient.

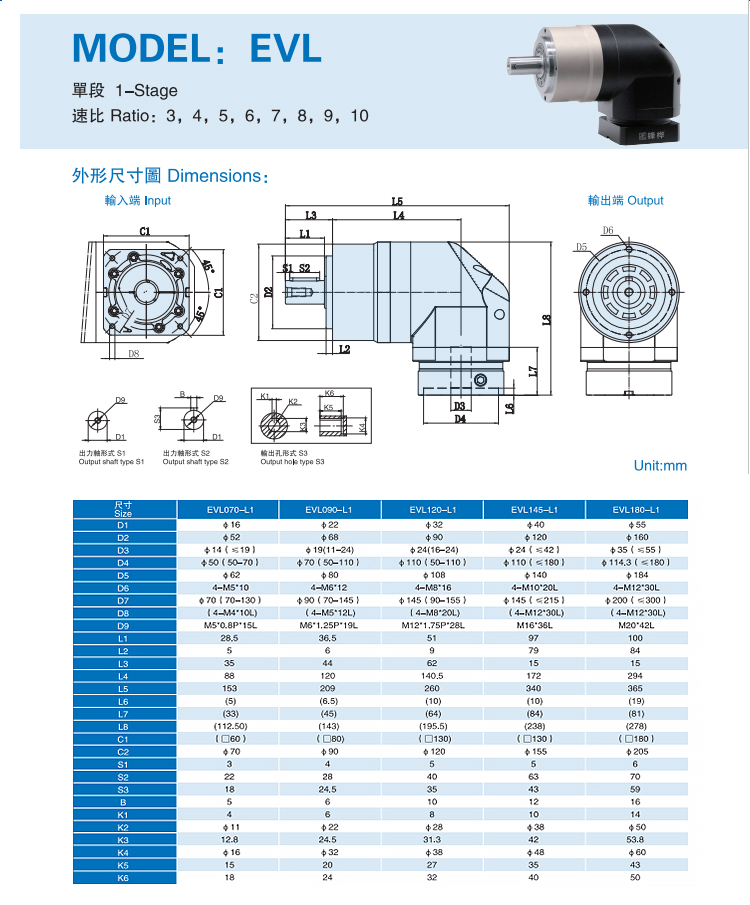

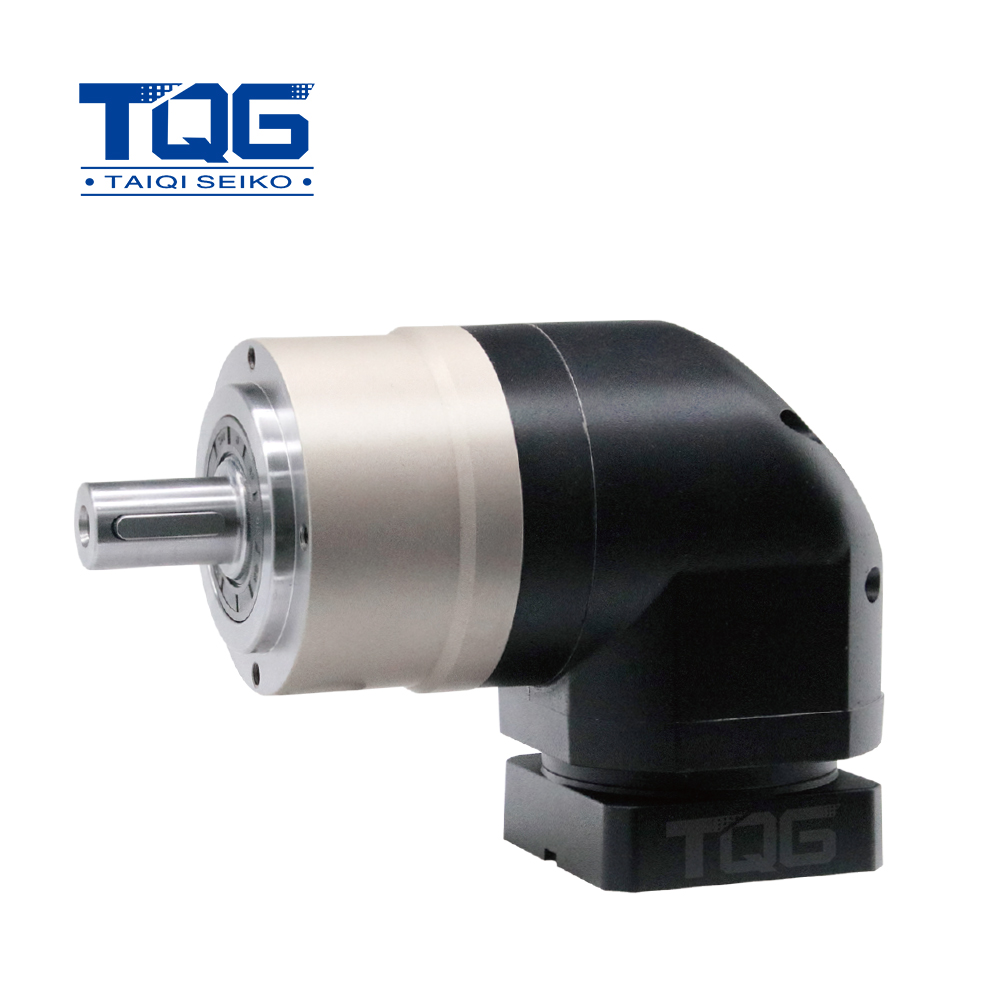

Planetary Gearbox EVL Series Technical Diagram

Technical Parameters

Precision Grade P0 ( ≤ 2 arcmin, ≤ 4 arcmin ) P1( ≤ 4 arcmin, ≤ 6 arcmin )
Service Life 20000h
Ratio 1:3~1:200
Rated Torque 3~2000Nm
Mounting Position Any Direction

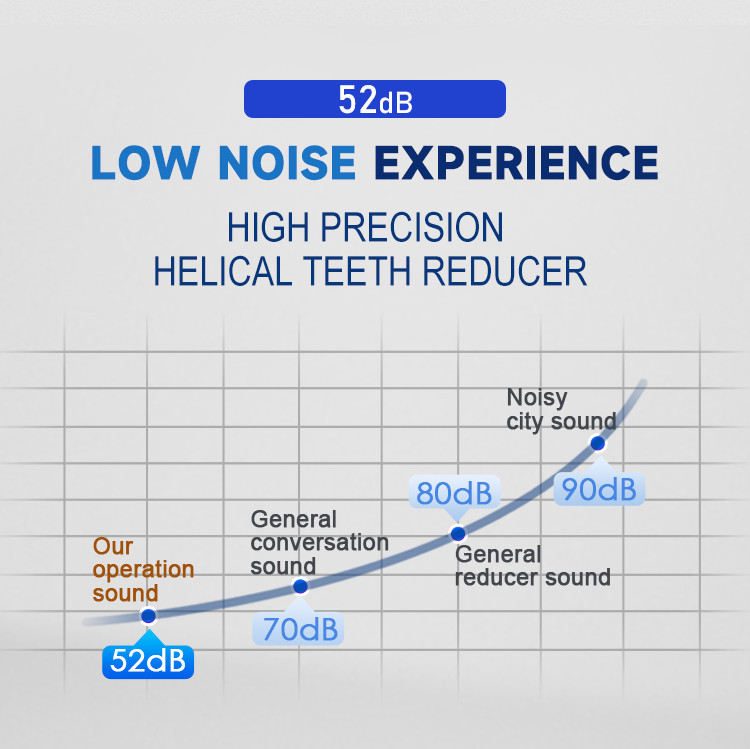

Noise Level ≤ 70 ~ ≤ 56

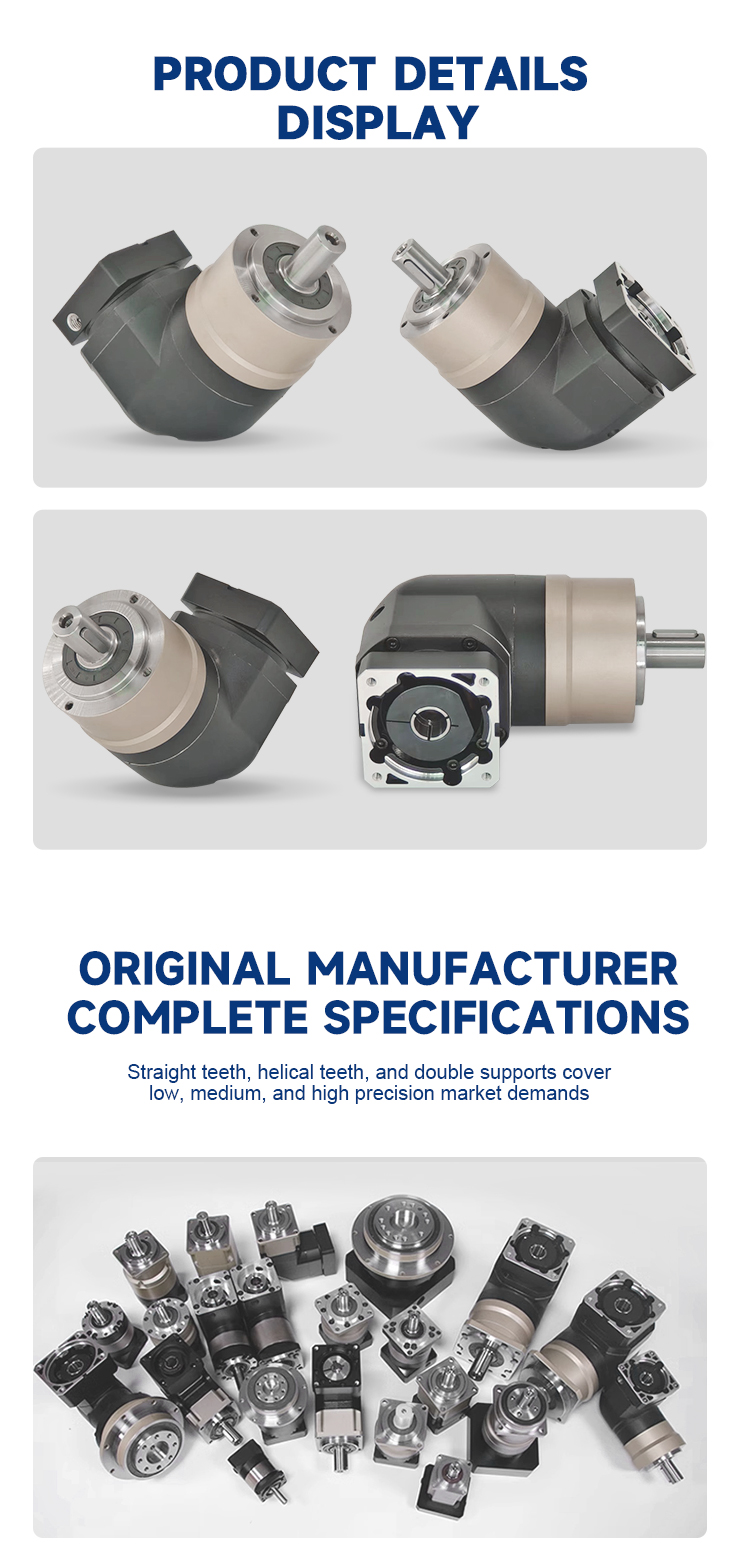

Product Gallery & Detail Views

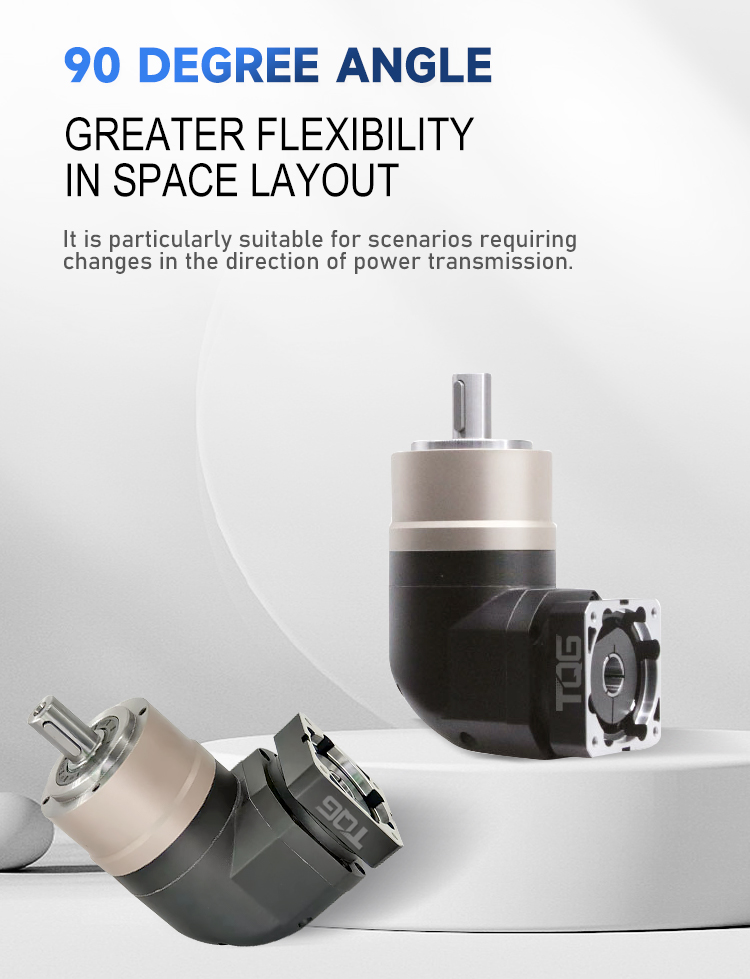

EVL Series Detail 1
EVL Series Detail 2
EVL Series Detail 3
EVL Series Detail 4
EVL Series Detail 5
EVL Series Detail 6
EVL Series Detail 7
EVL Series Detail 8

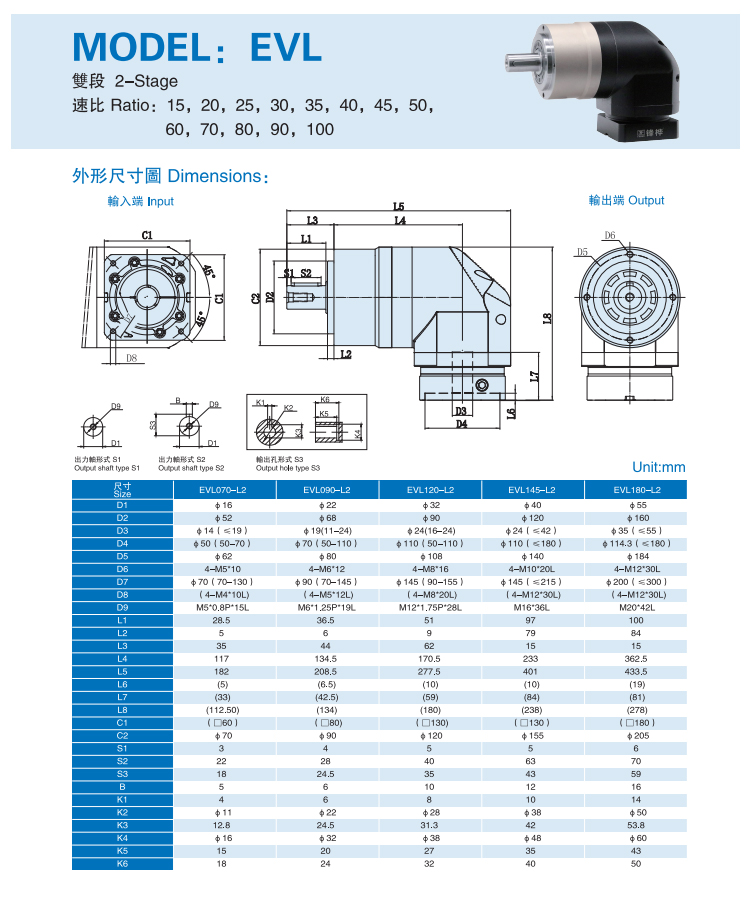

EVL Series Detail 9

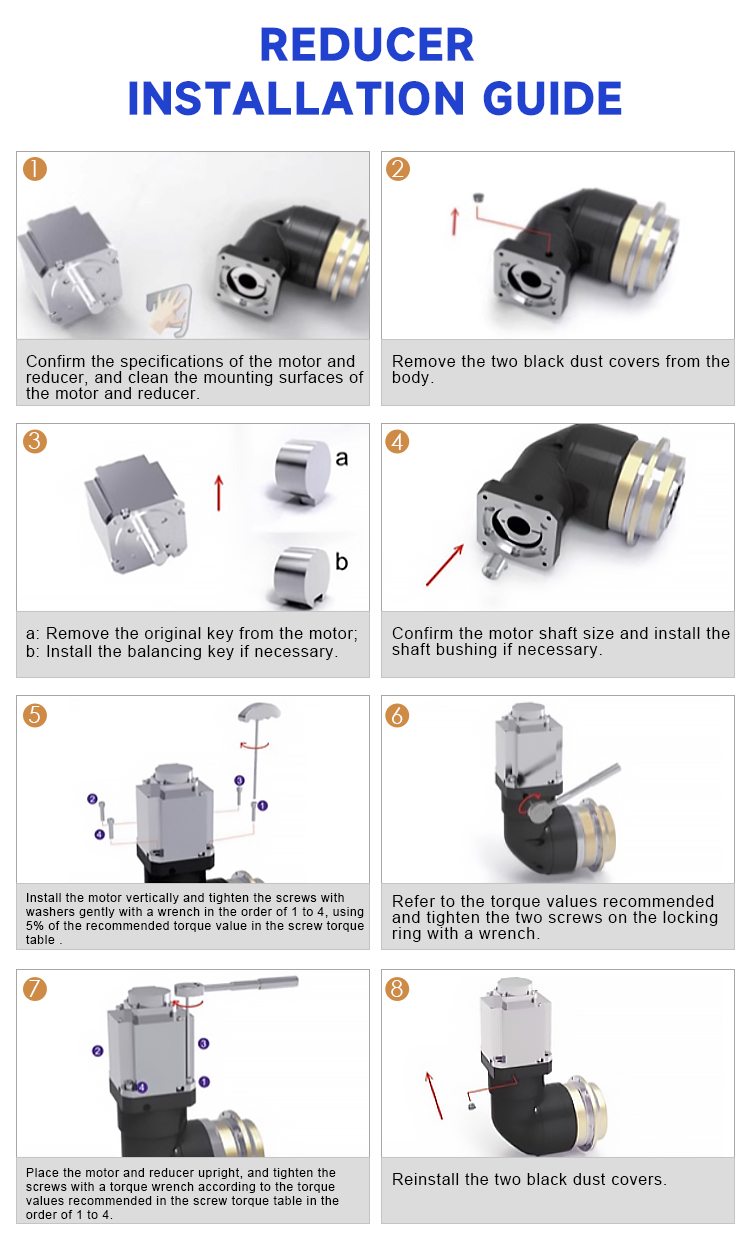

EVL Series Detail 10
EVL Series Detail 11
EVL Series Detail 12
EVL Series Detail 13

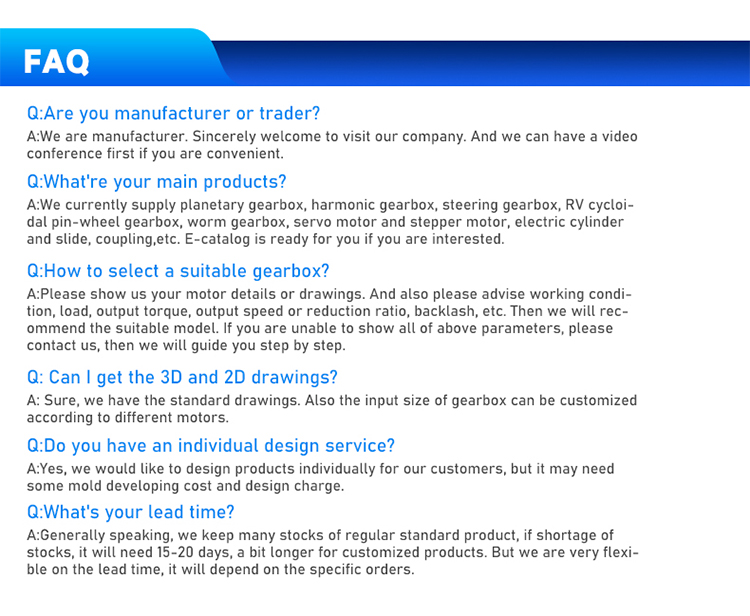

EVL Series Detail 14

Frequently Asked Questions (FAQ)

What are the key advantages of the Planetary Gearbox EVL Series?
The EVL Series features helical gears for exceptionally smooth and quiet operation, high-precision positioning (backlash < 3 arcmin), integral ball bearings for enhanced rigidity and torque, universal motor installation capability, and a leak-proof maintenance-free design.
What precision grades does the EVL Series offer?
The EVL series provides two levels of precision: P0 grade (with backlash options of ≤ 2 arcmin and ≤ 4 arcmin) and P1 grade (with backlash options of ≤ 4 arcmin and ≤ 6 arcmin) to meet various high-positioning requirements.
How does the EVL Series prevent grease leakage?
It utilizes a premium grease formula with exceptionally high viscosity that does not separate easily. This specialized design effectively prevents grease leakage throughout the product's entire operating lifespan.
Can the EVL Series gearbox be mounted on any motor?
Yes, with its flexible flange and connector mounting interface, it is highly compatible and can be easily installed on virtually any motor globally.
What is the expected service life and rated torque range of this gearbox?
The EVL Series is designed for long-term durability with an expected service life of 20,000 hours, supporting a rated torque output range from 3Nm up to 2000Nm.
Does the gearbox have specific mounting orientation requirements?
No, the EVL Series Planetary Gearbox can be mounted in any direction, providing maximum installation flexibility for various system layouts and spaces.
