Product Description

Planetary Gearbox EVB Series Intro Image 1
Planetary Gearbox EVB Series Intro Image 2

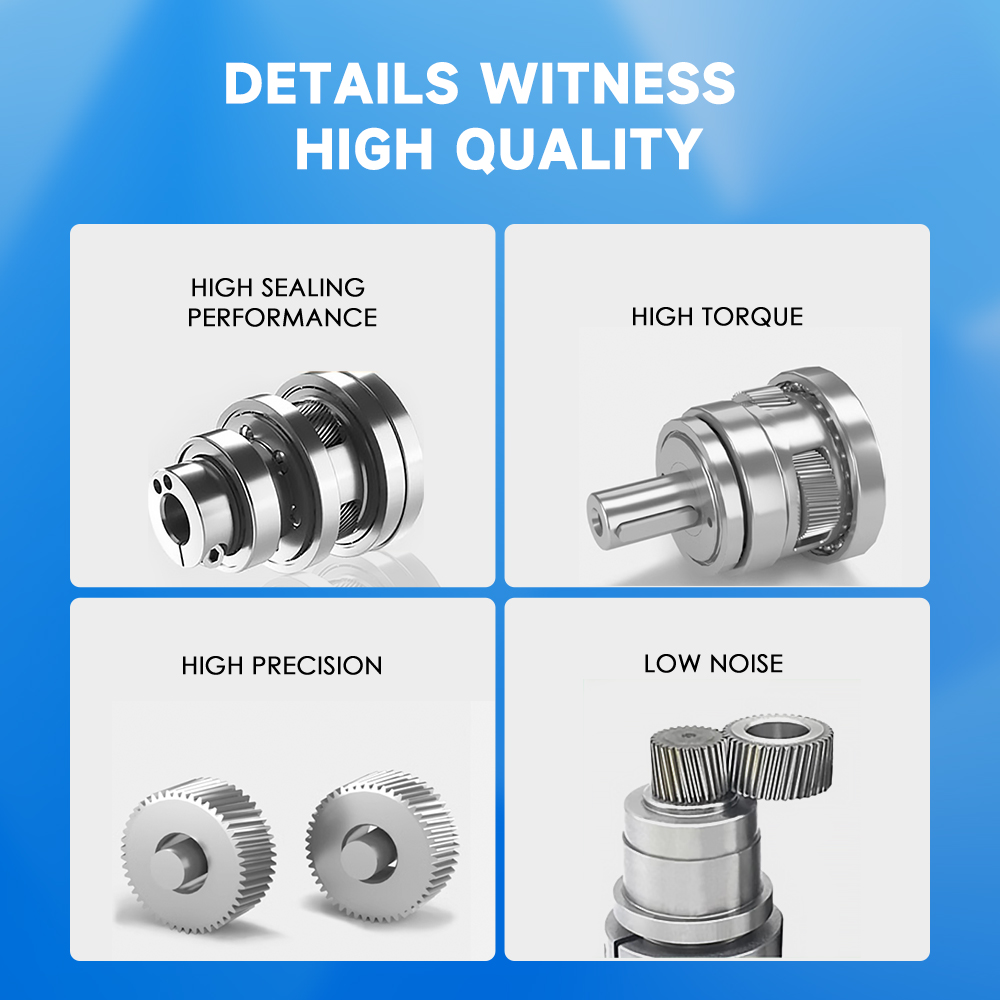

Planetary Gearbox EVB Series Product Details
Planetary Gearbox EVB Series
1
Quiet operation
Helical gears are used to achieve smooth and quiet operation.
2
High precision
The backlash is less than 3 arcmin and the positioning is accurate.
3
High rigidity & torque
The use of integral ball bearings greatly improves the rigidity and torque.
4
Methods of flange and connector
It can be installed on any motor in the world.
5
No grease leakage
The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
6
Convenient maintenance
No need to replace the grease in the product life period, and the installation is more convenient.

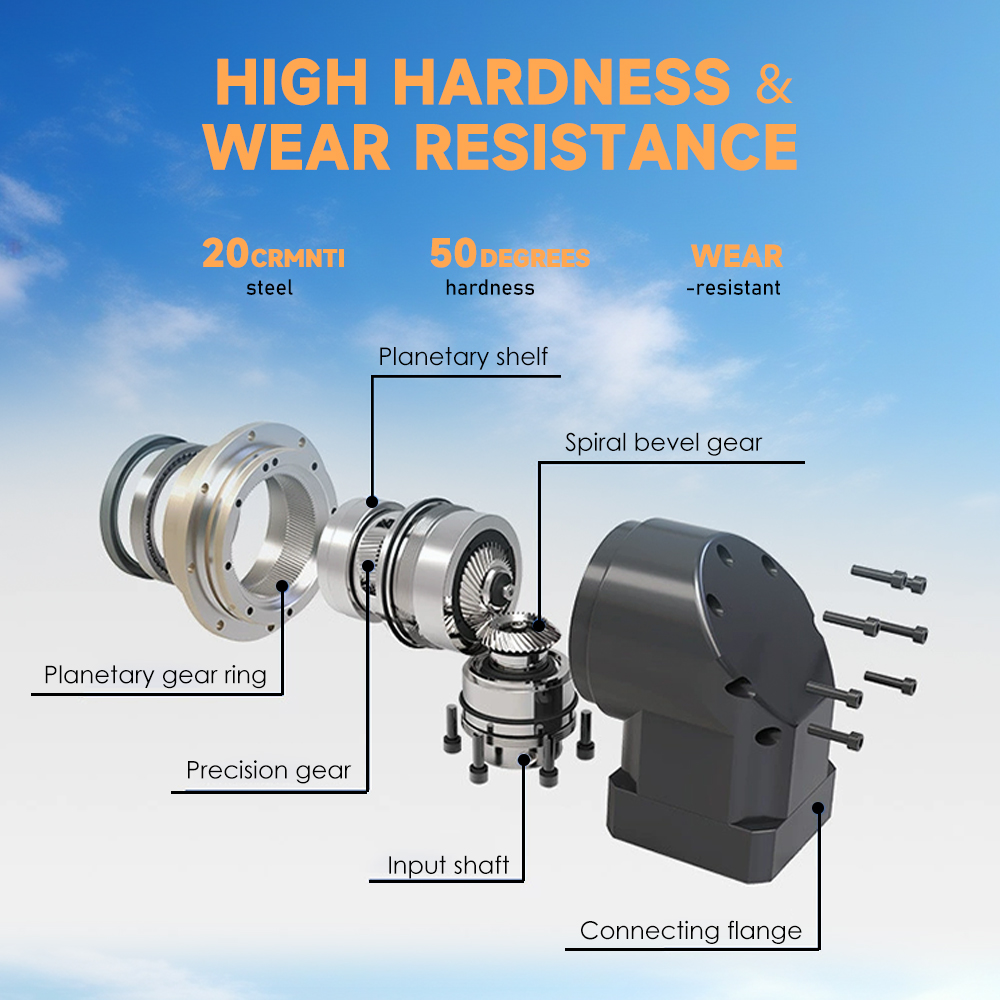

Planetary Gearbox EVB Series Diagram
Precision Grade P0 ( ≤ 2 arcmin, ≤ 4 arcmin )
P1( ≤ 4 arcmin, ≤ 6 arcmin )
Service Life 20000h
Ratio 1:3 ~ 1:100
Rated Torque 10 ~ 2000Nm
Mounting Position Any Direction
Noise Level ≤ 70 ~ ≤ 56
EVB Gallery 1
EVB Gallery 2
EVB Gallery 3
EVB Gallery 4
EVB Gallery 5
EVB Gallery 6
EVB Gallery 7
EVB Gallery 8
EVB Gallery 9
EVB Gallery 10
EVB Gallery 11
EVB Gallery 12
EVB Gallery 13
Frequently Asked Questions
Q1: What are the main features of the Planetary Gearbox EVB Series?
The EVB Series is characterized by quiet operation using helical gears, high precision with backlash less than 3 arcmin, high rigidity and torque using integral ball bearings, and universal flange/connector compatibility. It also requires no maintenance or grease replacement during its service life and prevents leakage.
Q2: What is the precision grade and backlash level of these gearboxes?
The gearbox offers different precision levels: P0 (with a backlash of ≤ 2 arcmin or ≤ 4 arcmin) and P1 (with a backlash of ≤ 4 arcmin or ≤ 6 arcmin) to meet various application requirements.
Q3: How long is the service life, and what torque range does it support?
The EVB Series has a designed service life of up to 20,000 hours, and it supports a wide rated torque range from 10Nm to 2,000Nm.
Q4: Are there any specific mounting position restrictions?
No, the EVB Series Planetary Gearbox can be mounted in any direction/position, providing great installation flexibility for different systems.
Q5: How does the gearbox ensure there is no grease leakage?
It utilizes a high-viscosity grease that does not separate easily. This effectively prevents any leakage and eliminates the need to replace grease during the product's entire lifetime.
Q6: What is the noise level during operation?
Due to the high-quality helical gear design, the noise level is kept extremely low, ranging from ≤ 70 down to ≤ 56 depending on the specific model and load conditions.
