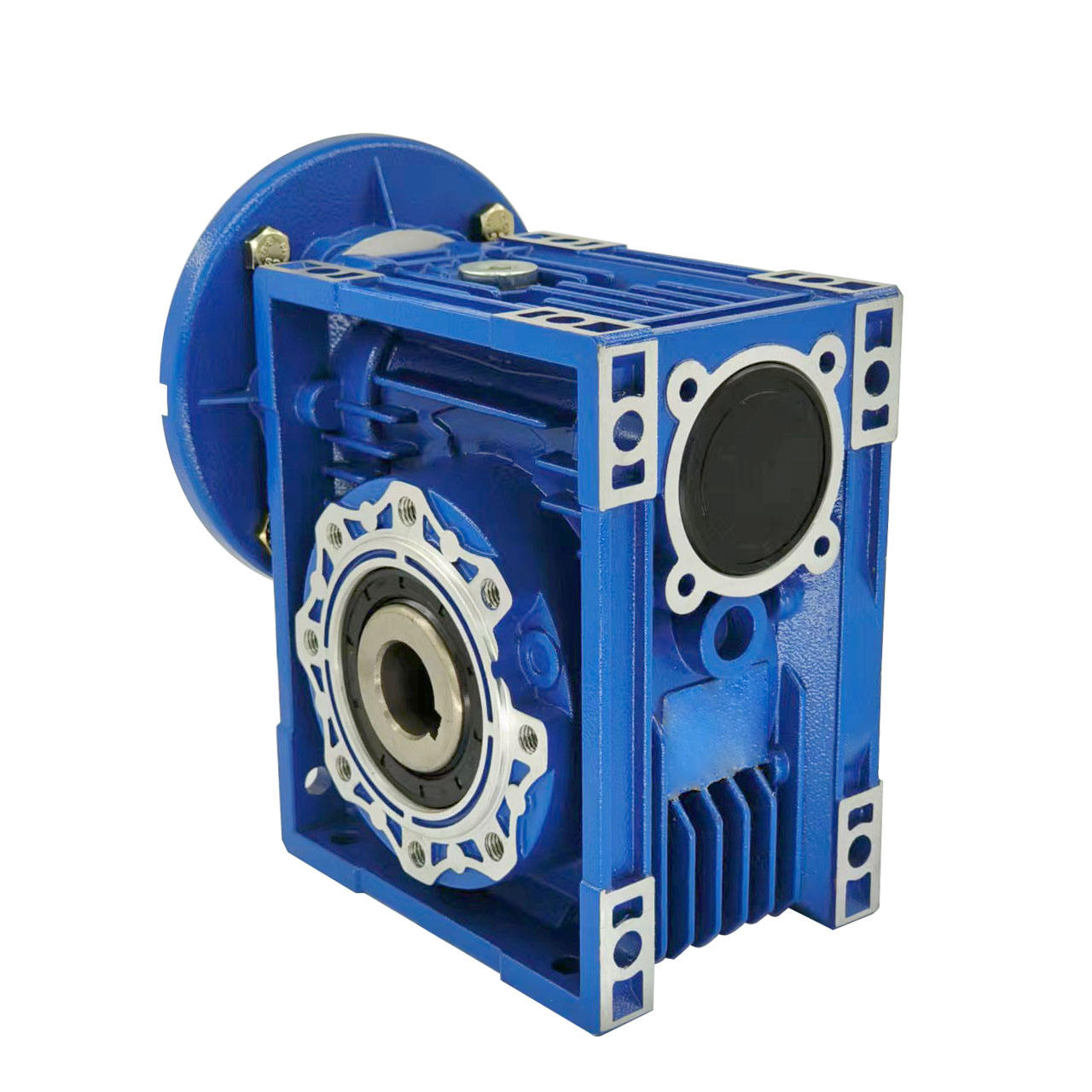

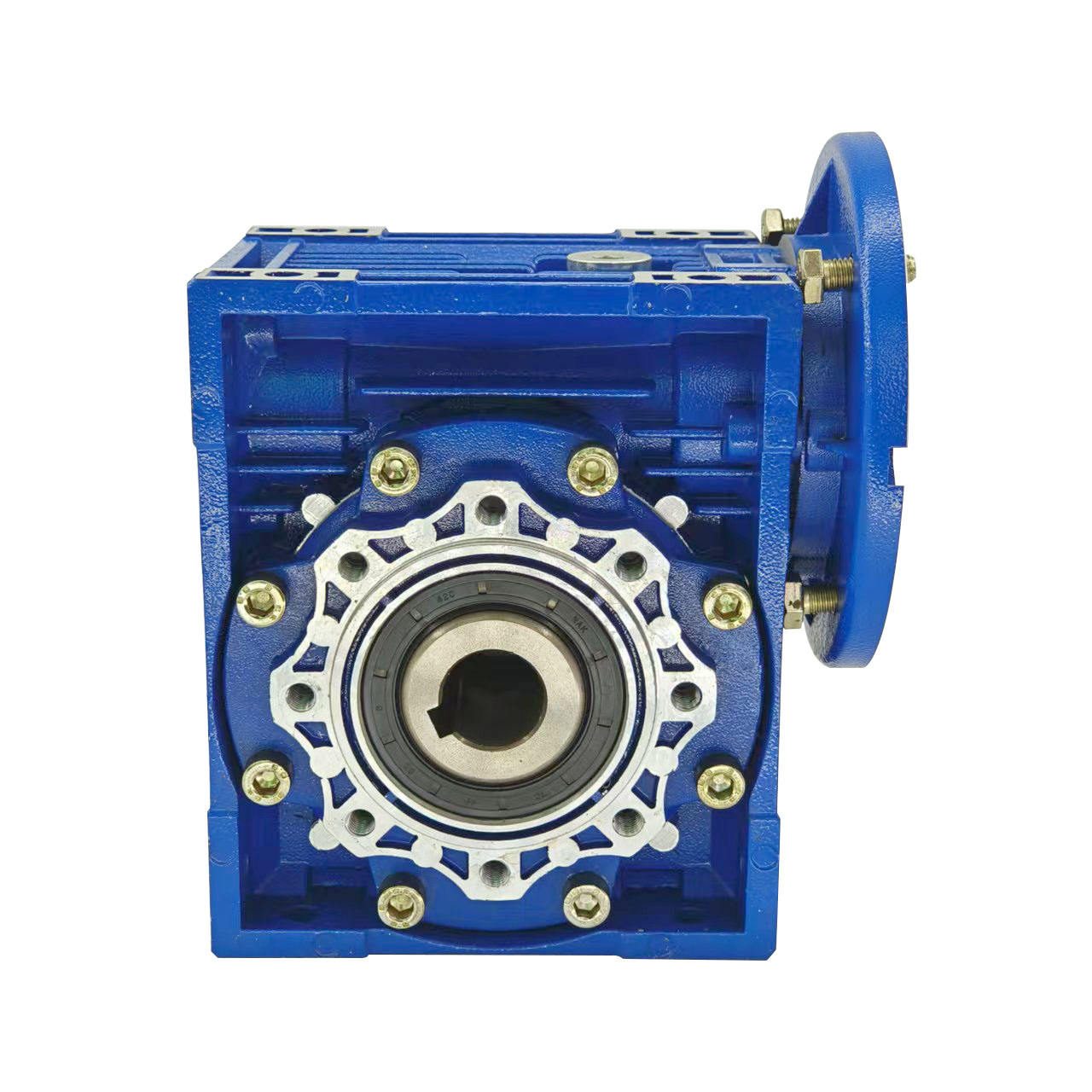

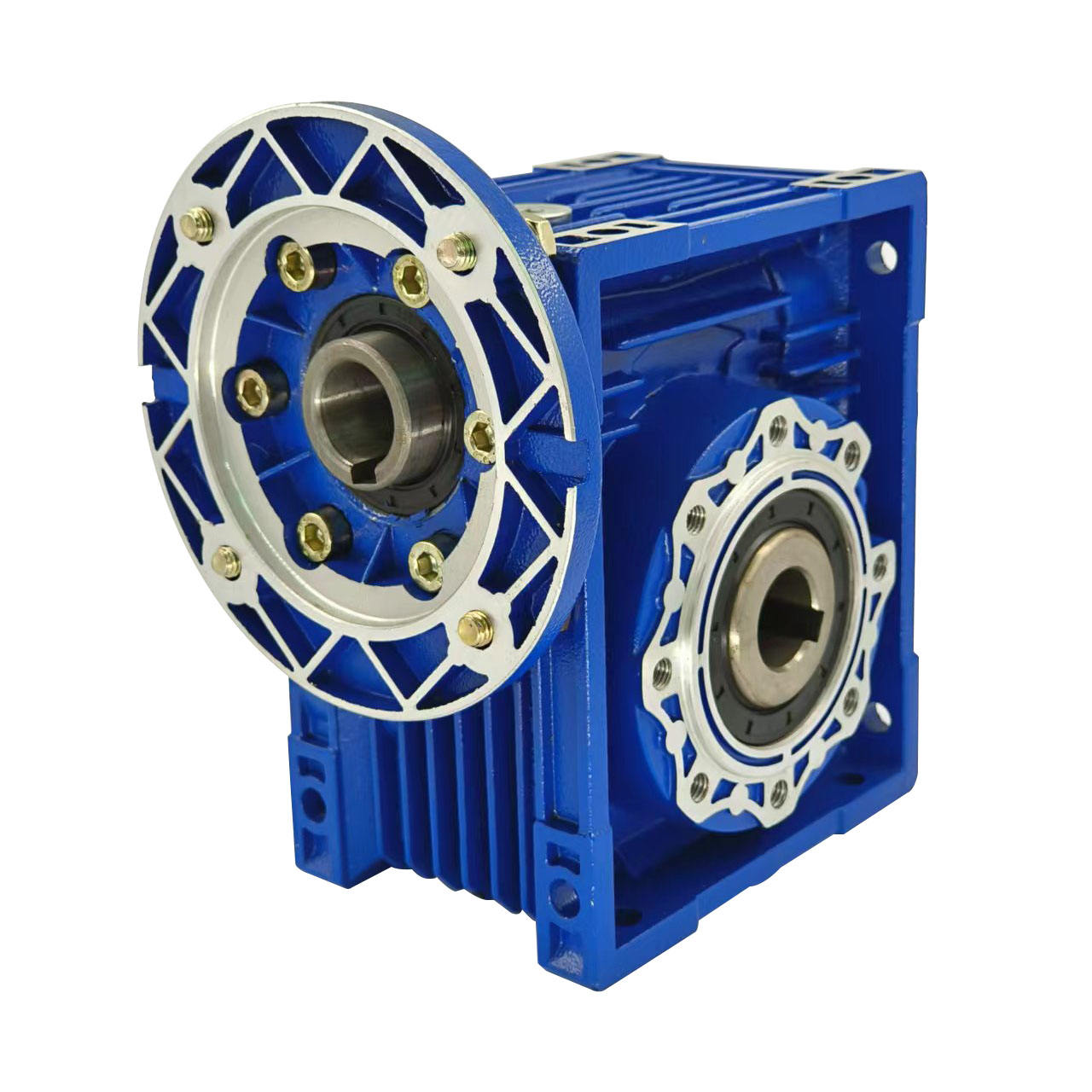

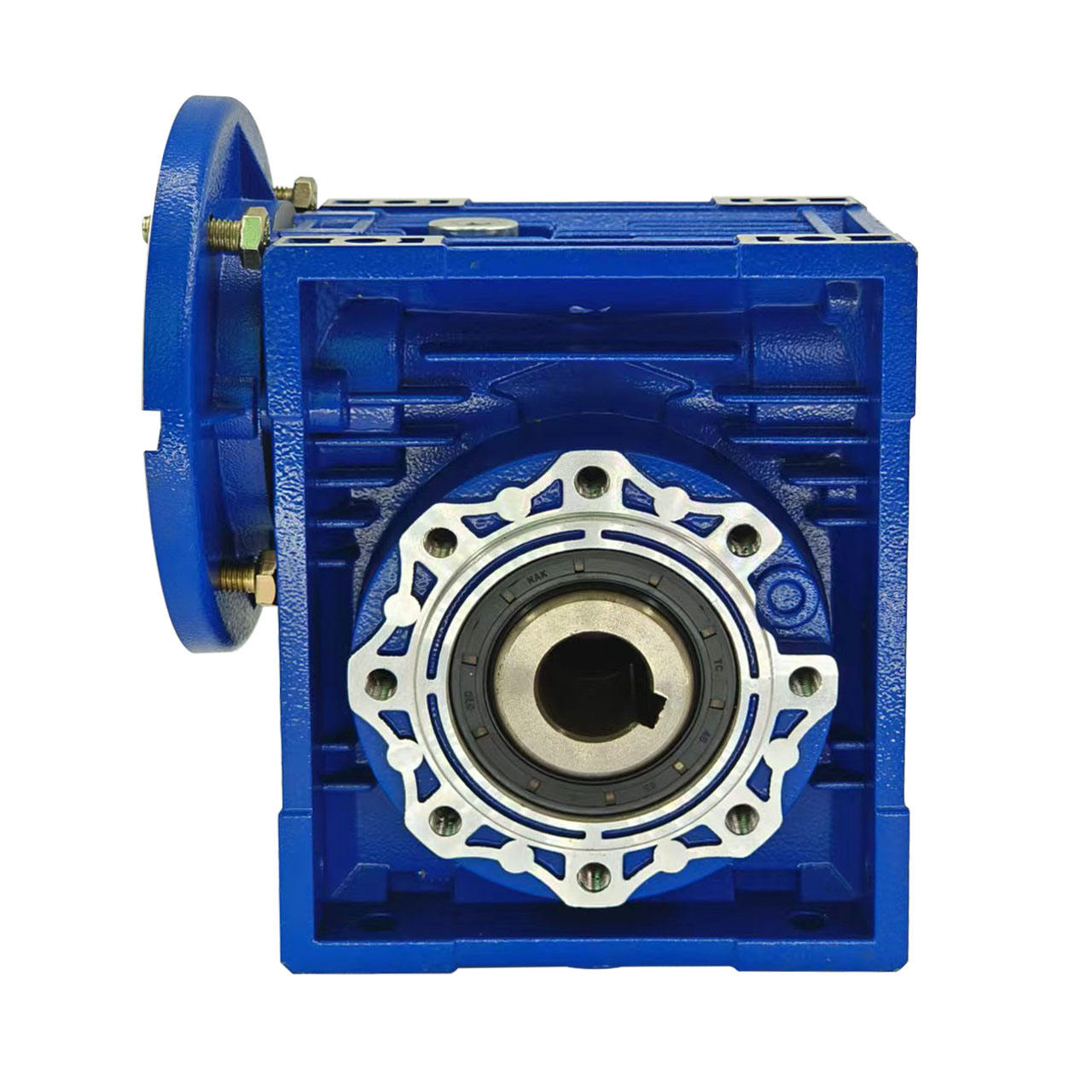

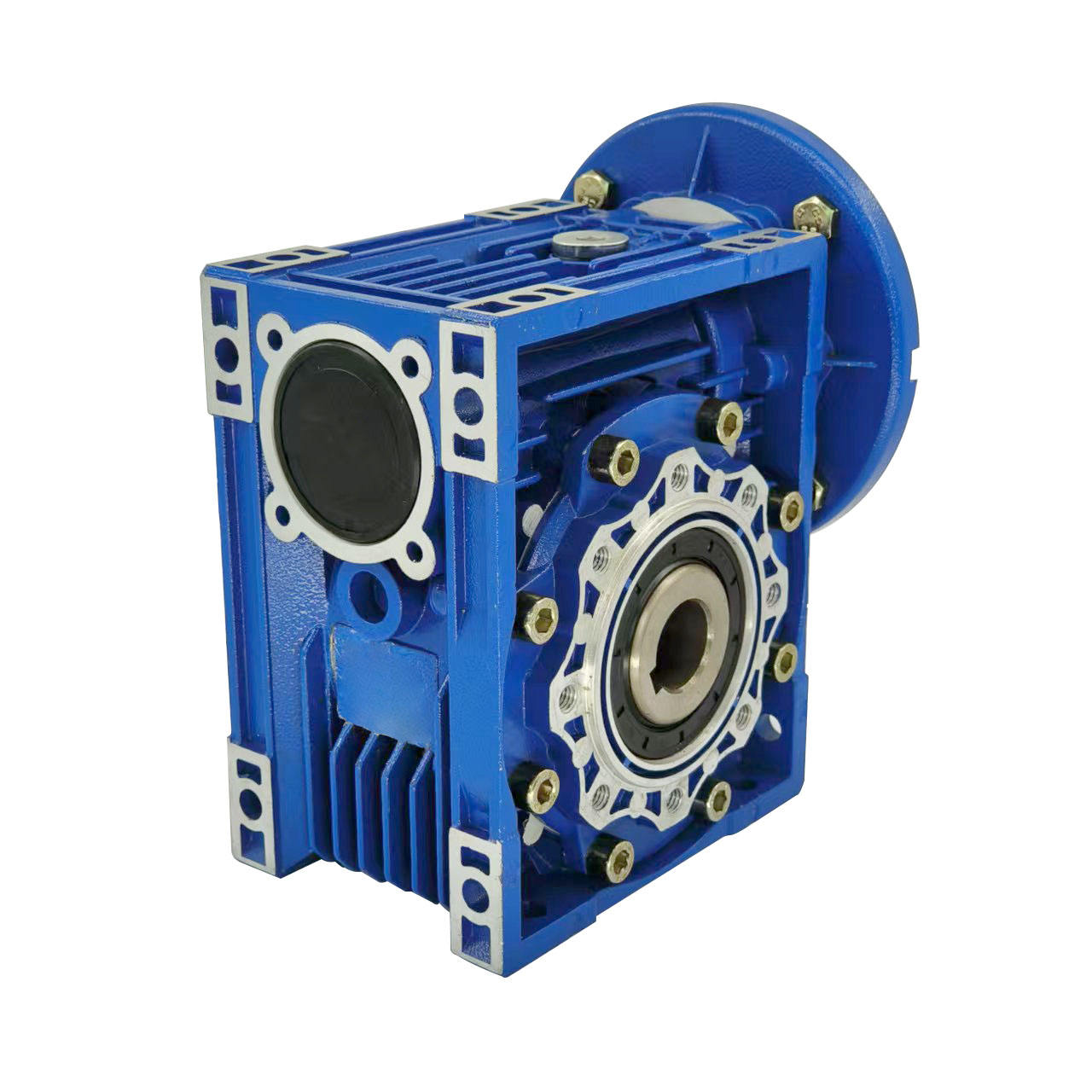

Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
1 / 5
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron
Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron

Customizable 3-Phase NRV 60W Electric Motor Gearbox Cycloidal Speed Reducer Single-Reduction Worm Cast Iron Cast Iron Cast Iron

Send Inquiry

Product Description

Product Banner
Product Overview
Product Description
Rated Input Motor Power (KW) Output Speed (R/Min) Ratio Rated Output Torque (Nm) Permitted Radial Load (N) Service Factor Gear Unit Type Motor Type
0.06 280 5 1.8 439 6.2 NMRV025 56B14 5614
186.7 7.5 2.6 503 4.2
140 10 3.4 553 3.5
93.3 15 4.9 633 2.5
70 20 6.2 697 1.9
46.7 30 8.3 798 1.6
35 40 10 878 1.2
28 50 12 946 0.9
23.3 60 14 1006 0.7
0.06 186.7 7.5 2.6 683 7 NMRV030 56B5/B14 5614
140 10 3.4 752 5.4
93.3 15 4.7 861 3.9
70 20 6 948 3.1
56 25 7 1021 3.1
46.7 30 8 1085 2.5
35 40 9.7 1194 1.9
28 50 11 1286 1.5
23.3 60 13 1367 1.3
17.5 80 14 1504 0.9
Technical Drawing
Product Details
Company Profile
Our Factory
Certificate
Customer Feedback
Logistics and Payment
FAQ
What are the main advantages of the NMRV series worm gear reducer?
The NMRV series features a high-quality aluminum alloy housing, light weight, and non-rusting properties. It offers large output torque, smooth running with low noise, and high heat-radiating efficiency.
Can the gear unit be mounted in different positions?
Yes, the omni-directional mounting capabilities allow for flexible installation in various industrial applications, ensuring compatibility with your existing machinery.
What materials are used for the internal components?
We use high-quality wear-resistant bronze for the worm wheel and heat-treated alloy steel for the worm shaft to ensure long-term durability and stable performance.
Are the products tested before shipping?
Every unit undergoes strict quality control and functional testing, including noise level checks and leak tests, to meet international standards before packaging.
Do you support customized motor flange connections?
Our reducers are designed with standard B5 and B14 flanges, making them compatible with most standard IEC motors. Custom specifications can be discussed based on requirements.
What is the typical maintenance requirement for these reducers?
Most units are supplied pre-lubricated with synthetic oil and are designed to be maintenance-free under normal operating conditions. Periodic inspections for oil seals are recommended.
