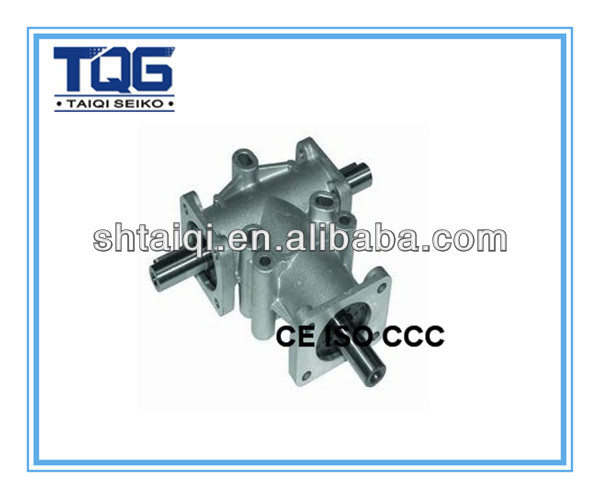

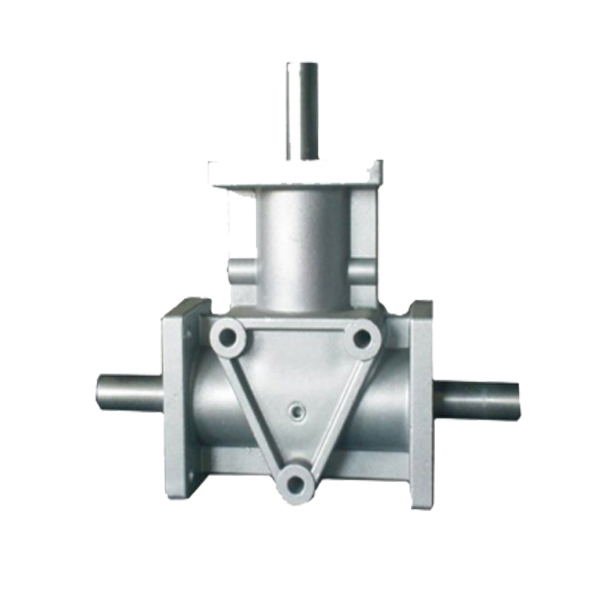

ARA Series Helical Straight Bevel Gearbox

Product Description

⚙️

Versatile Types
ARA series helical bevel gearbox, straight bevel gearbox, hollow shaft bevel gearbox, aluminum bevel gearbox.

🛠️

Premium Materials
Gear: 20crmntih & 17crnimo6 | Shaft: 40cr Forged Steel | Housing: Cast Iron (Ht250/Qt450).

Ratio	1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1
Helical Gear Material	20crmntih and 17crnimo6
Shaft Material	40cr Forged Steel
Helical Gear Hardness	Hrc58-62
Weight Range	2 - 488 KG

Company Profile

Our Factory

Certificate

Customer Feedback

Logistics and Payment

FAQ

What are the available gear ratios for the ARA series?

The ARA series offers multiple ratio options including 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, and 5:1 to suit various industrial needs.

What materials are used in the construction of these gearboxes?

We use high-grade 20crmntih and 17crnimo6 for the helical gears, 40cr forged steel for the shafts, and Ht250 or Qt450 cast iron for the housing.

How durable are the gears in the ARA series?

The helical gears undergo advanced heat treatment to reach a hardness level of Hrc58-62, ensuring high wear resistance and long service life.

What is the weight range of the gearboxes?

Depending on the specific model and configuration, the weight of our gearboxes ranges from 2kg for smaller units up to 488kg for heavy-duty applications.

Can these gearboxes be customized with hollow shafts?

Yes, the ARA series includes hollow shaft bevel gearbox configurations, as well as straight and helical bevel options.

Are the gearboxes suitable for high-precision applications?

Absolutely. With precision-forged steel shafts and high-hardness helical gears, these units provide stable performance and reliable torque transmission.
