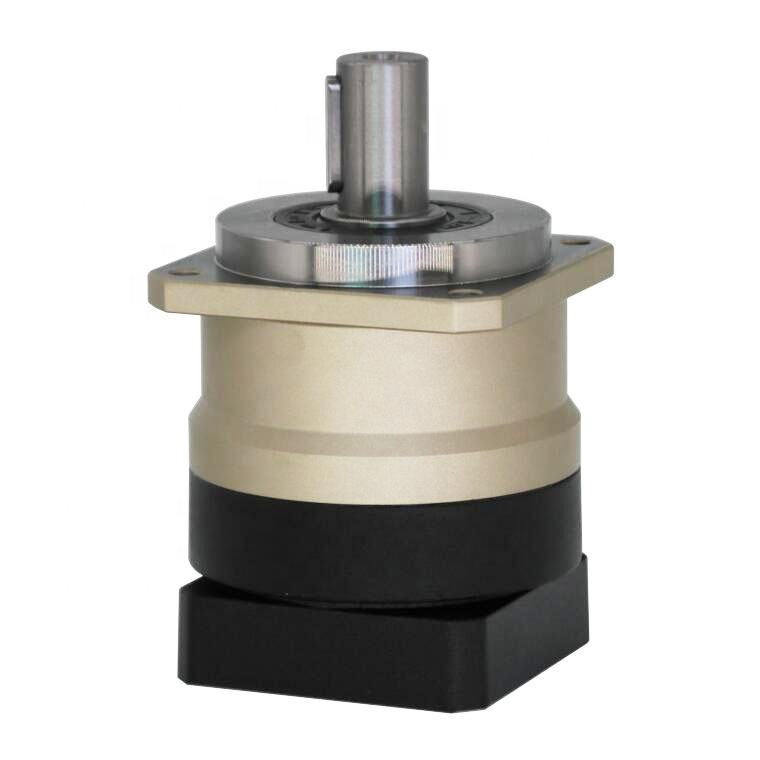

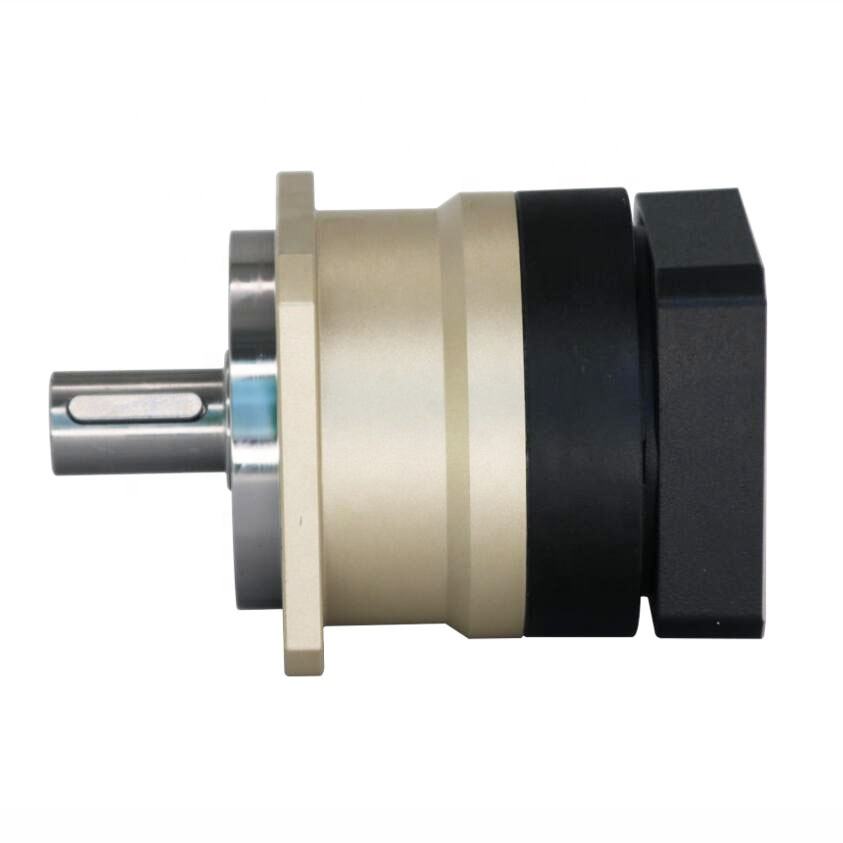

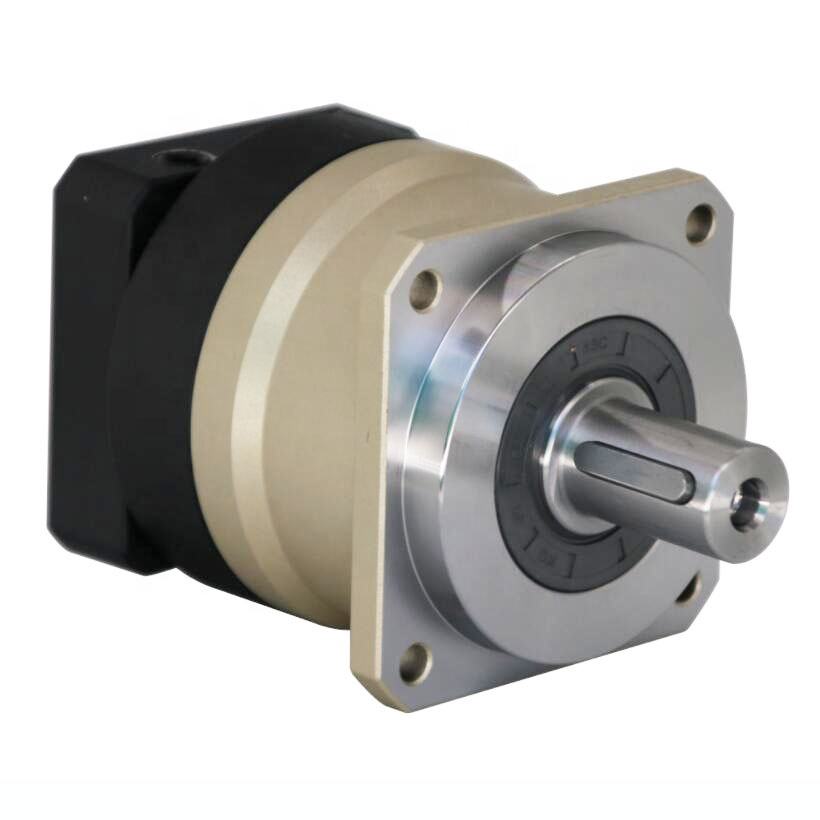

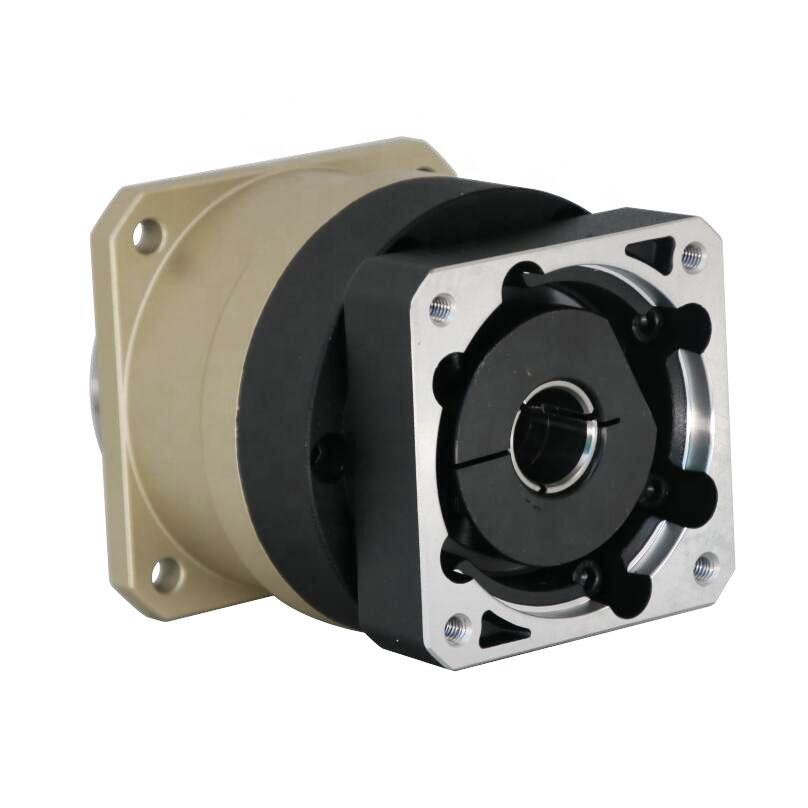

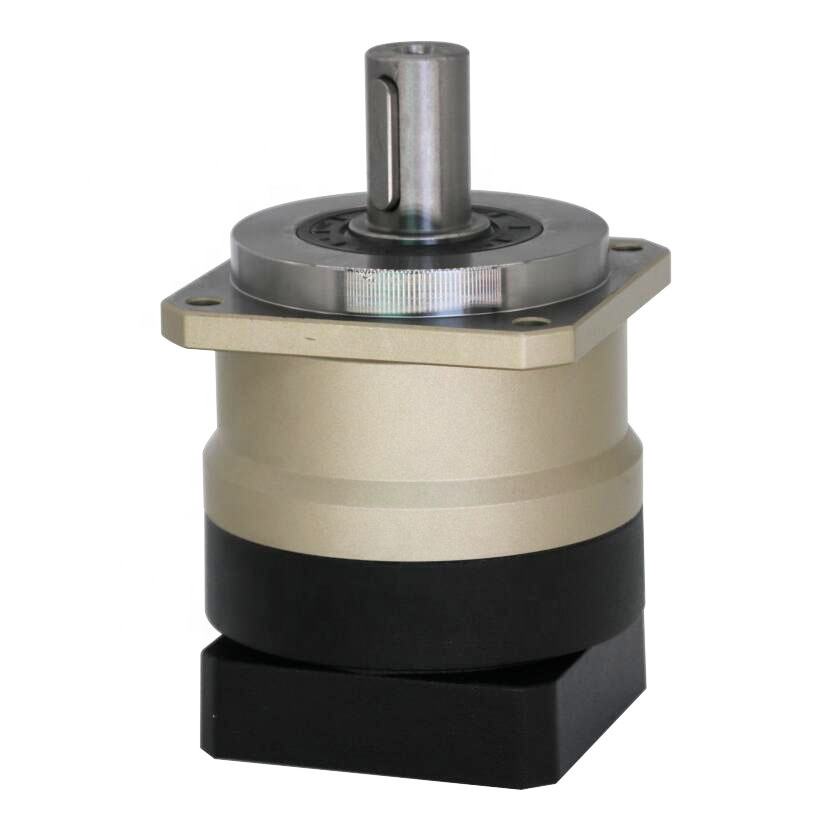

TQG 45:1 Planetary Reduction Gearbox High Reduction Speed Reducer with Low Backlash Arcmin 90mm PCD 750w 1kw Gear Box Reductor

Product Description

Planetary Gearbox Banner
Product Intro

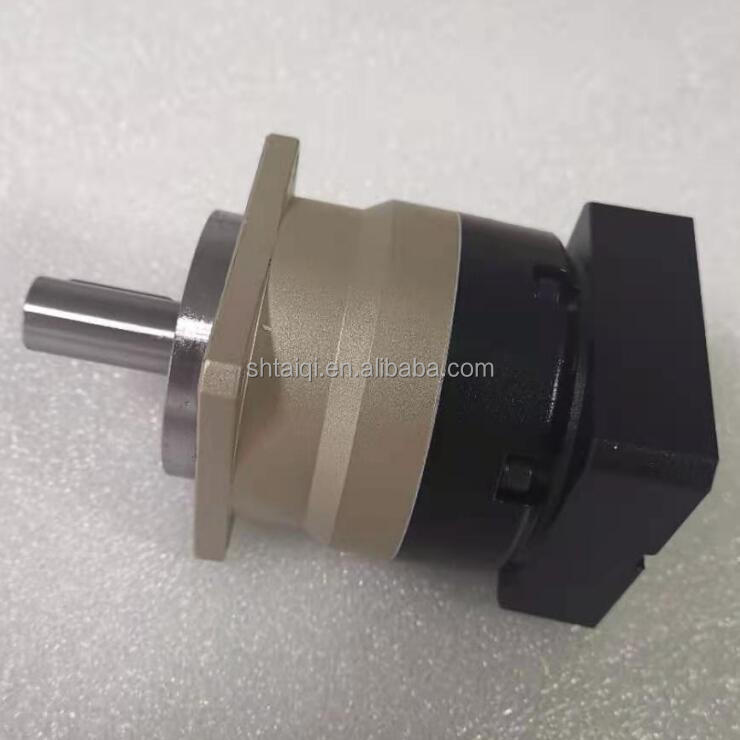

VRB Series Technical Details
Model VRB042, VRB060, VRB090, VRB115, VRB142, VRB180, VRB220
Ratio 1:3 ~ 1:100
Backlash 1arcmin ~ 7arcmin
Matching motor Stepper motor, servo motor, BLDC motor
Efficiency 94%~97%
MOQ 1pc

Our VRB series planetary gearbox comes in a wide range of frame sizes from 042 to 220, it provides two levels backlash, P0 for micro backlash rating of <<2 arcmin at 1-stage, and <<4 arcmin at 2-stage. P1 for precision backlash rating of <<4 arcmin at 1-stage and <<6 arcmin at 2-stage. With helical gearing arrangement and integrated configuration, VRB features high torsional rigidity, high precision and high torque, as well as low mass moments of inertia for highest dynamics. Its optimized mounting system allows motor to be installed in any directions. VRB is cost effective planetary gearbox with the best torque-low heat performance and an ideal solution for servo and stepper applications.

Model Selection

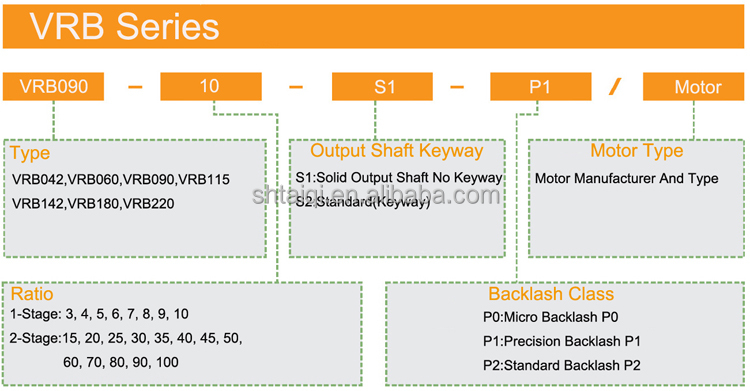

Model Selection Chart 1
Model Selection Chart 2
Company Profile
Company Overview 1
Company Overview 2
Our Factory
Factory Workshop
Certificate
Quality Certificates
Customer Feedback
Customer Feedback Reviews
Logistics and Payment
Logistics and Payment Details
FAQ
Frequently Asked Questions Overview
Q What is a planetary gearbox and how does it benefit my system?
A planetary gearbox is a gear system where the input shaft drives the central sun gear, which in turn rotates the surrounding planetary gears. This configuration provides high torque density, excellent efficiency, and compact space utilization, making it perfect for high-load and precision-demanding applications.
Q What are the main advantages of the VRB series?
The VRB series features a helical gearing design that ensures smooth operation, low backlash, and minimal noise. Its integrated structure delivers high torsional rigidity and optimal mass moments of inertia, suitable for dynamic positioning tasks.
Q What motors can be matched with the VRB series gearbox?
Our gearboxes are designed to be universally compatible with standard stepper motors, servo motors, and brushless DC (BLDC) motors. The flexible mounting system enables installation in any direction.
Q How do I select the proper ratio and frame size?
You need to verify the motor output power, torque, speed, and required application precision. The VRB series offers multiple ratios ranging from 1:3 up to 1:100. Please check the Model Selection guides above or contact technical support with your motor specifications.
Q What does the backlash rating signify?
Backlash represents the clearance between gear teeth. A lower backlash rating (e.g., <<2 arcmin for P0 grade) guarantees higher position accuracy and smoother movement when changing directions, which is critical for CNC and robotic equipment.
Q What is the Minimum Order Quantity (MOQ) and lead time?
The MOQ is 1 piece, allowing you to run initial tests and prototype designs. Standard order lead times depend on current factory scheduling and configuration requirements.
