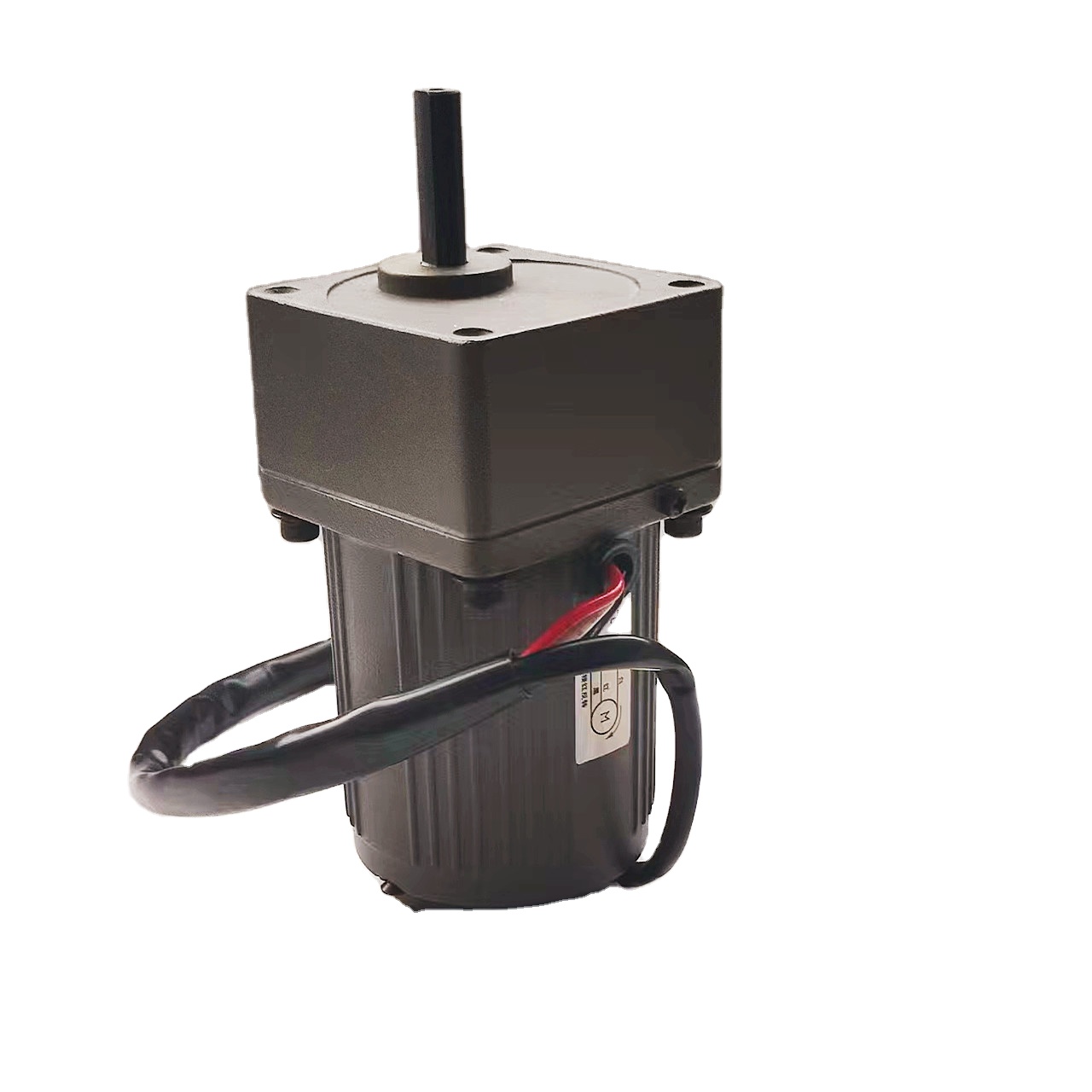

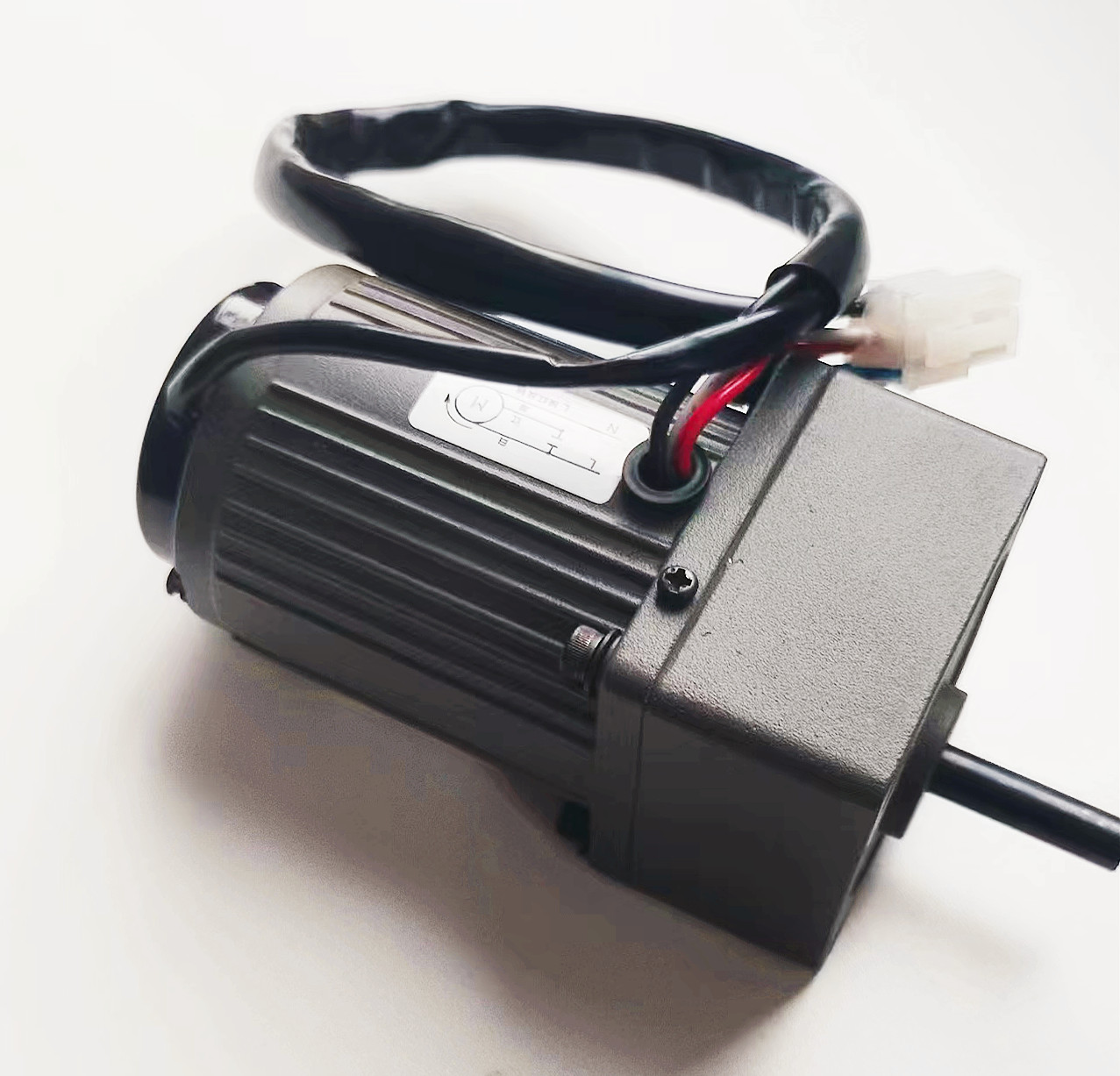

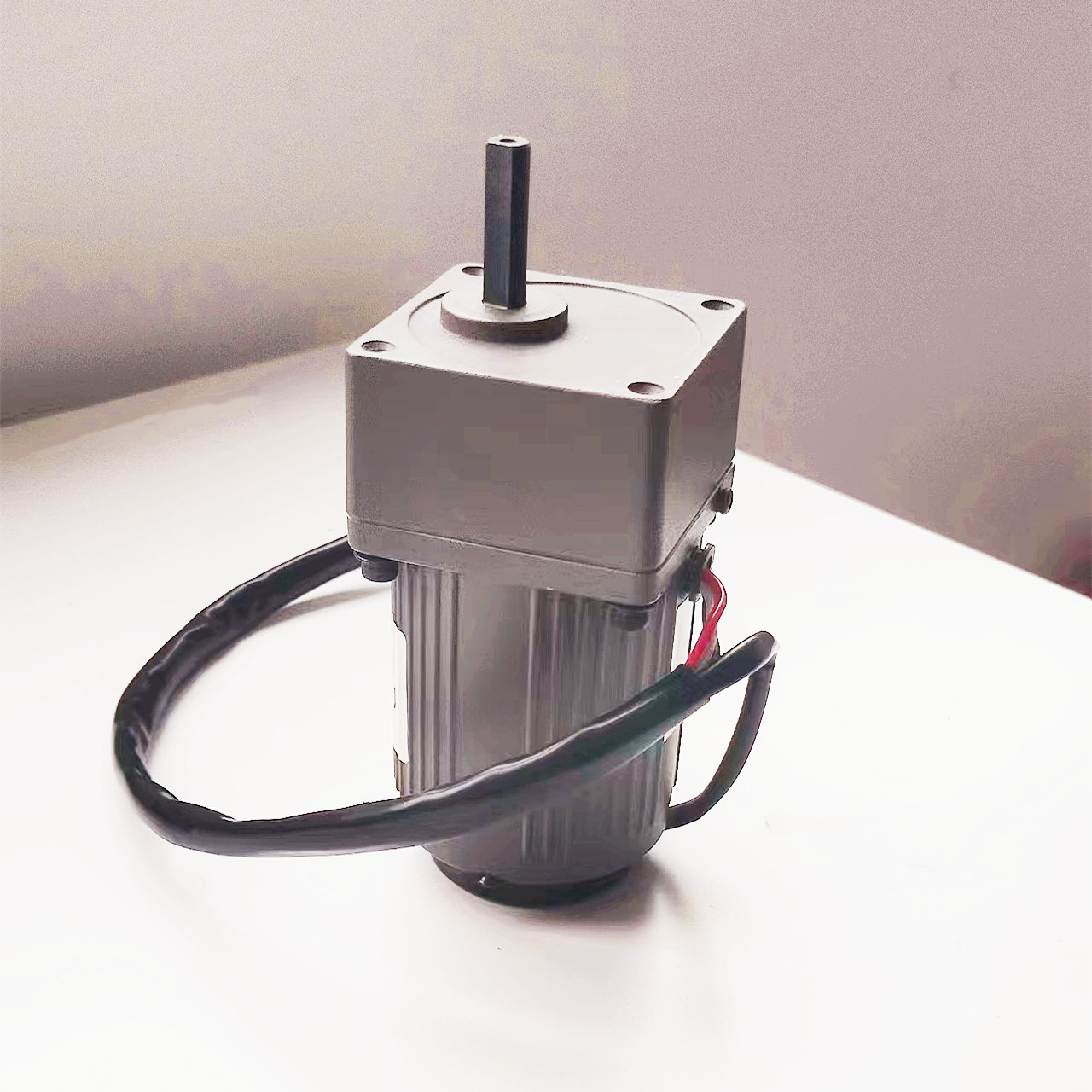

Factory Directly Sold Micro AC Gearbox Motor High Quality AC Motors

Product Description

Micro Gear Motor Banner Product Showcase
⚙️ Product Description
💡 Description of Gear Motor:
1. Generally speaking, a micro induction motor is a motor rotated by induction. It uses electromagnetic coils and a capacitor when starting and operating. Although the start torque is not very high, it has a simple structure, high efficiency, and can continuously run.
2. There will be torque that resists the rotating direction when a single motor running, so it is impossible to change the direction in a short time. Please change the rotation direction after the motor completely stop.
3. Three-phase induction motor is driven by the three-phase power supply. It has high efficiency and starts torque. Suitable for unidirectional continuous running.
🔍 Products Overview

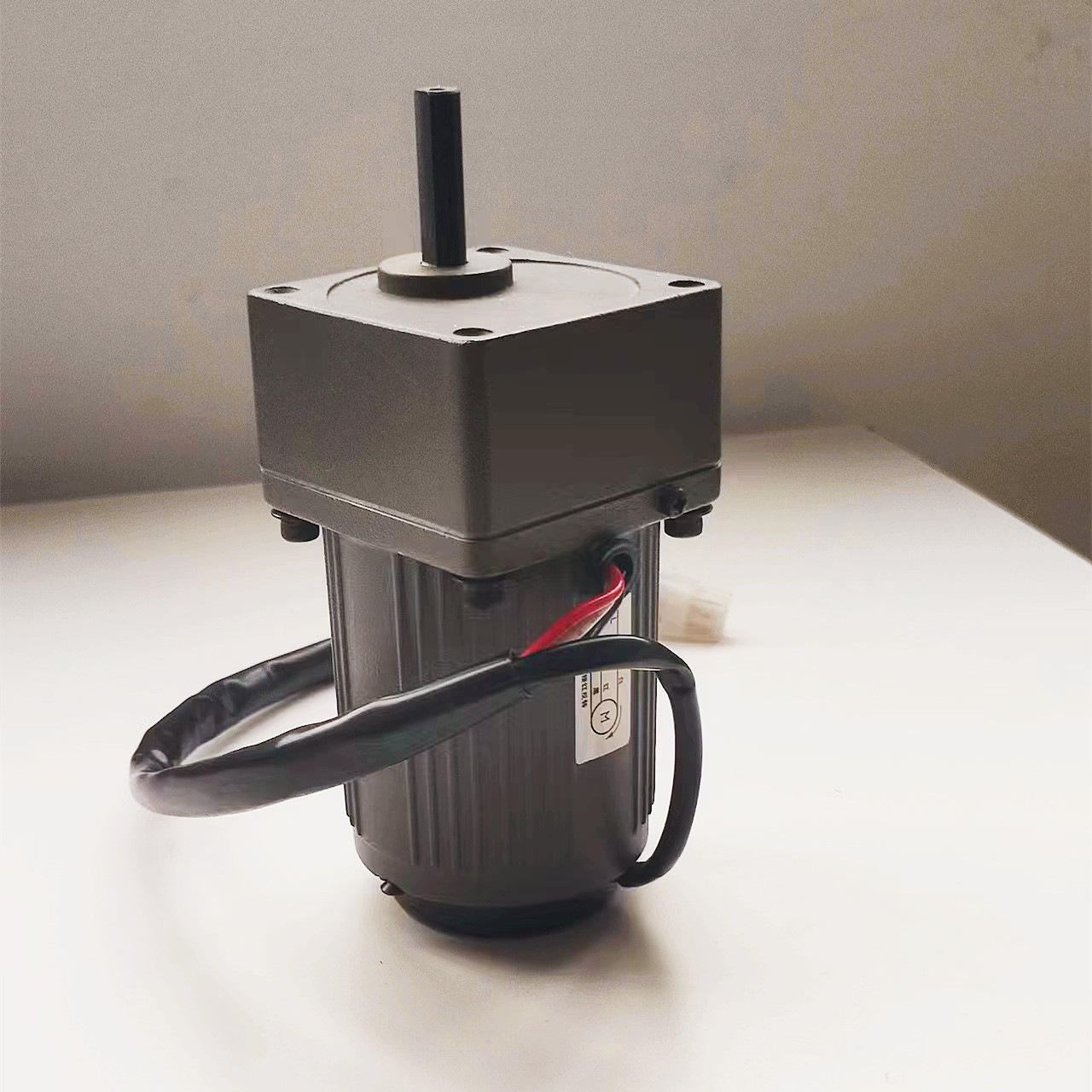

Micro Gear Motor Detail
Product nameMicro Gear motor
Power6W 15W 25W 40W 60W 90W 120W 140W 200W 250W
Frame size60MM 70MM 80MM 90MM 104MM
Rated speed1500rpm 3000rpm
Insulation classF
Safety classIP54
Warranty12 months
Delivery time10-15 working days
Temperature-10°C - 40°C
📊 Technical Parameters

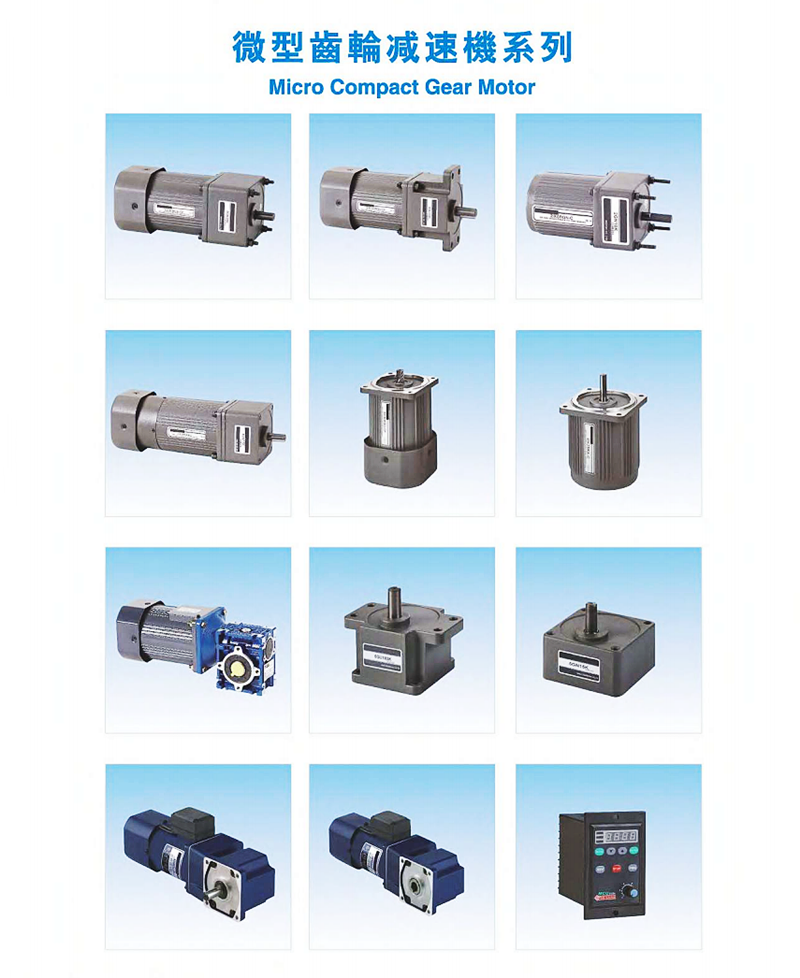

Technical Drawing 1

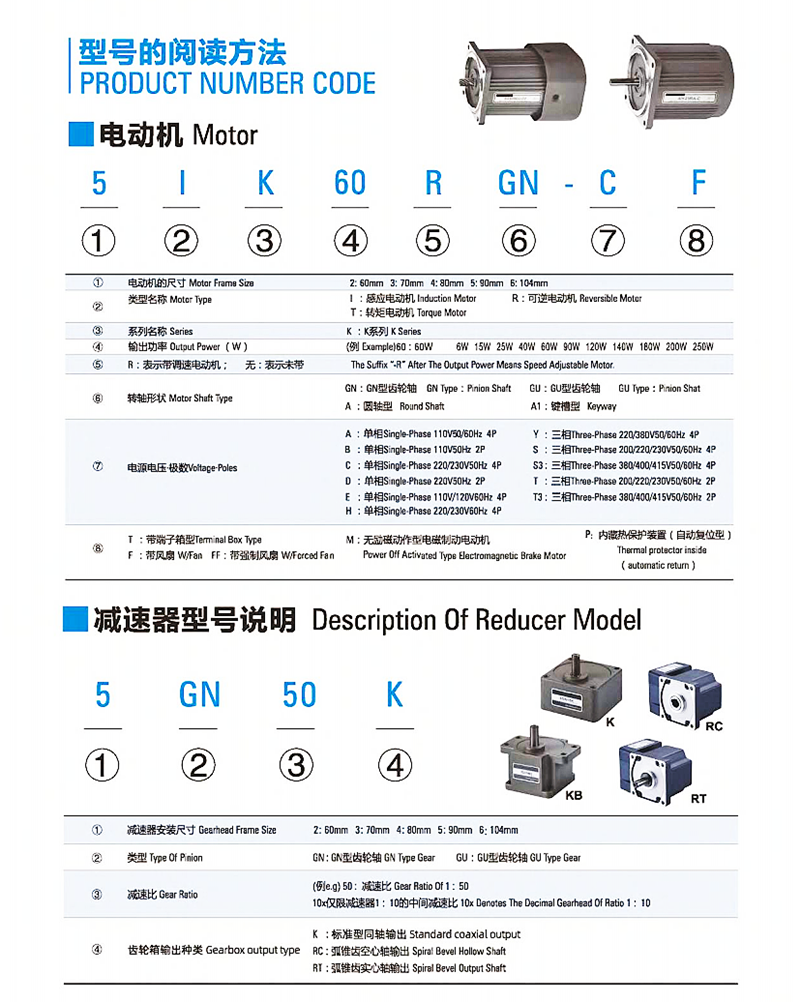

Technical Drawing 2

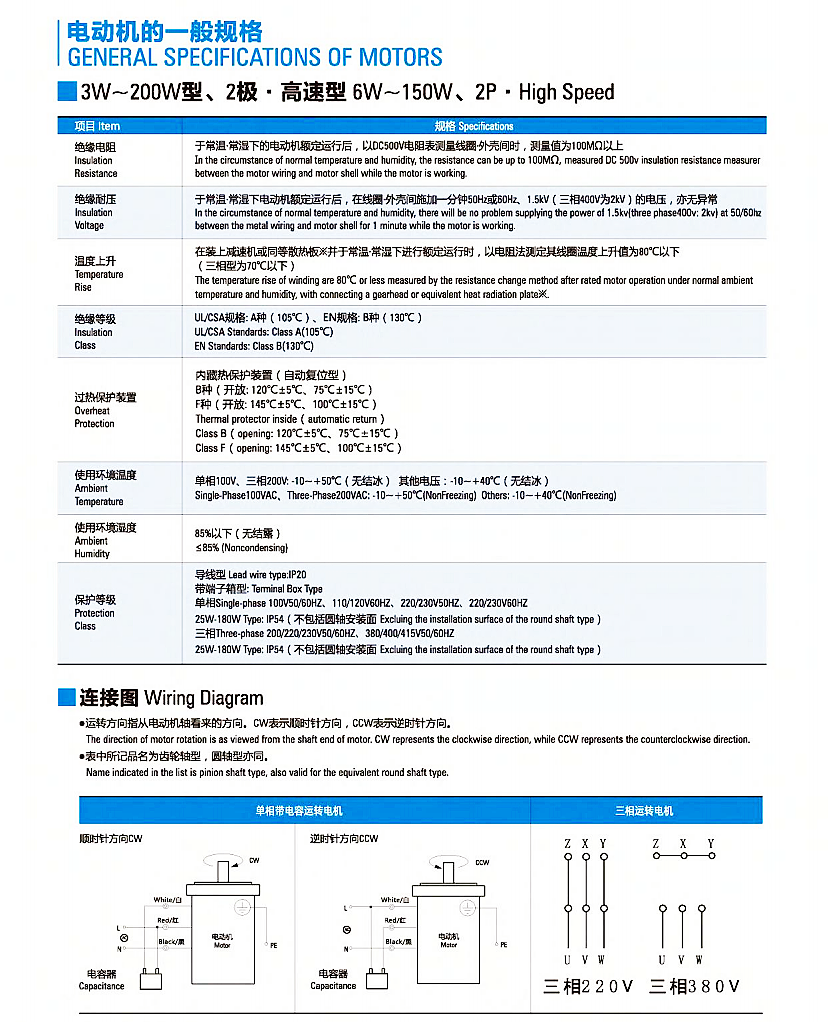

Technical Drawing 3

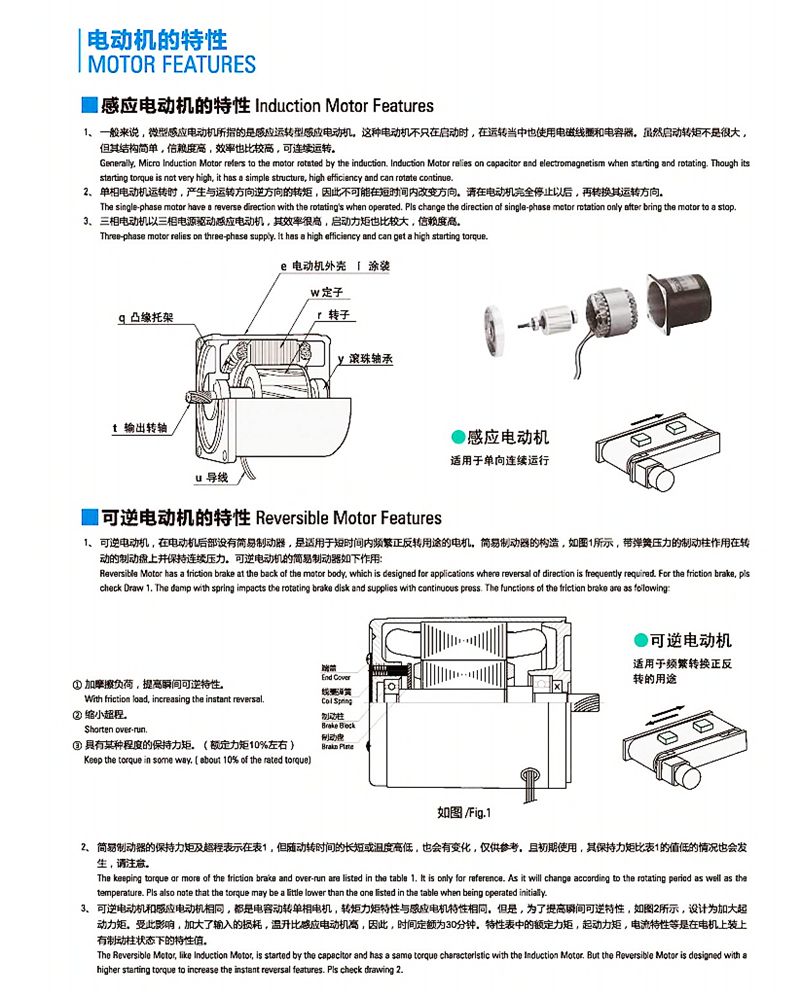

Technical Drawing 4

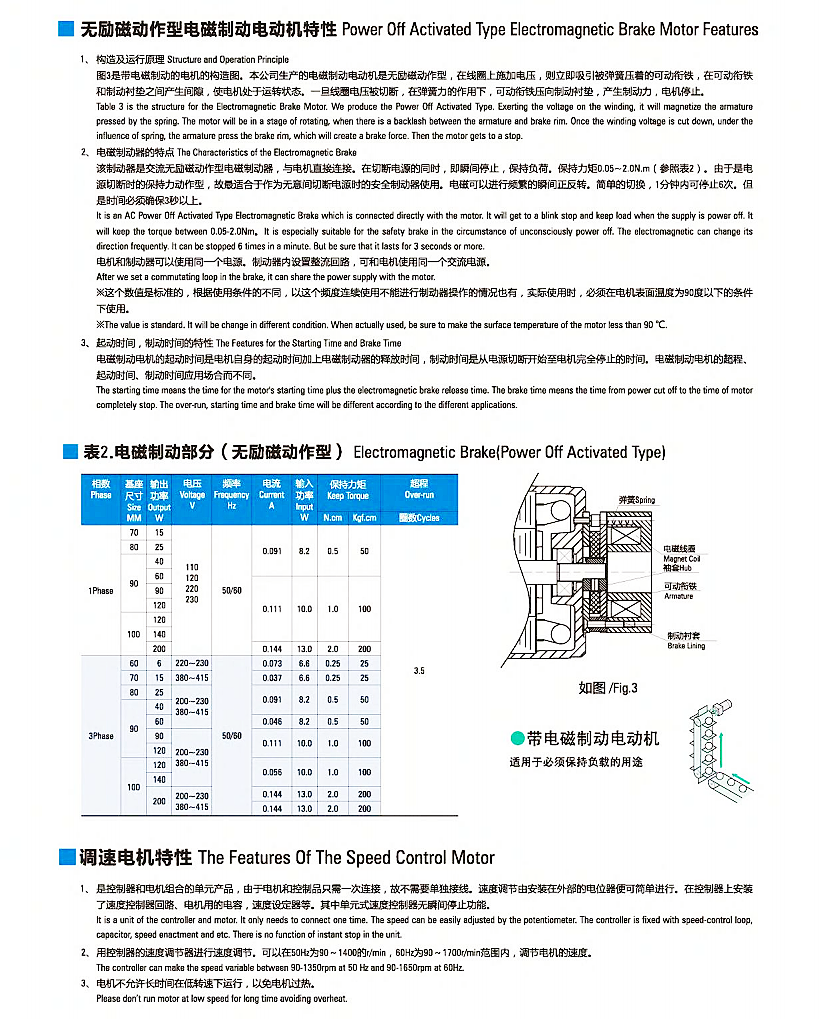

Technical Drawing 5
🏭 Company Profile & Factory
Company Showcase Production Line Factory Facility
📜 Certificates & Feedback
Quality Certificate
Customer Feedback
🚢 Logistics and Payment
Shipping Logistics
FAQ Header
What is the standard warranty for these micro gear motors?
All our micro gear motors come with a 12-month warranty from the date of delivery, ensuring reliable performance and peace of mind.
What is the typical delivery time for an order?
The standard lead time is 10-15 working days, depending on the order quantity and specific customization requirements.
Can I switch the motor's rotation direction immediately while it's running?
No, it is impossible to change direction in a short time while running due to the internal torque. Please ensure the motor has stopped completely before changing the rotation direction.
What power options and frame sizes are available?
We offer a wide power range from 6W to 250W, with frame sizes available in 60mm, 70mm, 80mm, 90mm, and 104mm to suit various industrial applications.
What are the safety and insulation ratings of these motors?
The motors are built to high standards with an Insulation Class F and a Safety Class of IP54, making them durable and safe for diverse environments.
Are three-phase induction motors available?
Yes, our three-phase induction motors are driven by a three-phase power supply, providing high efficiency and high starting torque, ideal for unidirectional continuous operation.
