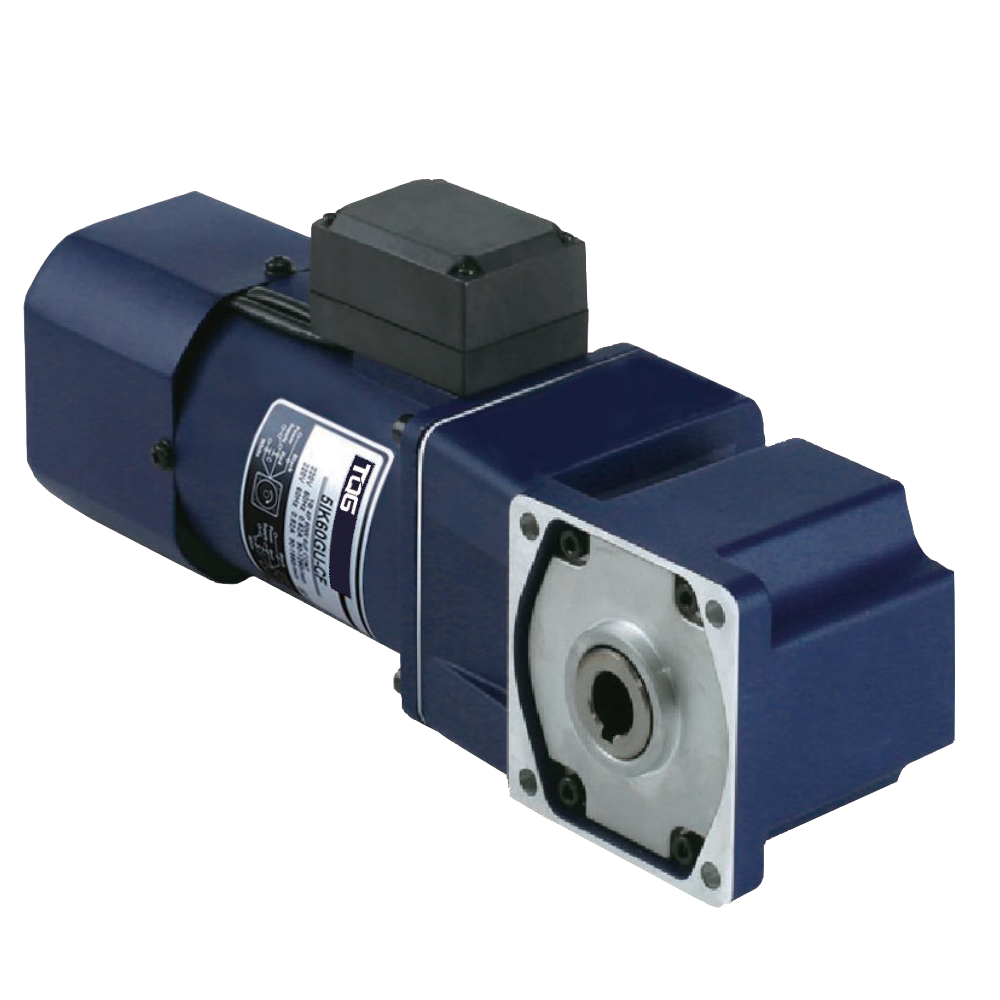

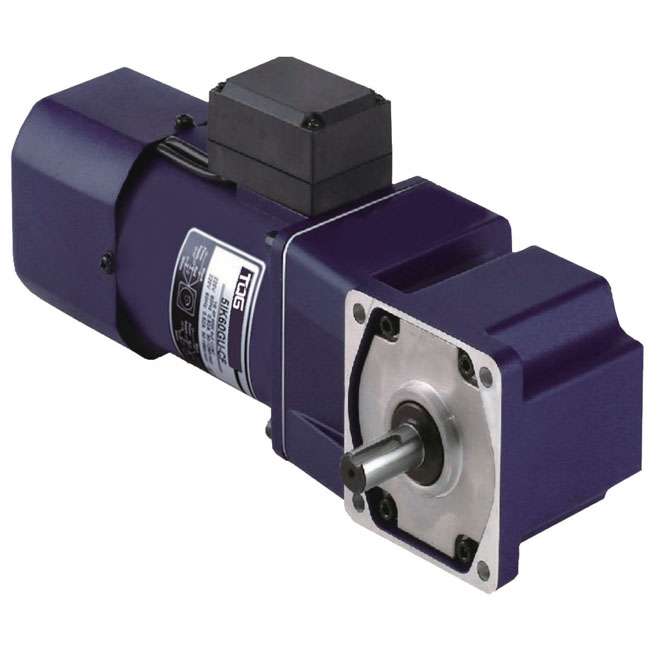

220V Single Phase Spiral Bevel Right Angle AC Gear Motor with Reducer 6-250W 5-250 Ratio 50/60Hz 3-Year Warranty

Product Description

Motor Overview
Product Display
i

Product Description

Generally speaking, micro induction motor is the motor rotated by induction. It uses electromagnetic coils and capacitor when starting and operating. Although the start torque is not very high, it has simple structure, high efficiency and can continuously running.

There will be torque which reverse to the rotating direction when single motor running, so it is impossible to change the direction at a short time. Please change the rotate direction after motor completely stop.

Three phase induction motor is driven by three phase power supply. It has a high efficiency and start torque. Suitable for unidirectional continuous running.

Mechanism Design
S

Technical Specifications

Voltage 220V single phase
Power 6-250W
Ratio 5-180
Type Spiral bevel gear

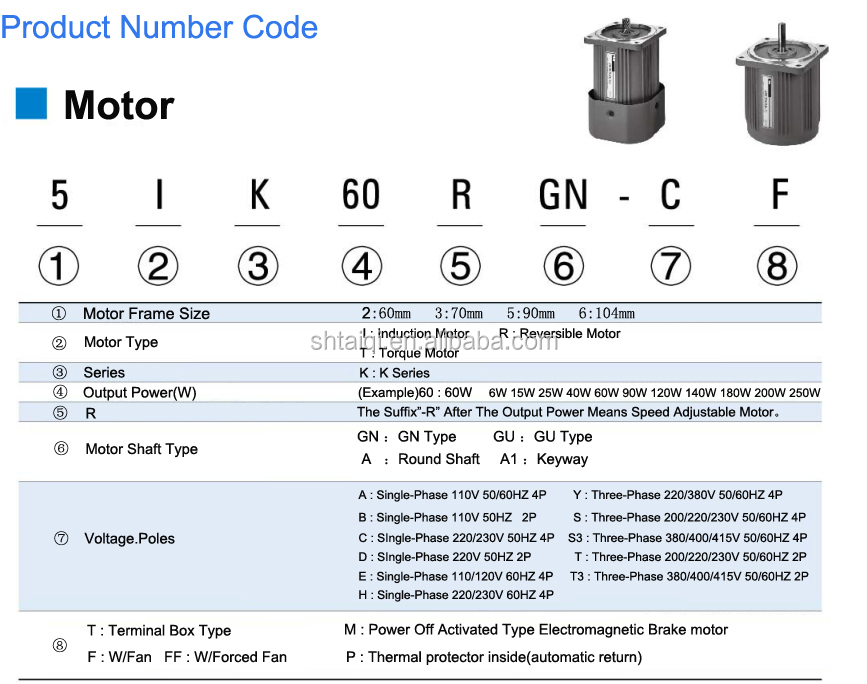

Product Angle 1

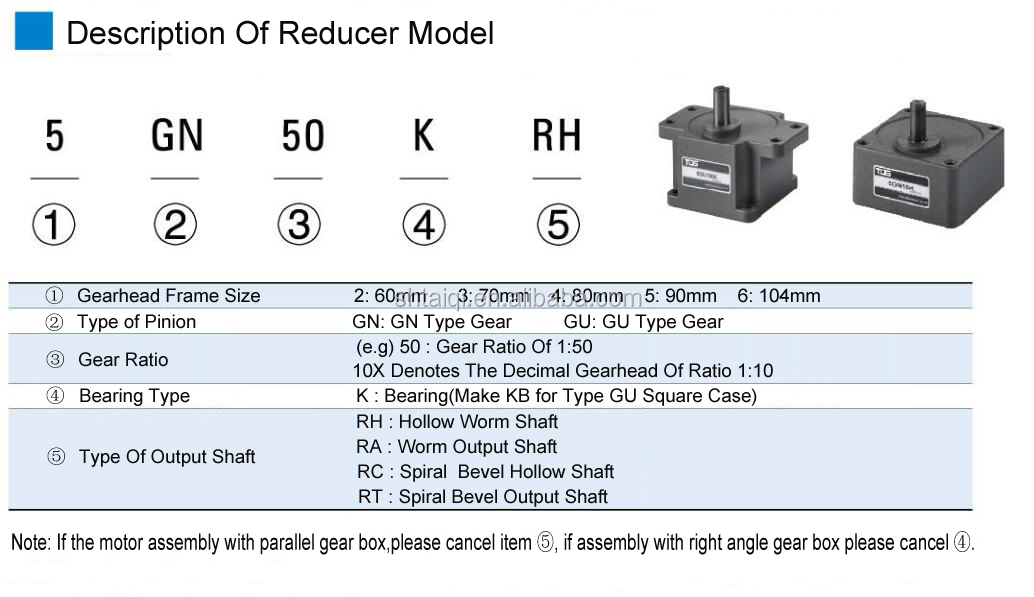

Product Angle 2
T

Technical Parameters

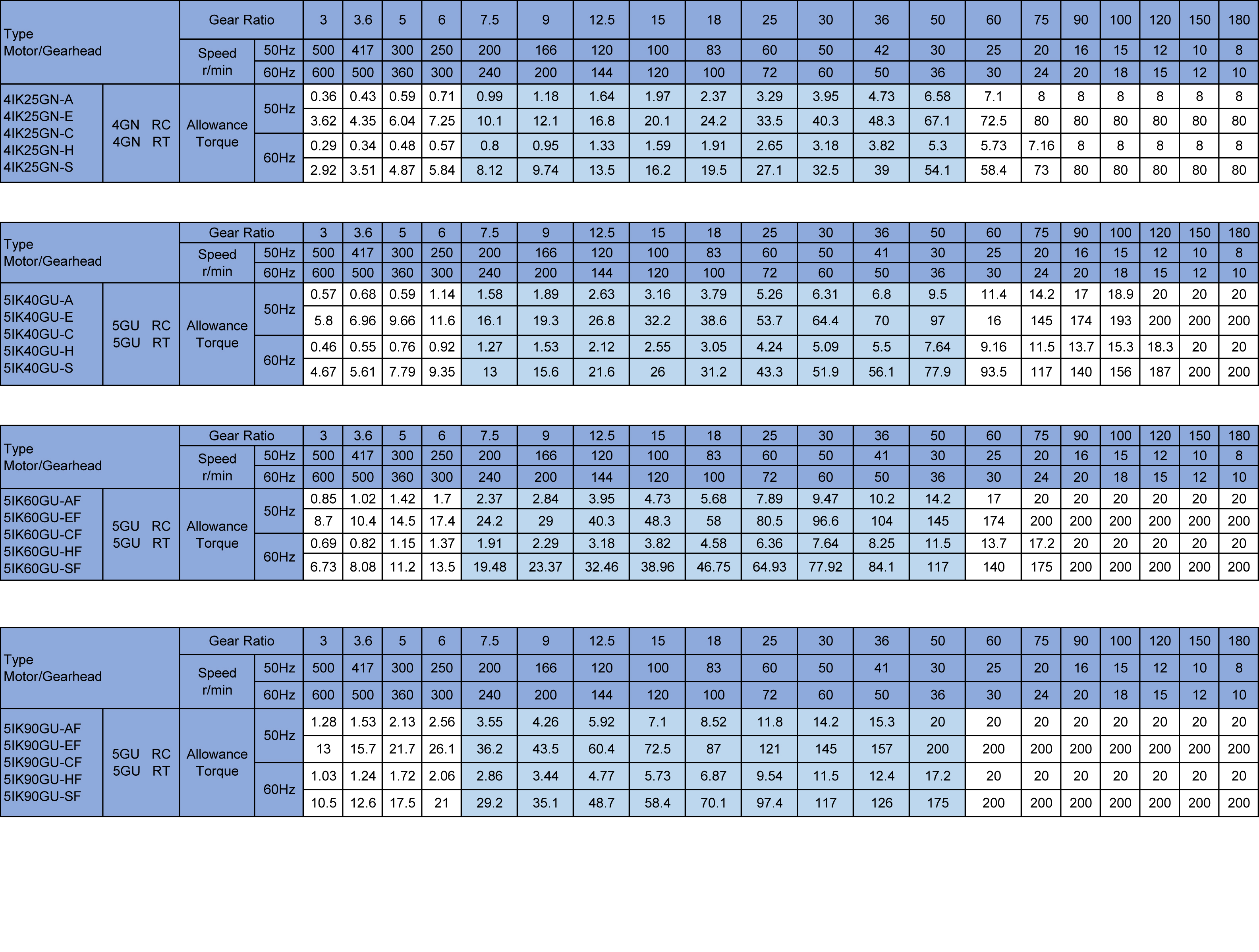

Parameter Chart 1

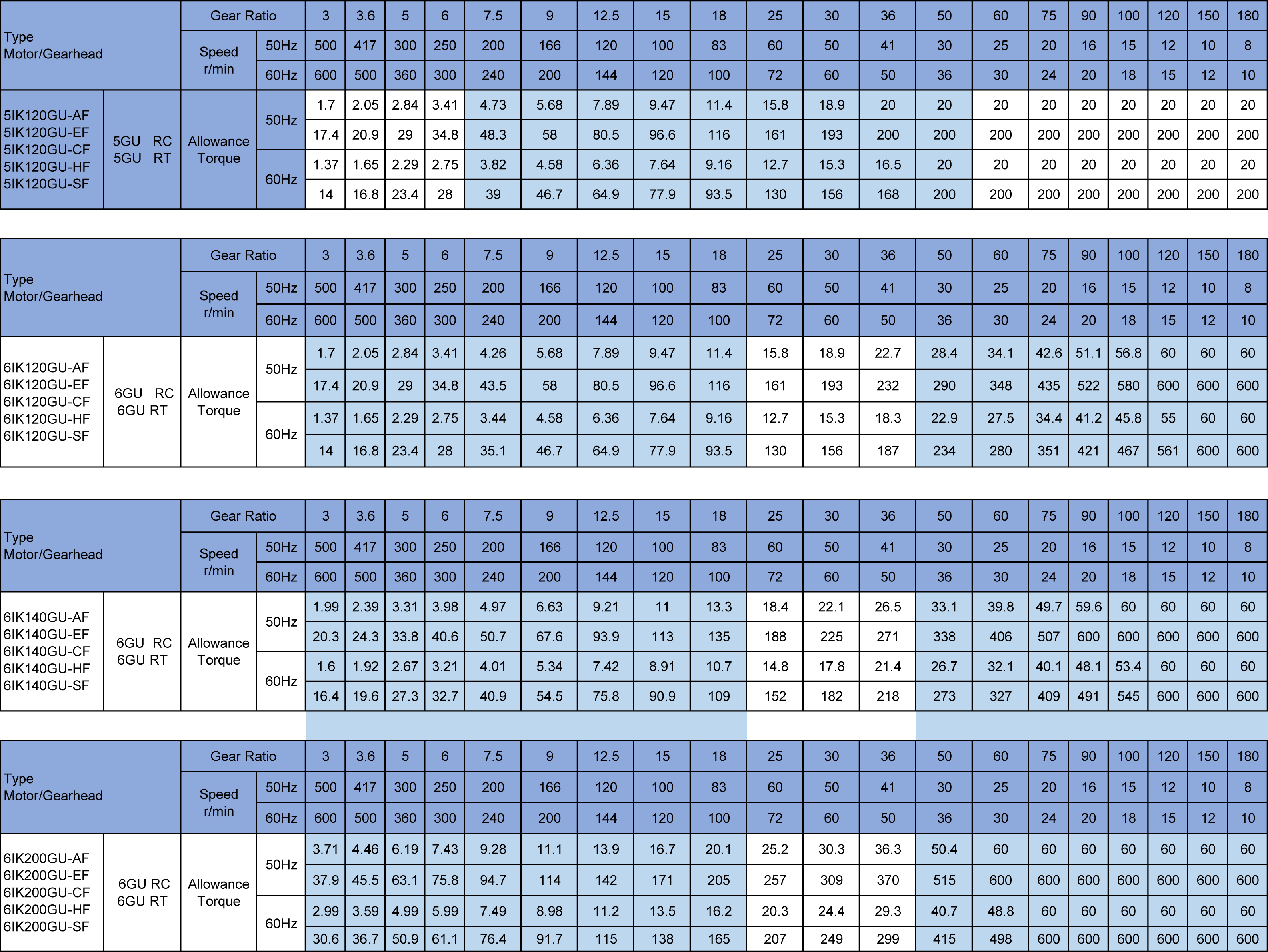

Parameter Chart 2
P

Profile & Factory

Profile Image
Workshop

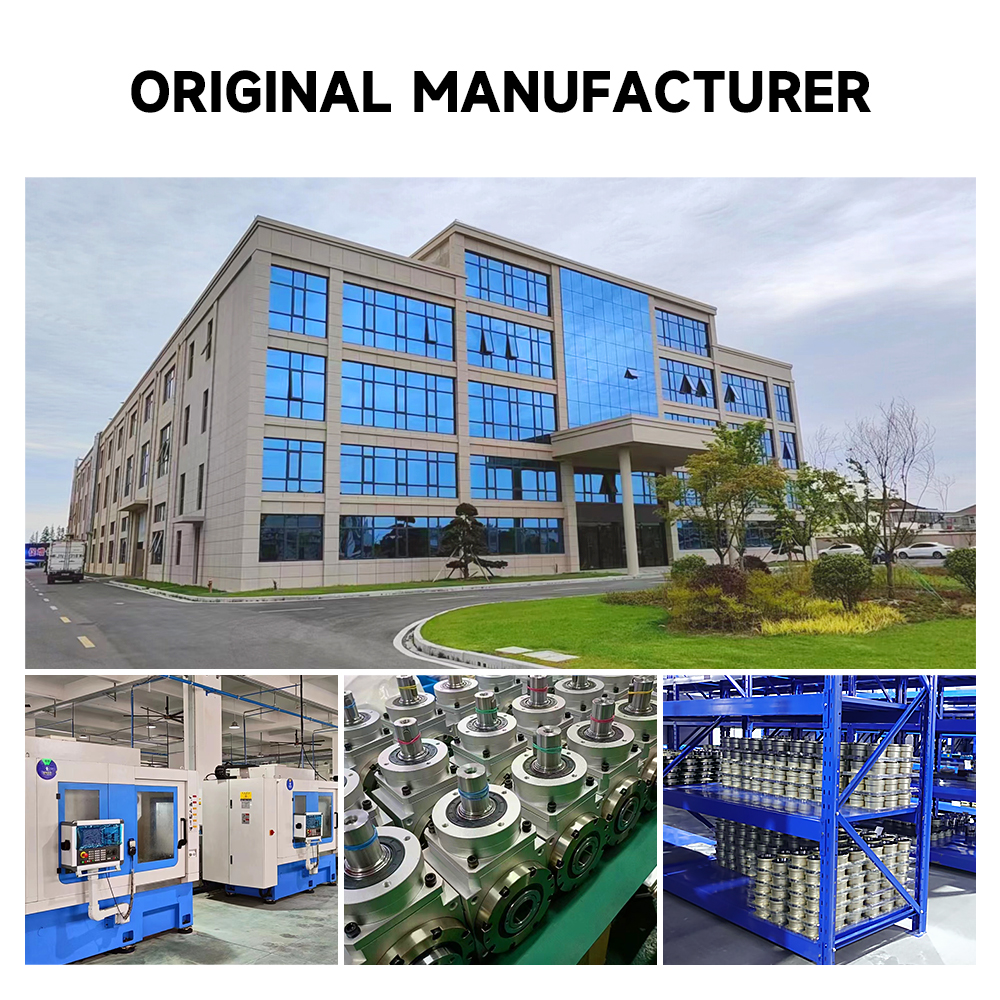

Factory View
Q

Quality & Feedback

Certificate
Customer Feedback
L

Logistics and Payment

Logistics
Global Shipping
?

Frequently Asked Questions

1. What are the main characteristics of a micro induction motor?
A micro induction motor features a simple structure, high efficiency, and the capability for continuous operation. It utilizes electromagnetic coils and a capacitor during startup and throughout its operation.
2. Can I reverse the rotation direction of a single-phase motor immediately?
No, it is not recommended to change the direction while the motor is running due to the reverse torque. You should wait for the motor to come to a complete stop before switching the rotation direction.
3. What are the advantages of a three-phase induction motor?
Three-phase induction motors offer higher efficiency and greater starting torque compared to single-phase versions, making them ideal for demanding unidirectional continuous running applications.
4. What is the power and reduction ratio range available?
Our micro induction motors range from 6W to 250W in power, with available reduction ratios spanning from 5 to 180, suitable for various industrial needs.
5. What type of gear design is used in these motors?
These motors utilize a spiral bevel gear type, which ensures smooth power transmission and durability in various operating conditions.
6. Is the motor suitable for continuous long-term operation?
Yes, these motors are specifically designed for high-efficiency, continuous running, especially in unidirectional applications.
